CD-BA1200H
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
Specifications for this model are subject to change without
prior notice.
SPECIFICATIONS
CD-BA1200H
CP-BA1200H

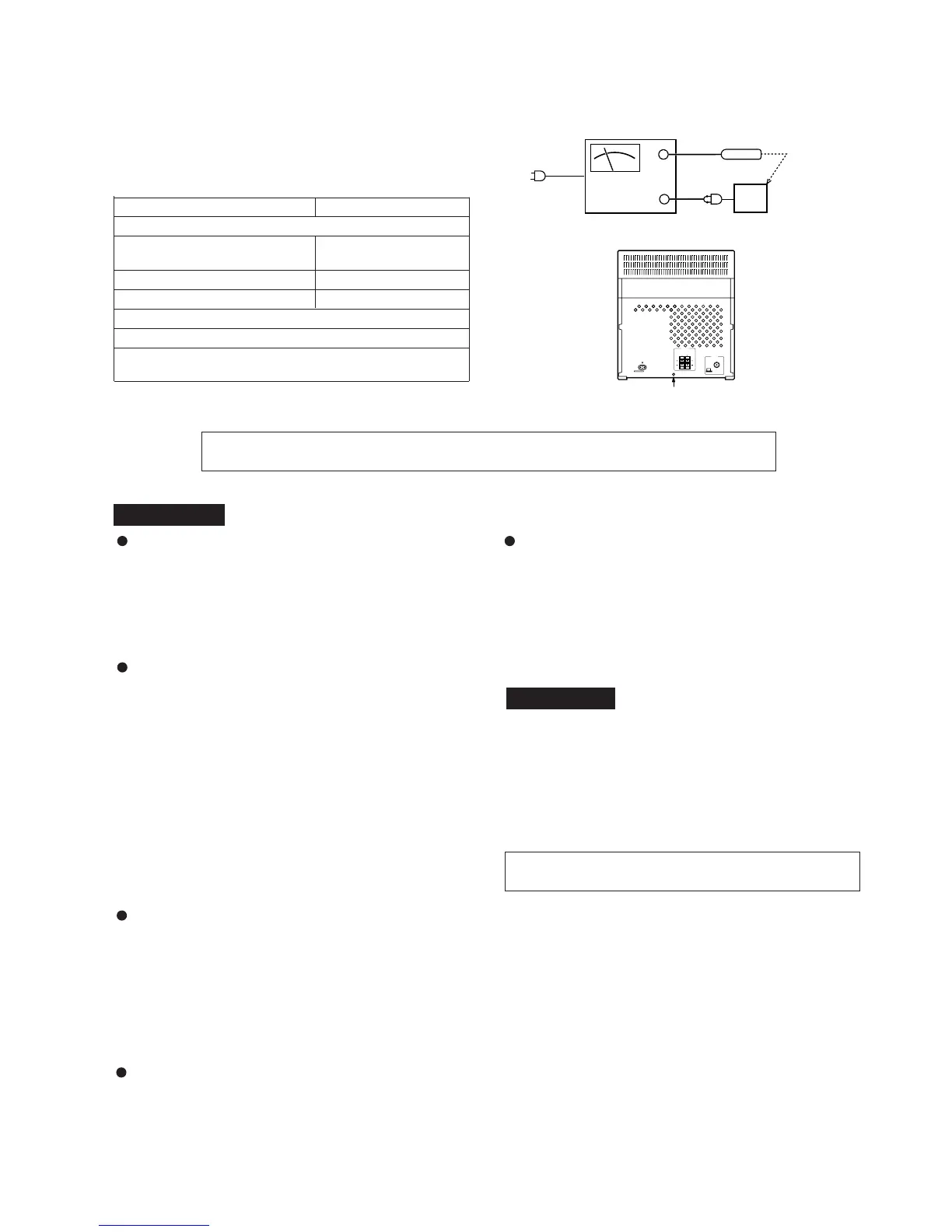

IMPORTANT SERVICE NOTES (FOR U.K. ONLY)
Before returning the unit to the customer after completion of a
repair or adjustment it is necessary for the following withstand
voltage test to be applied to ensure the unit is safe for the
customer to use.
Setting of Withstanding Voltage Tester and set.
Set name set value
Withstanding Voltage Tester
Test voltage 4,240 VPEAK
3,000 VRMS
Set time 6 secs
Set current (Cutoff current) 4 mA
Unit
Judgment
OK: The “GOOD” lamp lights.
NG: The “NG” lamp lights and the buzzer sounds.
SHORT-CIRCUIT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO GND OF CHASSIS
SCREW
PROBE
AC
UNIT
WITHSTANDING
VOLTAGE TESTER
+
-
OUT
General
Power source: AC 230 V, 50 Hz
Power consumption: 32 W
Dimensions: Width; 270 mm (10-5/8")
Height; 300 mm (11-13/16")
Depth; 373 mm (14-11/16")
Weight: 5.0 kg (11.0 lbs.)
Amplifier section
Output power:
(For U.K.)
RMS; 20 W (10 W + 10 W)
(10 % T.H.D.)
(DIN 45 324)
(0.9 % T.H.D.)
RMS; 14.6 W (7.3 W + 7.3 W)
RMS; 20 W (10 W + 10 W)
(DIN 45 324)
(DIN 45 500)
RMS; 14.6 W (7.3 W + 7.3 W)
Output terminals: Speakers; 8 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
Compact disc player section
Type: 3-disc multi-play compact
disc player
Signal readout: Non-contact, 3-beam semi-
conductor laser pickup
D/A converter: 1-bit D/A converter
Frequency
response: 20 - 20,000 Hz
Dynamic range: 90 dB (1 kHz)
Tuner section
Frequency range: FM; 87.5-108 MHz
AM; 522-1,620 kHz
Cassette deck section
Frequency response: 50-14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter:
(For U.K.)
0.3 % (WRMS)
Type: 10 cm (4") full-range speaker
Maximum input power: 20 W
Rated input power: 10 W
Impedance: 8 ohms
Dimensions: Width; 220 mm (8-11/16")
Height; 300 mm (11-13/16")
Depth; 180 mm (7-1/16")
Weight: 2.0 kg (4.4 lbs.)/each
Output power:
(Except For U.K.)
PMPO; 64 W
MPO; 32 W (16 W + 16 W)
Wow and flutter:
(Except For U.K.)
0.35 % (DIN 45 511)
