– 3 –
CD-BA150

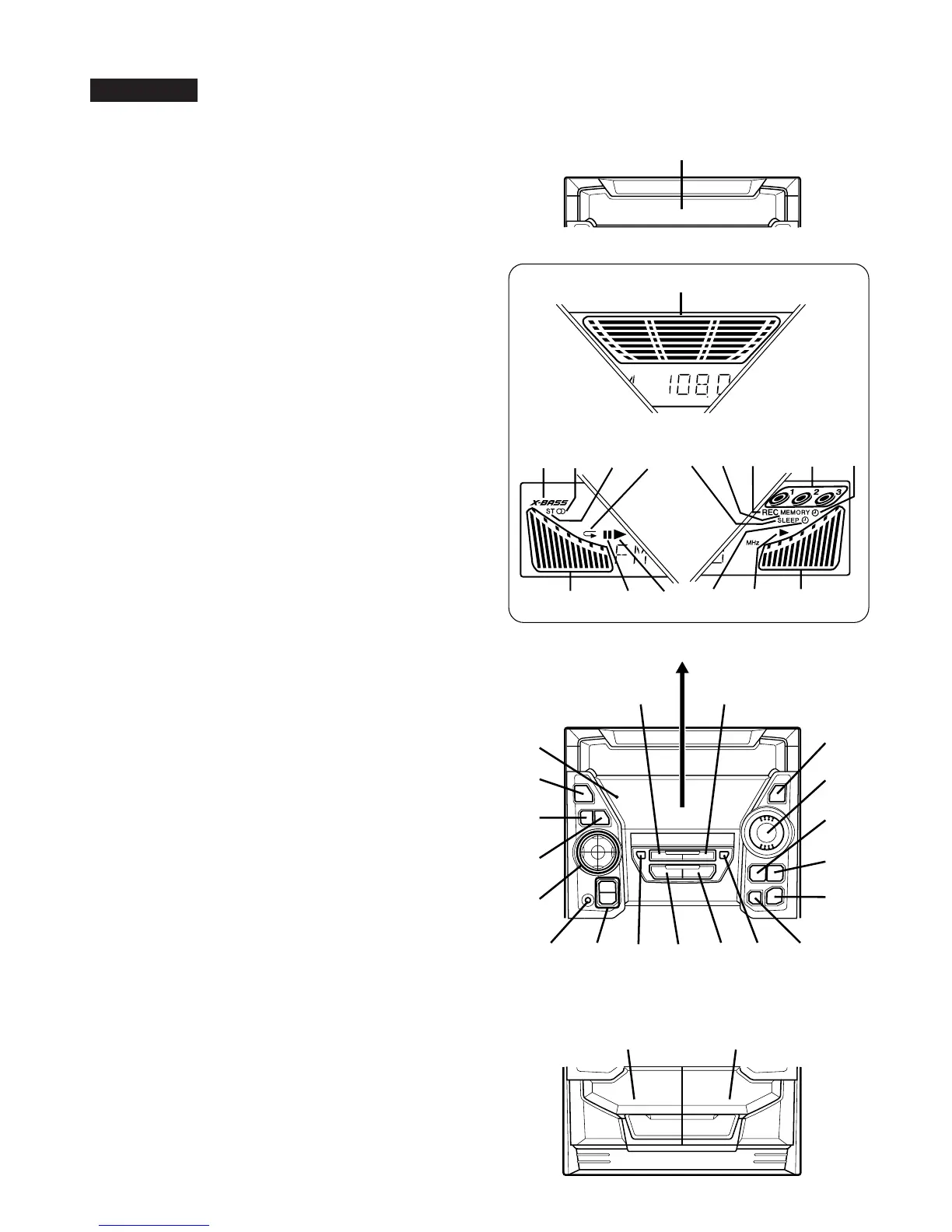

NAMES OF PARTS
CD-BA150
1
2
3
4
5
89
67
10
12 13
14
2
2
15
11
25
17
18
19
20
21
22
23
26
27
28 29 30 31 32 33 34
24
16
35
36
■ Front panel
1.
(CD) Disc Tray
12.
Spectrum Analyzer/Volume Level Indicator
13.
Extra Bass Indicator
14.
FM Stereo Indicator
15.
FM Stereo Mode Indicator
16.
(CD) Repeat Indicator
17.
Sleep Indicator
18.
(CD/TUNER) Memory Indicator
19.
(TAPE 2) Record Indicator
10.
(CD) Disc Number Indicators
11.
Timer Play Indicator
12.
(CD) Pause Indicator
13.
(CD) Play Indicator
14.
Timer Record Indicator
15.
(TAPE) Play Indicator
16.
(CD) Track Down/Review Button
3
(TUNER) Preset Down Button
3
(TAPE 2) Rewind Button
17.
(CD) Track Up/Cue Button
3
(TUNER) Preset Up Button
3
(TAPE 2) Fast Forward Button
18.
Timer Set Indicator
19.
Power On/Stand-by Button
20.
Clock Button
21.
Timer/Sleep Button
22.
Function Selector Buttons
23.
Dimmer Button
24.
Volume Up/Down Buttons
25.
Equalizer Mode Selector Button
26.
Extra Bass/Demo Mode Button
27.
(CD) Open/Close Button
28.
Headphone Socket
29.
Tuning and Time Up/Down Buttons
30.
Memory/Set Button
31.
(CD/TAPE) Stop Button
32.
(CD) Play/Repeat Button
3
(TAPE) Play Button
33.
(TAPE 2) Record Pause Button
34.
(CD) Disc Skip Button
35.
(TAPE 1) Cassette Compartment
36.
(TAPE 2) Cassette Compartment
To Next Page
