CD-BA150
– 9 –

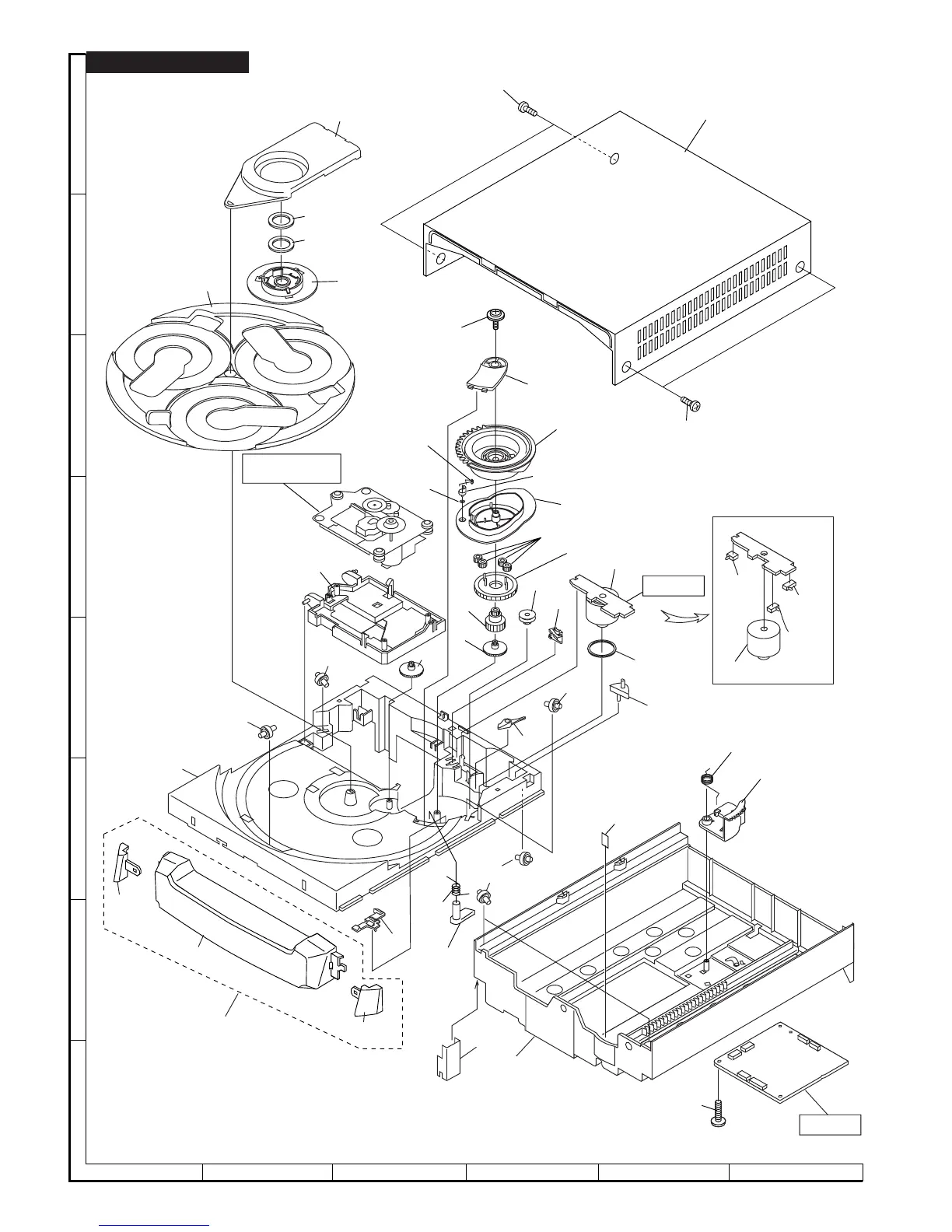

Figure 9 CABINET EXPLODED VIEW (2/2)
A
B
C
D
E
F
G
H
1
23
456
CD-BA150
248
CD
MECHANISM
205
257
235
236
243
224
259
239
239
260
204-2
204-1
204-3
258
269
204
240
239x3
604x2
604x2
250x4
256
247
262
238
241
244
618
251
252
255
249
253
PWB-B
239
254
246
232
263
234
M3
M3
PWB-E
242
SW3
SW2
SW1
619
264
245
55
57
