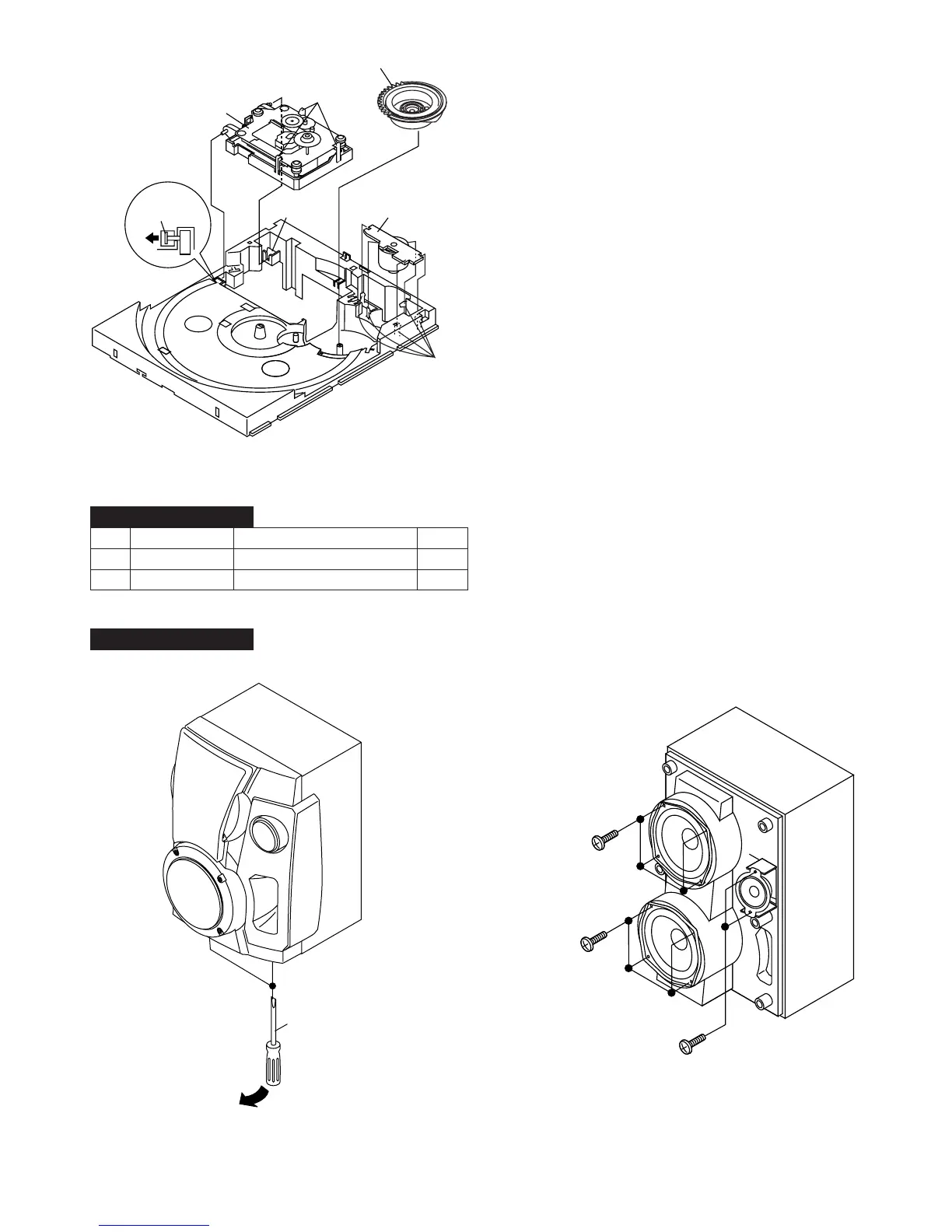

– 9 –
CD-BA150
CP-BA150
1
Woofer
1. Screw
.....................
(B1) x8
9-3
2
Tweeter
1. Screw
....................
(D1) x2
9-3
STEP
REMOVAL
PROCEDURE
FIGURE
CP-BA150
Figure 9-2
Figure 9-1
Figure 9-3
Screw
Driver
Driver should
be pried away
from Speaker
Box.
(D1)x4
ø4x16mm
(D2)x2
ø3x10mm
(D1)x4
ø4x16mm
(M2) x3
(M1) x1
(N1) x5
(M1) x1
Loading
Motor
PWB
CD
Mechanism
Cam Gear
8
10
Table of Contents
Table of Contents
1
Important Service Notes (for U.s.a. Only)
2
Specifications
2
Names of Parts
3
Operation Manual
5
Quick Guide
6
Disassembly
7
Removing and Reinstalling the Main Parts
10
CD Mechanism Section
11
Adjustment
11
Tuner Section
12
Front View
13
Notes on Schematic Diagram
13
Waveforms of CD Circuit
14
Block Diagram
15
Schematic Diagram / Wiring Side of P.w.board
18
Notes on Schematic Diagram
26
Voltage
34
Troubleshooting (CD Section)
35
Function Table of IC
39
Fl Display
45
Parts Guide
47
Packing of the Set (for U.s.a. Only)
58
