Sharp CD-BK250W Service Manual

CD-BK250W/CD-BK2600W/CD-BK270W
– 10 –

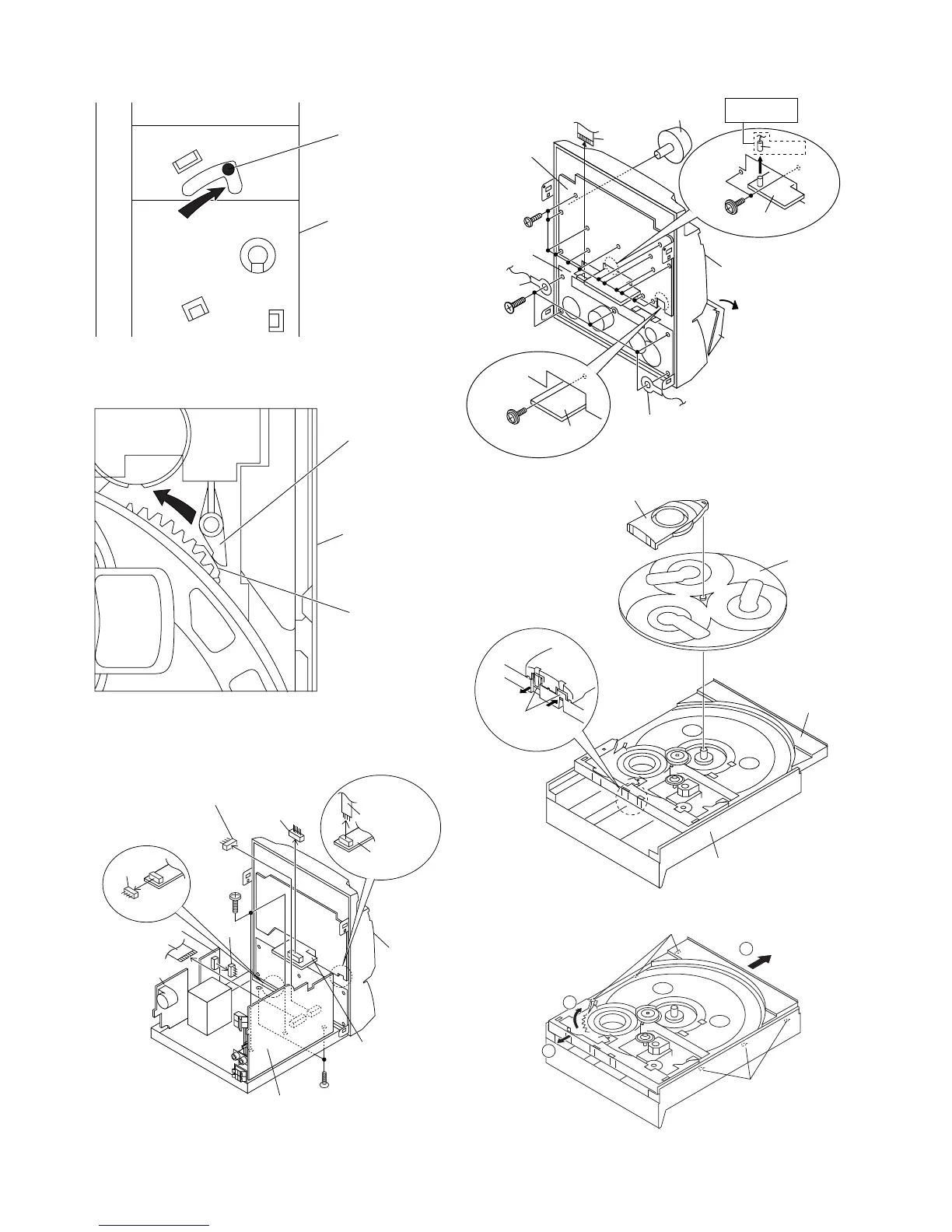

Figure 10-1
Figure 10-2
Figure 10-3
Figure 10-4
Figure 10-5
Figure 10-6
Lock Lever
CD Player Unit
(Bottom View)
Clamp Lever
CD Player Unit
(Top View)
Cam Gear Rib
Transformer
PWB
(E3)x1
Power PWB
(E2)x1
(E1)x2
ø3x10mm
(E2)x1
(E2)x1
(E2)x1
Headphones
PWB
(E4)x1
Mic PWB
Front
Panel
(F1)x2
ø3x8mm
Main PWB
(G3)x1
(G1)x1
(K2)x1
Mic PWB
(K1)x2
ø3x10mm
Open
Cassette
Holder
Lug Wire
Lug Wire
Headphones
PWB
(J1)x1
ø3x10mm
(H1)x5
ø3x10mm
Tape
Mechanism
(G2)x12
ø3x10mm
Display
PWB
CD-BK270W
ONLY
Front
Panel
Turntable
Slide
Chassis
(L2)x1
CD Player Unit
(L1)x2
3
(M1)x3
(M1)x3
1
2
