Sharp CD-BK270W Service Manual

– 11 –
CD-BK250W/CD-BK2600W/CD-BK270W

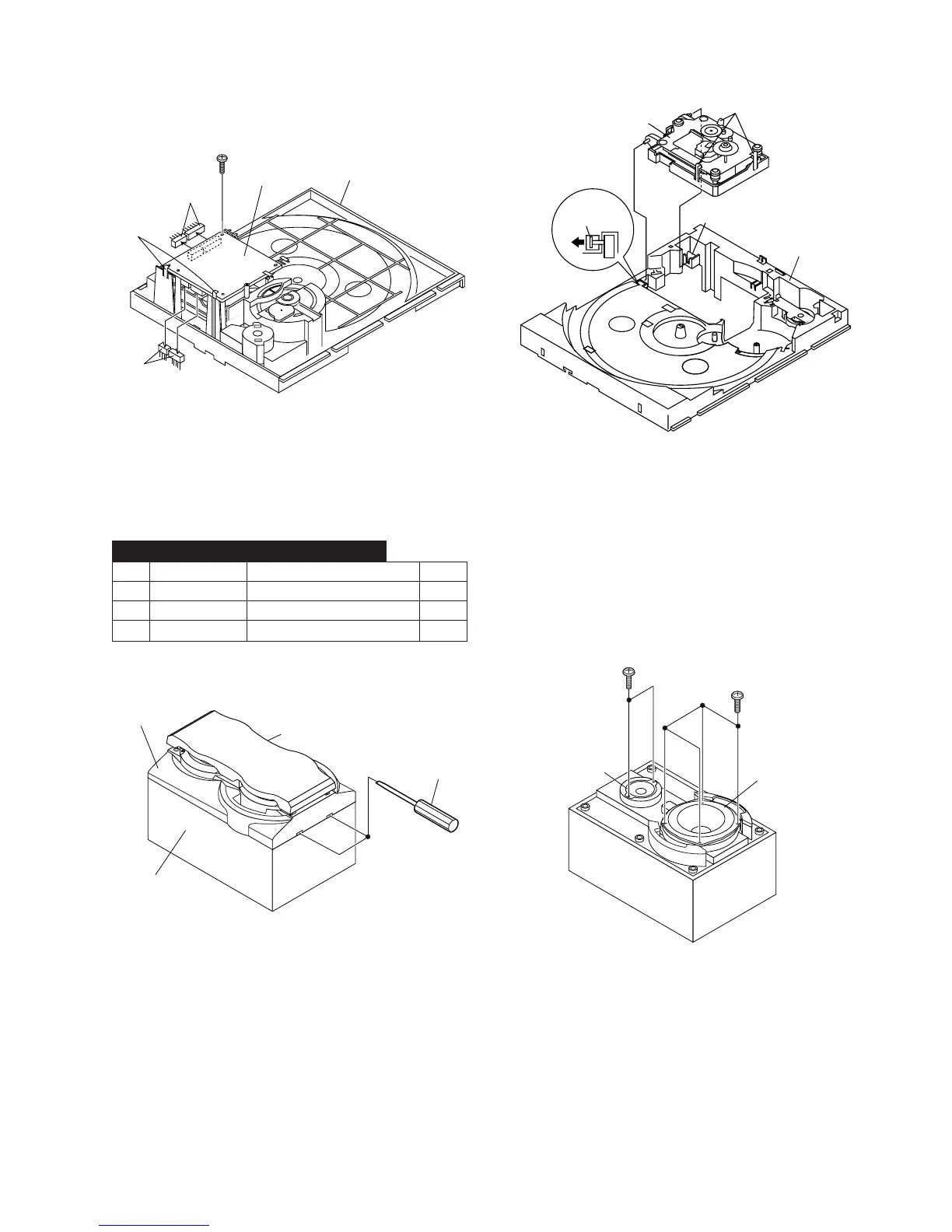

1 Front Panel 1. Net.......................... (A1) x1 11-3
2 Woofer 1. Screw ..................... (B1) x4 11-4
3 Tweeter 1. Screw ..................... (C1) x2 11-4
STEP
REMOVAL PROCEDURE
FIGURE
Figure 11-3
Figure 11-1
CP-BK250/CP-BK2600/CP-BK270
Figure 11-4
(A1)x1
Screwdriver
Driver should
be pried away
from Speaker Box.
Front Panel
Speaker Box
(B1)x4
ø4x12mm
Woofer
(C1)x2
ø3x10mm
Tweeter
Figure 11-2
(N3)x2
(N2)x2
(N3)x2
CD Servo
PWB
Slide
Chassis
(N1)x1
ø3x8mm
(P2)x3
(P1)x1
(P1)x1
CD
Mechanism
Slide
Chassis
