CD-C831W
– 12 –
SW715 VIDEO ON—OFF
SW716 TAPE ON—OFF
SW717 CD ON—OFF
SW721 DISPLAY MODE ON—OFF
SW722 FF ON—OFF
SW723 TUNING UP ON—OFF
SW724 TUNING DOWN ON—OFF
SW725 PLAY ON—OFF
SW726 VOLUME DOWN ON—OFF
SW727 VOLUME UP ON—OFF
SW728 X-BASS/DEMO ON—OFF
SW729 EQUALIZER ON—OFF
SW730 DIMMER ON—OFF
SW801 VOLTAGE SELECTOR 110/127/220/
230–240V
SWM 3 FOOL PROOF ON—OFF
SWM 4 F.A.S. ON—OFF
SWM 5 CAM ON—OFF
SW1 OPEN/CLOSE ON—OFF
SW2 MECHA UP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW601 SPAN SELECTOR
100/10 –50/9
SW701 ON/STAND-BY ON—OFF
SW703 CLOCK ON—OFF
SW704 TIMER/SLEEP ON—OFF
SW705 DISC 1 ON—OFF
SW706 DISC 2 ON—OFF
SW707 DISC 3 ON—OFF
SW708 DISC SKIP ON—OFF
SW709 OPEN/CLOSE ON—OFF
SW710 REV ON—OFF
SW711 REC PAUSE ON—OFF
SW712 MEMORY/SET ON—OFF
SW713 STOP ON—OFF
SW714 TUNER/BAND ON—OFF
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO DESCRIPTION POSITION POSITIONREF. NO DESCRIPTION

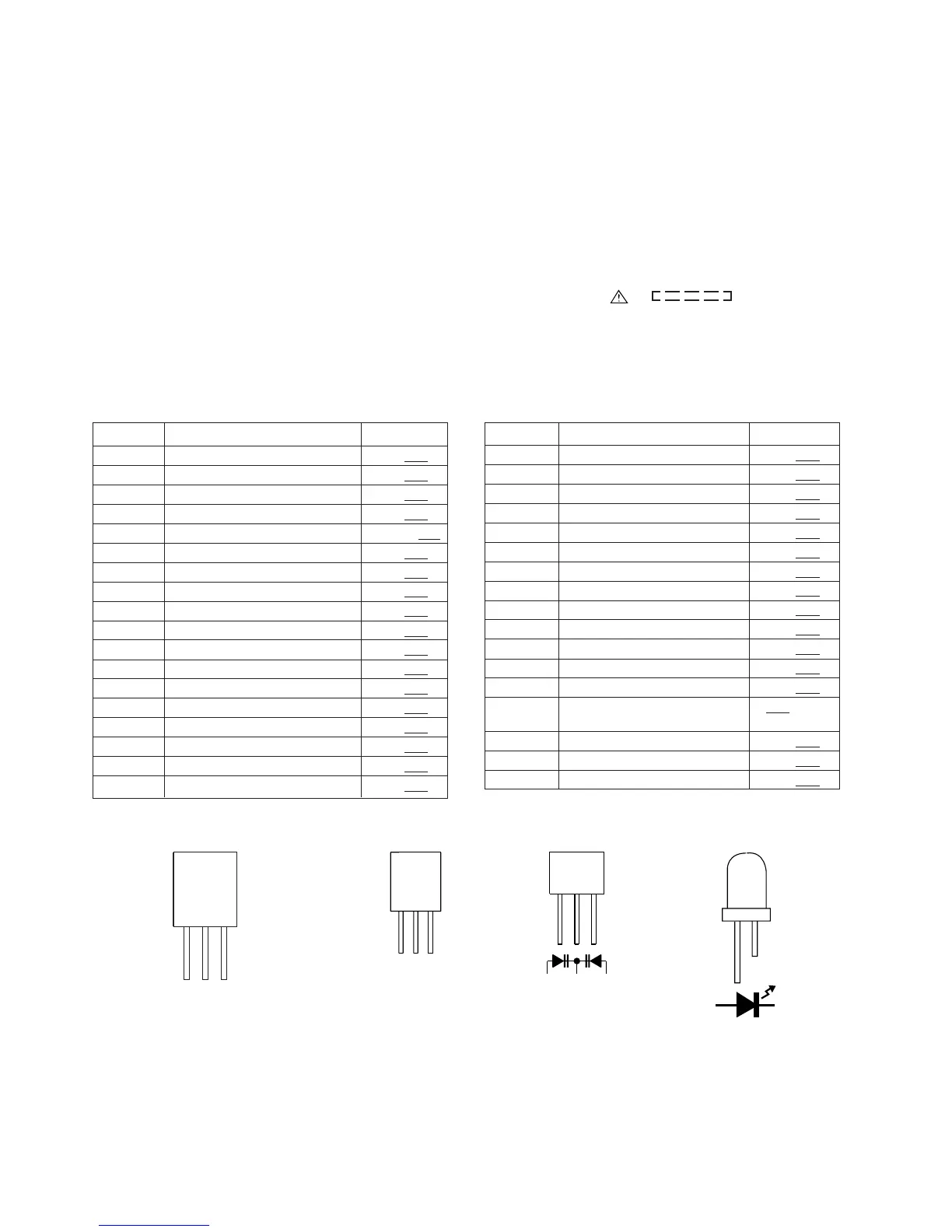

Figure 12 TYPES OF TRANSISTOR AND LED
(1) (2) (3)
(S) (G) (D)
E C B
FRONT
VIEW
2SA1015 GR
2SA1318
2SC2389 SE
2SC3331
KRC102 M
KRC104 M
KRC107 M
KTA1266 GR
KTA1271 Y
KTA1273 Y
KTA1274 Y
KTD2058 Y
KTC3199 GR
KTC3203 Y
L1154GT4
SLI342YCB
SLI342DCB
SLI342UCB
SLI342UCB
SLI342YCJ
2SA1318
SVC348S
FRONT VIEW
FRONT
VIEW
B C E
(D)(G)(S)
(3) (2) (1)
1 2 3
