– 9 –
CD-C831W
CP-C831

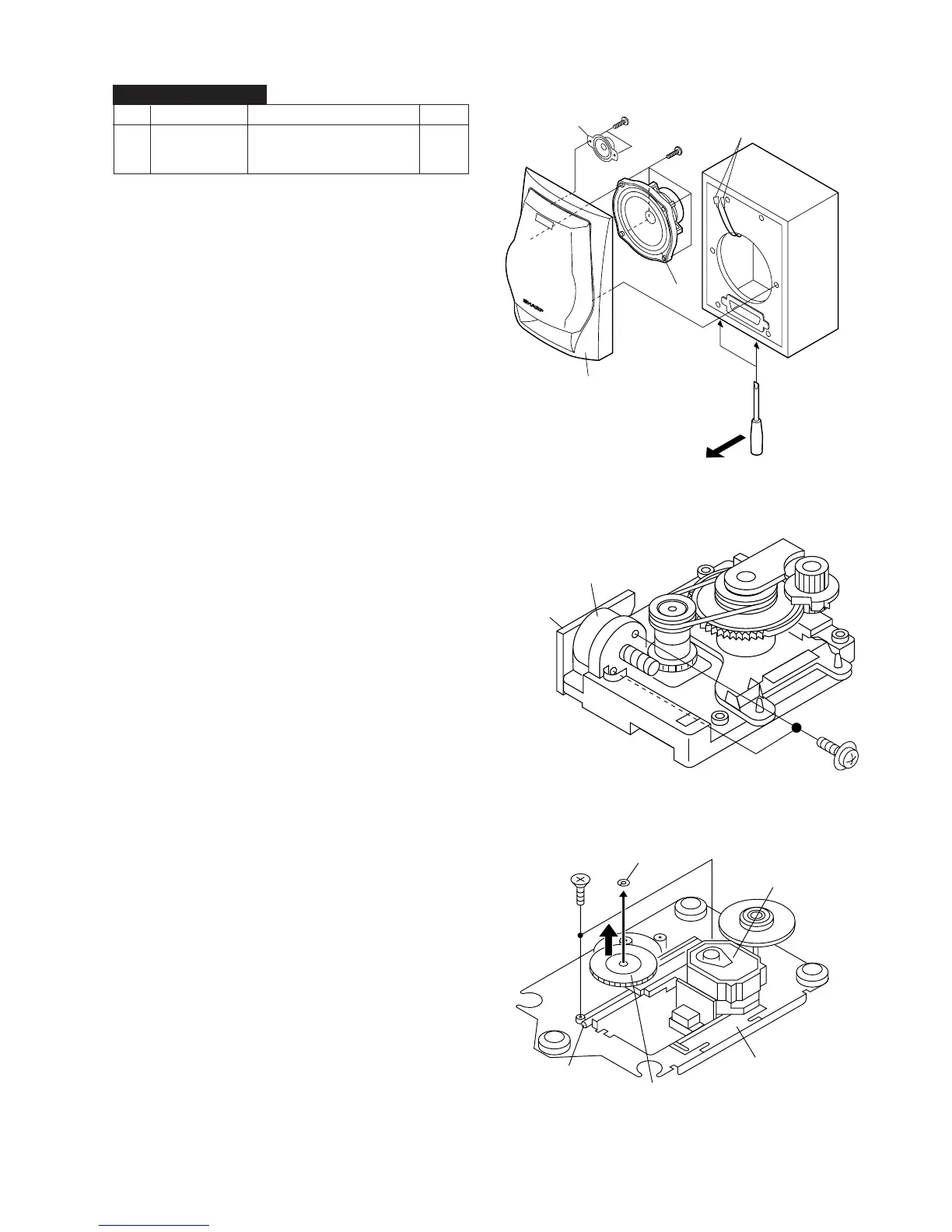

1 Front Speaker 1. Front Panel ............ (A1) x1 9-1
2. Tip .......................... (A2) x2
3. Screw ..................... (A3) x6
STEP REMOVAL
PROCEDURE
FIGURE
Figure 9-1
Note:
The Surround speakers can be easily disassembled.
Therefore the disassembling method is not described.
For details refer to the disassembling drawing in the Parts
Guide.
How to remove the pickup (See Fig. 9-3)
1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2).
2. Remove the stop washer (B3) x 1 pc., to remove the gear
(B4).
3. Remove the pickup.
Figure 9-3
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1, 2, 3, 11, 12, 13, 14 and 15 of the disassembly
method to remove the CD mechanism.
How to remove the loading motor
(See Fig. 9-2)
1. Remove the screws (A1) x 2 pcs., to remove the loading
motor.
Figure 9-2
Note
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector to protect the optical pickup from
electrostatic damage.
To Next Page
