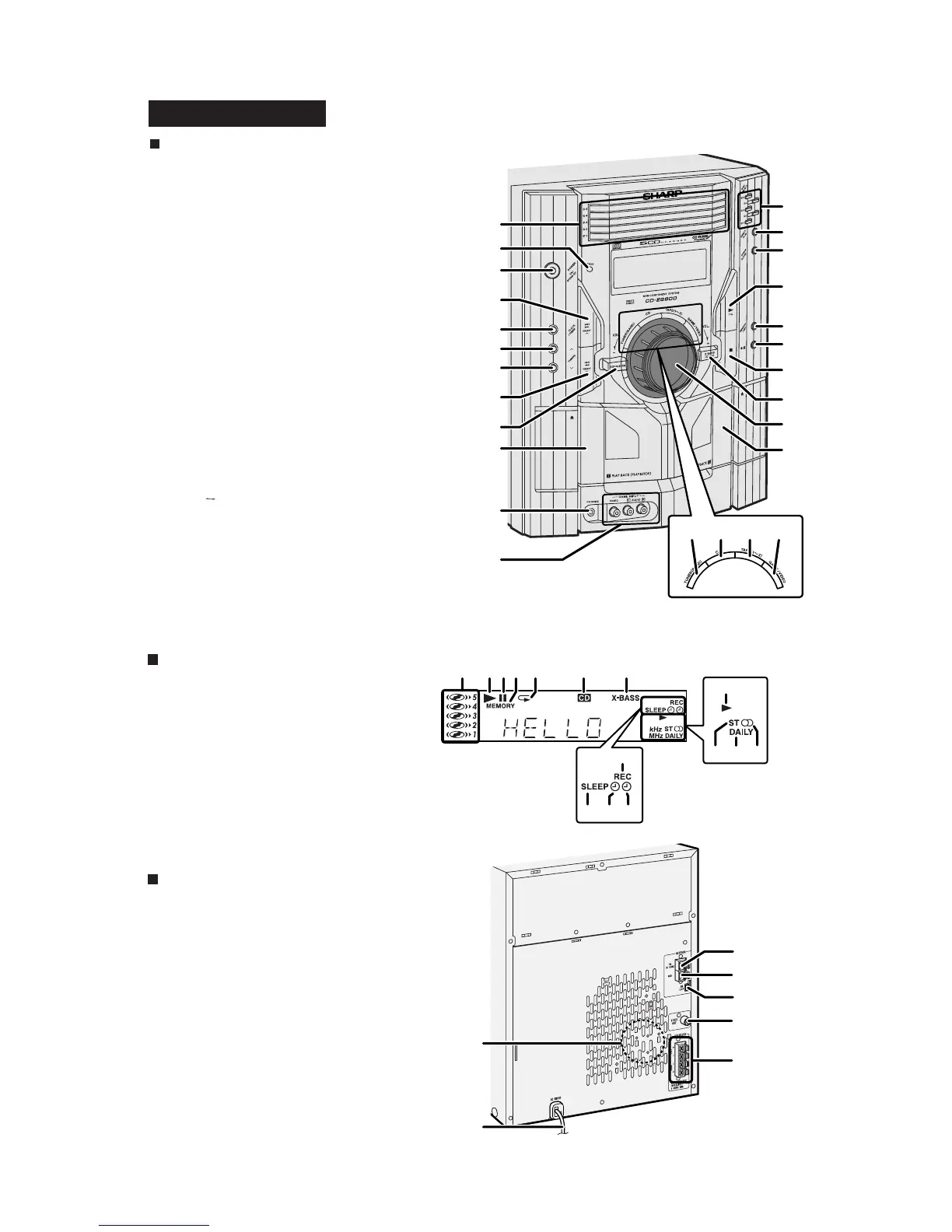

[2] Names of parts
Front panel
1. Disc Trays
2. Timer Indicator
3. Power On/Stand-by Button
4. CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up, Time Up Button
5. Clock/Timer Button
6. Tuning Up Button
7. Tuning Down Button
8. CD Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down, Time Down Button
9. Equalizer Mode Select Button
10. Tape 1 Cassette Compartment
11. Headphone Jack
12. Game/Video Input Jacks
13. Disc Number Select Buttons
14. CD Direct Play Button
15. Disc Tray Open/Close Button
16. CD Play or Repeat, Tape Play Button
17. Memory/Set Button
18. Tape 2 Record Pause Button
19. CD or Tape Stop Button
20. Extra Bass/Demo Mode Button
21. Volume Control
22. Tape 2 Cassette Compartment
23. Tuner (Band) Button
24. CD Button
25. Tape (1 2) Button
26. Game/Video Button
1
13
15
21
16
17
19
20
3
2
5
6
7
22
14
18
11
8
12
4
9
10
24 25 2623
Display
1. Disc Number Indicators
2. CD Play Indicator
3. CD Pause Indicator
4. Memory Indicator
5. CD Repeat Play Indicator
6. CD Indicator
7. Extra Bass Indicator
8. Tape Play Indicator
9. FM Stereo Mode Indicator
10. Daily Timer Indicator
11. FM Stereo Receiving Indicator
12. Tape 2 Record Indicator
13. Sleep Indicator
14. Timer Play Indicator
15. Timer Recording Indicator
Rear panel
1. Cooling Fan
2. AC Power Cord
3. FM 75 Ohms Antenna Terminal
4. FM Antenna Ground Terminal
5. AM Loop Aerial Jack
6. Video Output Jack
7. Speaker Terminals
1
5
3
6
4
7
8
76321 4 5
13 14 15
10911
12
2
