CD-ES600/CD-ES66
3 – 1
CD-ES600/CD-ES66Service ManualCD-ES600/CD-ES66MarketE

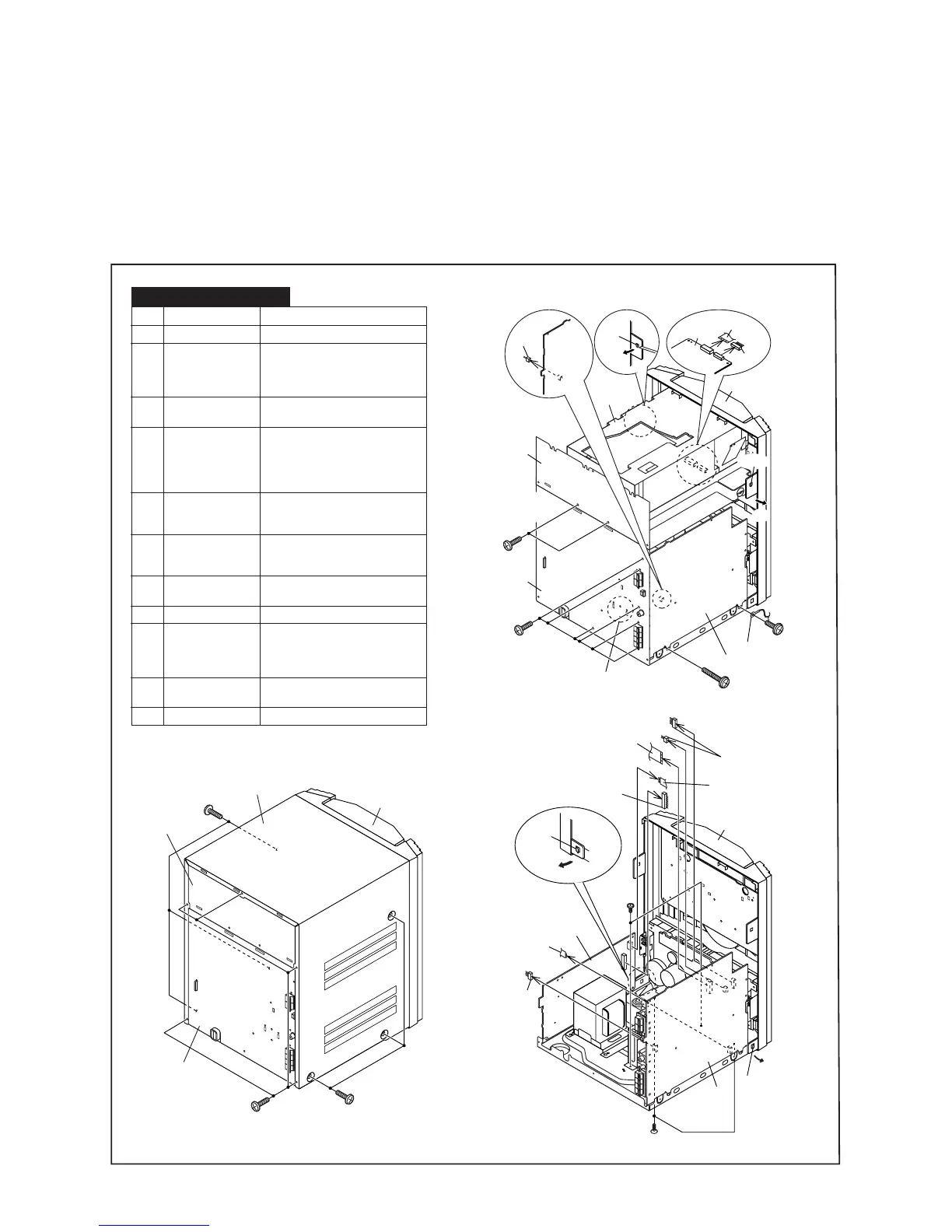

CHAPTER 3. MECHANISM BLOCKS
[1] Caution on diassembly
Caution on Disassembly
Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to be removed when disassembling the unit. After servicing the unit, be sure to rearrange
the leads where they were before disassembling.
1 Top/Side Cabinet 1. Screw .................... (A1) x11
2 Changer Unit/ 1. Screw ...................... (B1) x2
Rear Panel B 2. Hook ........................ (B2) x2
3. Flat Cable................ (B3) x1
4. Socket ..................... (B4) x1
3
Rear Panel A with
1. Screw ...................... (C1) x6
Fan motor 2. Socket ..................... (C2) x1
4 Main PWB 1. Screw ...................... (D1) x2
2. Flat Cable ............... (D2) x1
3. Socket ..................... (D3) x4
4. Flat Wire .................. (D4) x1
5. Screw ...................... (D5) x2
5 Front Panel 1. Screw ...................... (E1) x2
2. Flat Wire .................. (E2) x1
3. Hook ........................ (E3) x2
6 Tape Mechanism 1. Open t he Ca ssette Cover.
2. Screw .......................(F1) x6
3. Flat Cable ................(F2) x1
7 Display PWB 1. Knob ........................ (G1) x1
2. Screw .................... (G2) x10
8 Game Input PWB 1. Screw...................... (H1) x2
9 CD Servo PWB 1. Screw ....................... (J1) x3
2. Flat Cable ................ (J2) x2
3. Socket ...................... (J3) x1
4. Hook ......................... (J4) x1
10 Changer 1. Screw ...................... (K1) x4
Mechanism Unit 2. Changer Chassis .... (K2) x1
11 CD Mechanism 1. Screw ....................... (L1) x4
STEP
REMOVAL PROCEDURE
CD-ES600/CD-ES66
(A1)x5
φ3x10mm
(A1)x3
φ3x10mm
(A1)x3
φ3x10mm
Rear Panel A
Top/Side Cabinet
Front Panel
Rear Panel B
(D1)x1
φ3x18mm
(D1)x1
φ3x10mm
(B1)x2
φ3x10mm
(C1)x6
φ3x10mm
Front Panel
Main PWB
Main PWB
(C2)x1
(B2)x1
(B2)x1
Lug Wire
(B3)x1
(B4)x1
Changer
Mechanism
Unit
Rear
Panel A
Rear
Panel B
Fan Motor
Pull
Pull
CD Servo
PWB
(D5)x2
φ3x10mm
(E1)x2
φ3x8mm
(D3)x1
(D4)x1
(D3)x1
(E2)x1
(D3)x2
Front Panel
Main
PWB
Power PWB
(E3)x1
(E3)x1
(D2)x1
