CD-ES600/CD-ES66
3 – 5
2. CD MECHANISM SECTION
Perform steps 1, 2, 9, 10 and 11 of the disassembly method to remove
the CD mechanism.

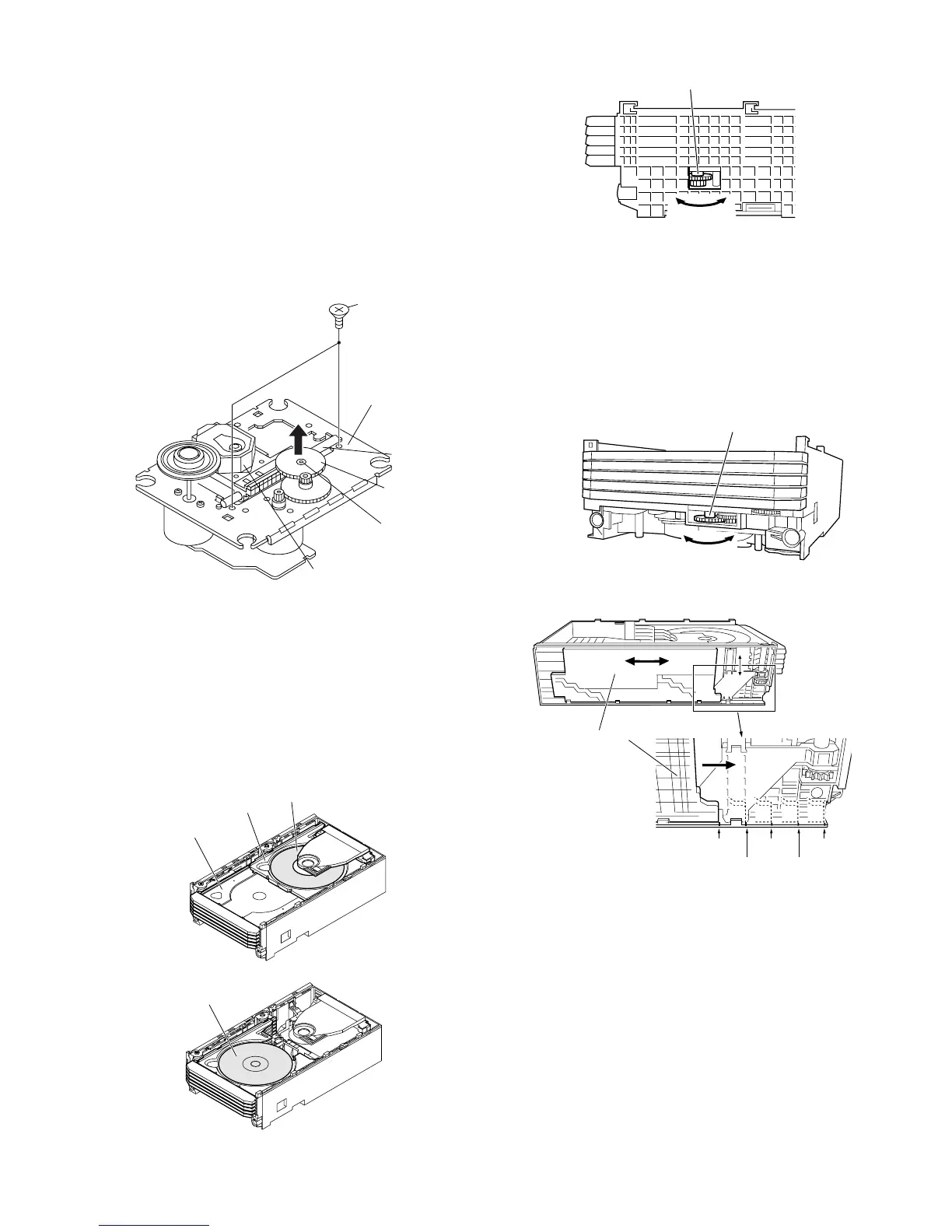

2.1. Remove the pickup. (See Fig. 1)
1. Remove the stop washer (A1) x 1 pc., to remove the gear (A2) x 1
pc.
2. Remove the screws (A3) x 2 pcs., to remove the shaft (A4) x 1 pc.
3. Remove the pickup.
Note
After removing the connector for the optical pickup from the connector
wrap the conductive aluminium foil around the front end of connector
so as to protect the optical pickup from electrostatic damage.
Figure 1
3. CHANGER MECHANISM SECTION
Perform steps 1, 2, 9, 10 and 11 of the disassembly method to remove
the CD changer mechanism.
3.1. How to remove CD Disc (See Fig. 2~5)
1. When CD is at play position (Figure 2), rotate reduction gear C
clock-wise as shown in Figure 3 Until disc tray is at stalk position,
then rotate further to eject the disc tray that CD can be removed
from the tray.
Figure 2
Figure 3
2. In another case, if CD mechanism is at tray No.1 play position and
to remove CD located in tray No.3, the procedure is as follows:
If the gear up down board is located at tray No.1 position, then
rotate gear clock-wise until it at stalk position. Rotate reduction gear
D (Figure4) to move the CD mechanism to tray No.3 position.This is
confirmed by checking the gear up down board position by the
marking as indicated on the main chassis as shown in Figure 5.
Figure 4
Figure 5
Pickup Unit
(A3)x2
φ2.6x6mm
CD Mechanism
Shaft
(A4)x1
Gear
(A2)x1
Stop Washer
(A1)x1
CD Disc
CD At play position.
Disc Tray
Guide Tray
CD Disc
CD At stalk position.
Reduction gear C
Front Rear
Reduction gear D
Up Down
Mark 1
(DISC 1)
(DISC 2)
(DISC 3)
(DISC 4)
(DISC 5)
Gear up down board
Mark 3 Mark 5
Mark 2 Mark 4
