CD-ES600/CD-ES66
3 – 6
3.2. How to Remove the tray motor/main cam motor/5-
Changer Motor PWB (See Fig. 1)
1. Remove the screws (A1)x 2 pcs., to remove tray motor/main cam
motor/5-Changer Motor PWB.

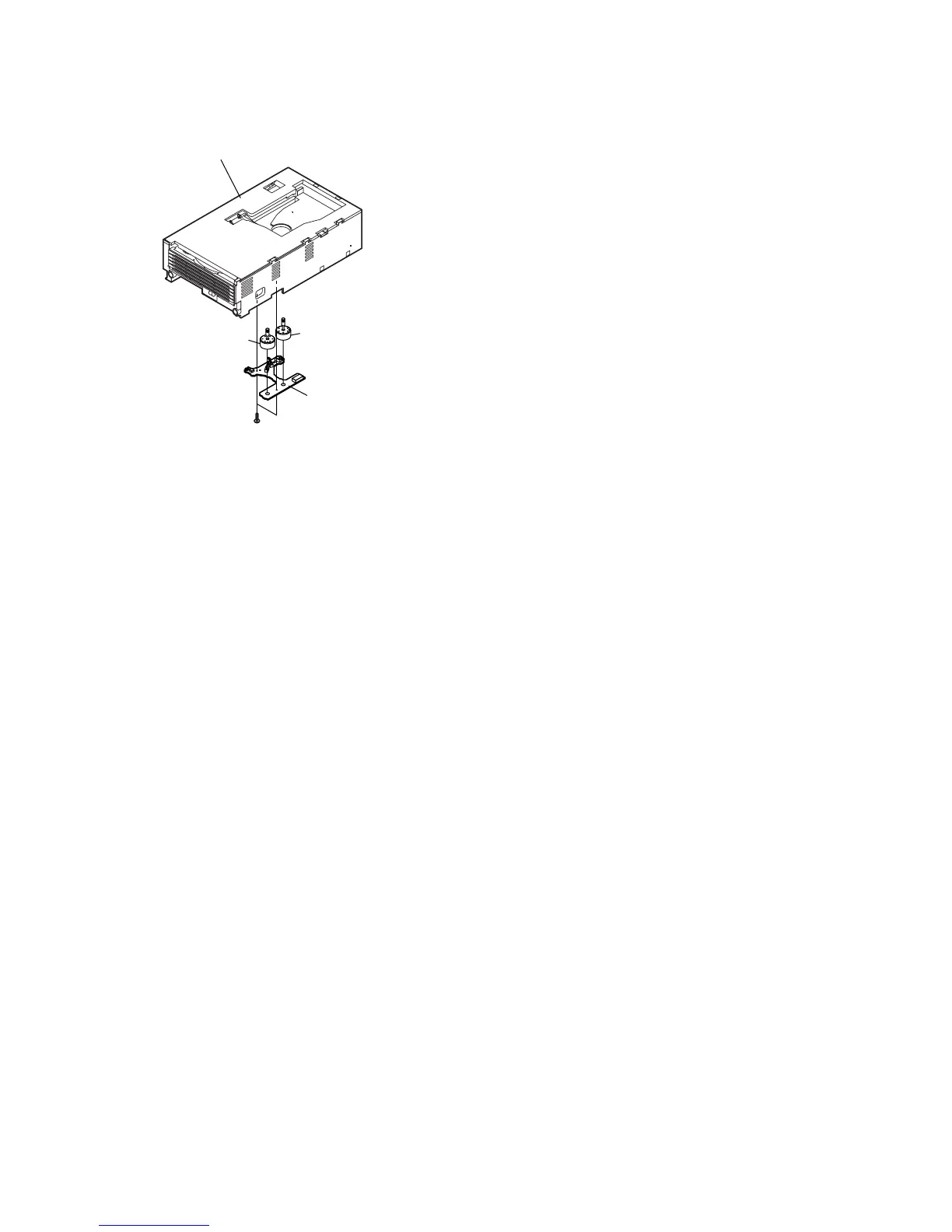

Figure 1
5-Changer
Motor PWB
Tray Motor
Changer Mechanism Unit
Main Cam Motor
(A1)x2
φ2x10mm
