Sharp CD-K491W User Manual

CD-K491W
– 10 –
CP-K491
1 Front Speaker 1. Net.......................... (A1) x1 10-2
2. Baffle Board ........... (A2) x1
3. Screw ..................... (A3) x2
4. Screw ..................... (A4) x4
5. Screw ..................... (A5) x2
STEP REMOVAL
PROCEDURE
FIGURE
CP-K491

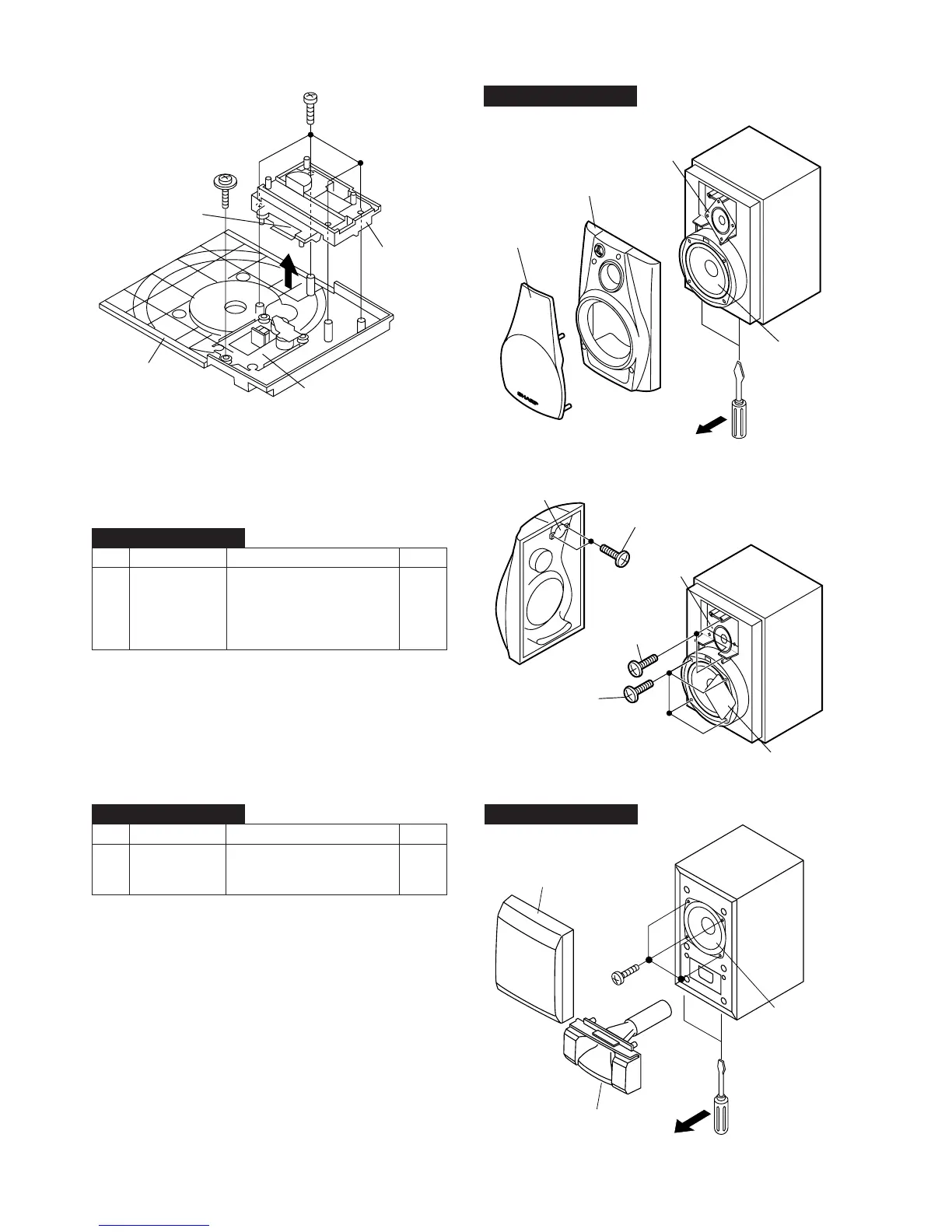

Figure 10-2
CP-SW491
Figure 10-3
CP-SW491
1 Sub woofer 1. Net.......................... (A1) x1 10-3
2. Duct Panel ............. (A2) x1
3. Screw ..................... (A3) x4
STEP REMOVAL PROCEDURE FIGURE
Note:
The center and rear speakers can be easily disassembled.
Therefore the disassembling method is not discribed.
For details refer to the disassembling drawing in the Parts
Guide.
Be careful when installing the CD changer mechanism.
Install the CD changer mechanism on the CD player base after
the shift lever has been set in the highest position.
Figure 10-1
( U1 ) x4
ø3 x12mm
( V1 ) x1
ø2.6 x10mm
CD Changer
Mechanism
CD Mechanism
Shift Lever
CD Player Base
Screw driver
Woofer
Woofer
Net
(A1)x1
Baffle Board
(A2)x1
Tweeter
Tweeter
Super
Tweeter
(A5)x2
ø3x10mm
(A3)x2
ø3x10mm
(A4)x4
ø4x16mm
( A3 ) x4
ø4 x16mm
Net
( A1 ) x1
( A2 ) x1
Screwdriver
Woofer
