– 109 –
CD-MD3000H/CD-MD3000W
WIRING OF PRIMARIL
Y SUPPL
Y LEADS (CD-MD3000H FOR U.K. ONL
Y)
If any one of the bands shown in Figure 109 is removed some
reason, be sure replace it to the original position and same
appearance as before.

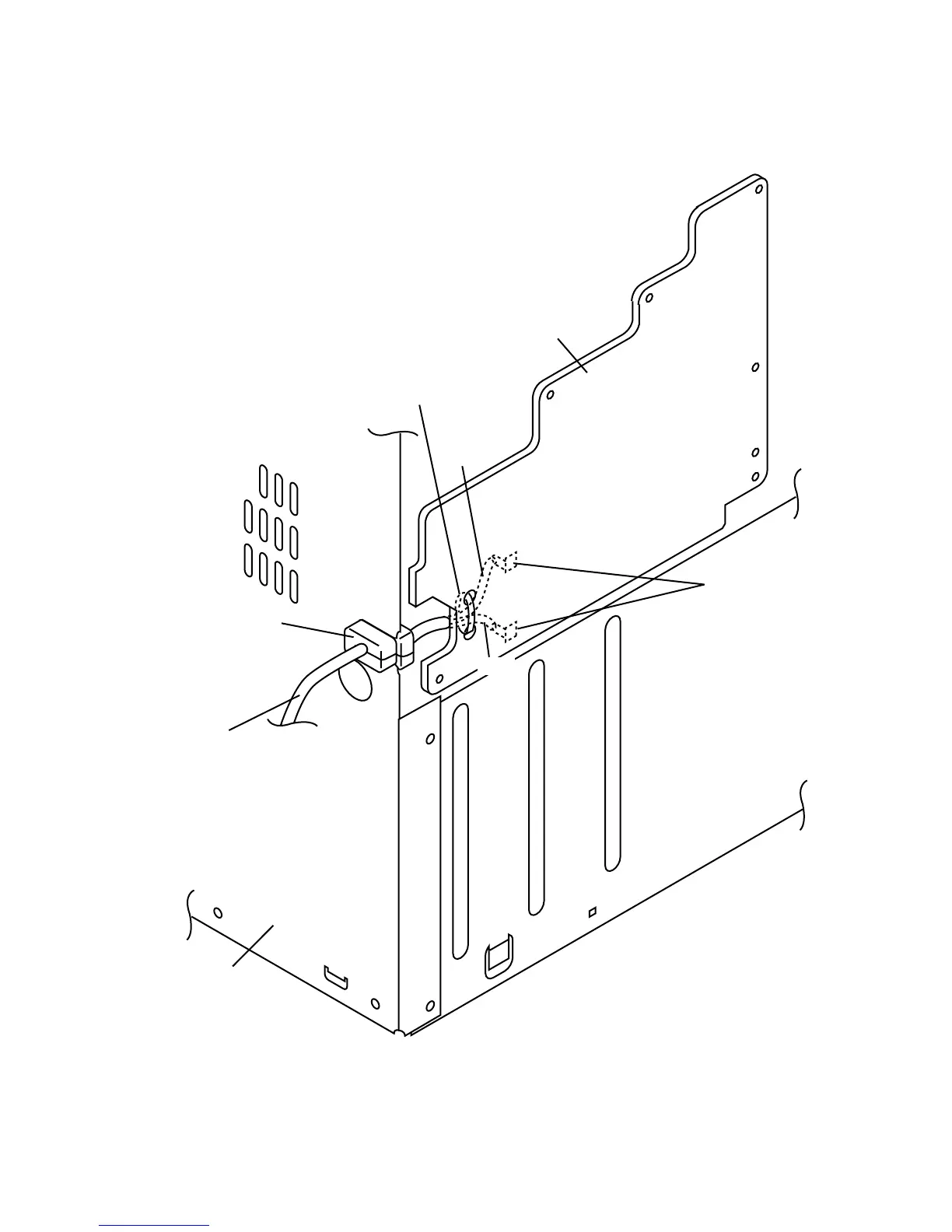

Figure 109
Nylon Band(233)
92LNBAND1318A
Rear Panel
Sub Trans PWB
Lug Terminal(243)
92LLUG1746A
Bushing(216)
LBSHC0002AWZZ
Browm
Blue
AC Power Supply Cord(239)
QACCE0010AW00
108
110
