CD-SW200
3 – 1
AudioCD-SW200Service ManualCD-SW200MarketE
CHAPTER 3. MECHANISM BLOCKS
[1] Caution on diassembly
Caution on Disassembly
Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to be removed when disassembling the unit. After servicing the unit, be sure to rearrange
the leads where they were before disassembling.
1 Top/Side Cabinet 1. S crew .................... (A1) x14
2 Changer Unit/ 1. Screw ...................... (B1) x2
Rear Panel B 2. Hook ........................ (B2) x2
3. Flat Cable................ (B3) x1
4. Socket ..................... (B4) x2
3
Rear Panel A with
1. Screw .................... (C1) x10
Fan motor 2. Socket ..................... (C2) x1
4 Main/Tuner PWB 1. Screw ...................... (D1) x2
2. Flat Cable ............... (D2) x1
3. Socket ..................... (D3) x4
4. Flat Wire .................. (D4) x1
5. Screw ...................... (D5) x5
5 Front Panel 1. Screw ...................... (E1) x2
2. Flat Wire .................. (E2) x1
3. Hook ........................
........................
(E3) x2
6 Tape Mechanism 1. O pen the ca ss et te C ov er
2. Screw ....................... (F1) x6
3. Flat Cable ................(F2) x1
3. Hook (G3) x5
7 Display PWB 1. Knob ........................ (G1) x1
2. Screw .................... (G2) x10
8 Game Input PWB 1. Screw...................... (H1) x2
9 CD Servo PWB 1. Screw ....................... (J1) x3
2. Flat Cable ................ (J2) x2
3. Socket ...................... (J3) x1
4. Hook ......................... (J4) x1
10 Changer 1. Screw ...................... (K1) x4
Mechanism Unit 2. Changer Chassis .... (K2) x1
11 CD Mechanism 1. Screw ....................... (L1) x4

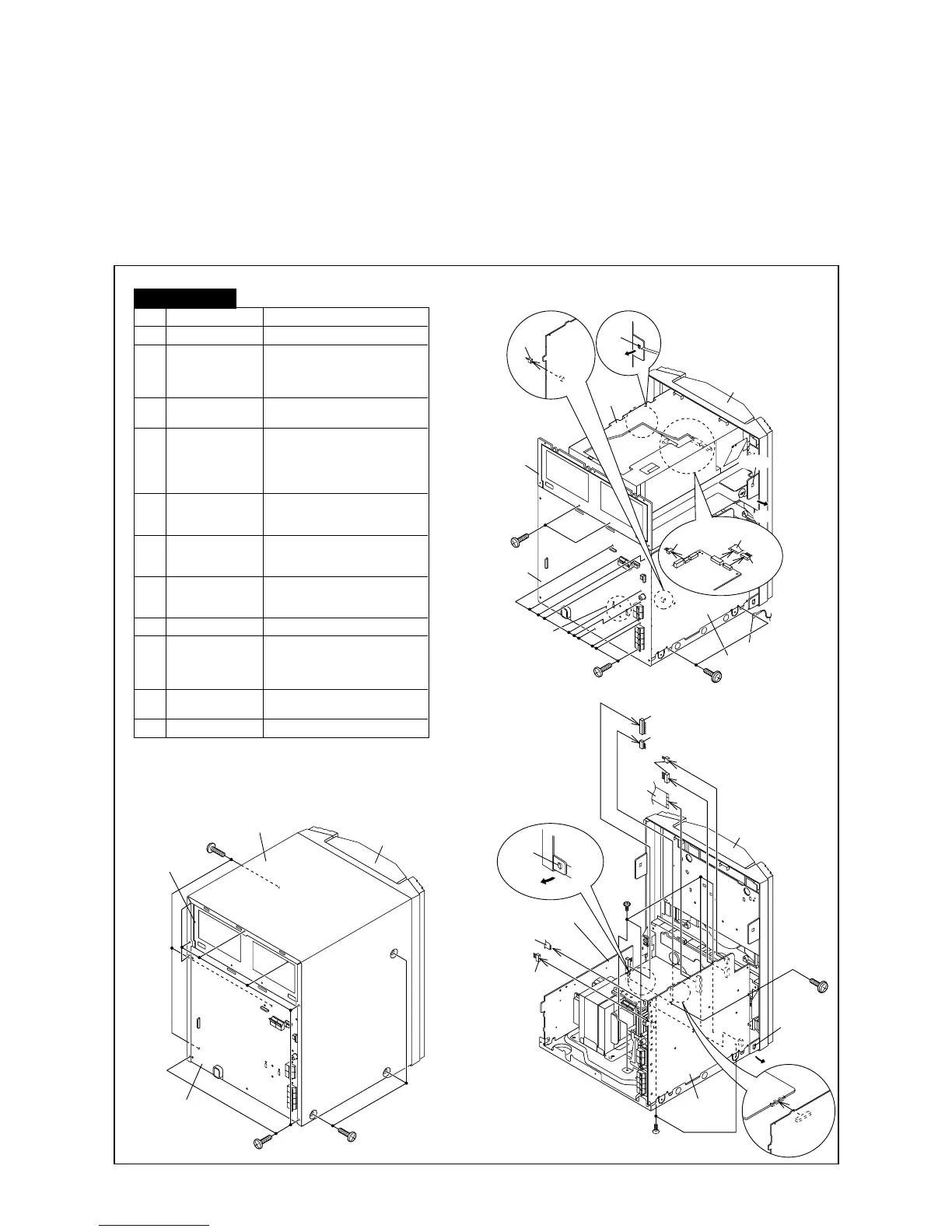

REMOVAL PROCEDURE
CD-SW200
(E3)x1
Power PWB
(D5)x4
M3x10mm
(D5)x1
M3x10mm
(D3)x1
(D4)x1
(D3)x1
(E2)x1
Front Panel
(D3)x2
(D2)x1
(E1)x2
M3x8mm
Main
PWB
(E3)x1
Main
PWB
Tuner
PWB
Main PWB
(C2)x1
Changer
Mechanism
Unit
(B2)x1
Pull
Front Panel
(B2)x1
Pull
(B3)x1
(B4)x1
(B4)x1
CD Servo
PWB
Main PWB
Lug Wire
(D1)x2
M3x10mm
Fan Motor
(C1)x10
M3x10mm
(B1)x2
M3x10mm
Rear
Panel A
Rear
Panel B
(A1)x8
M3x10mm
(A1)x3
M3x10mm
(A1)x3
M3x10mm
Rear Panel A
Top/Side Cabinet
Front Panel
Rear Panel B
Note 1:
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of the connector so as to protect the optical
pickup from electrostatic damage.
