Sharp CD-SW200 Service Manual

CD-SW200
3 – 3
1 Woofer (A1) x1
2. Screw (A2) x4
......................
1. Front Panel .............
2 Tweeter 1. Screw ...................... (B1) x2
3 Super Tweeter 1. Screw ...................... (C1) x2

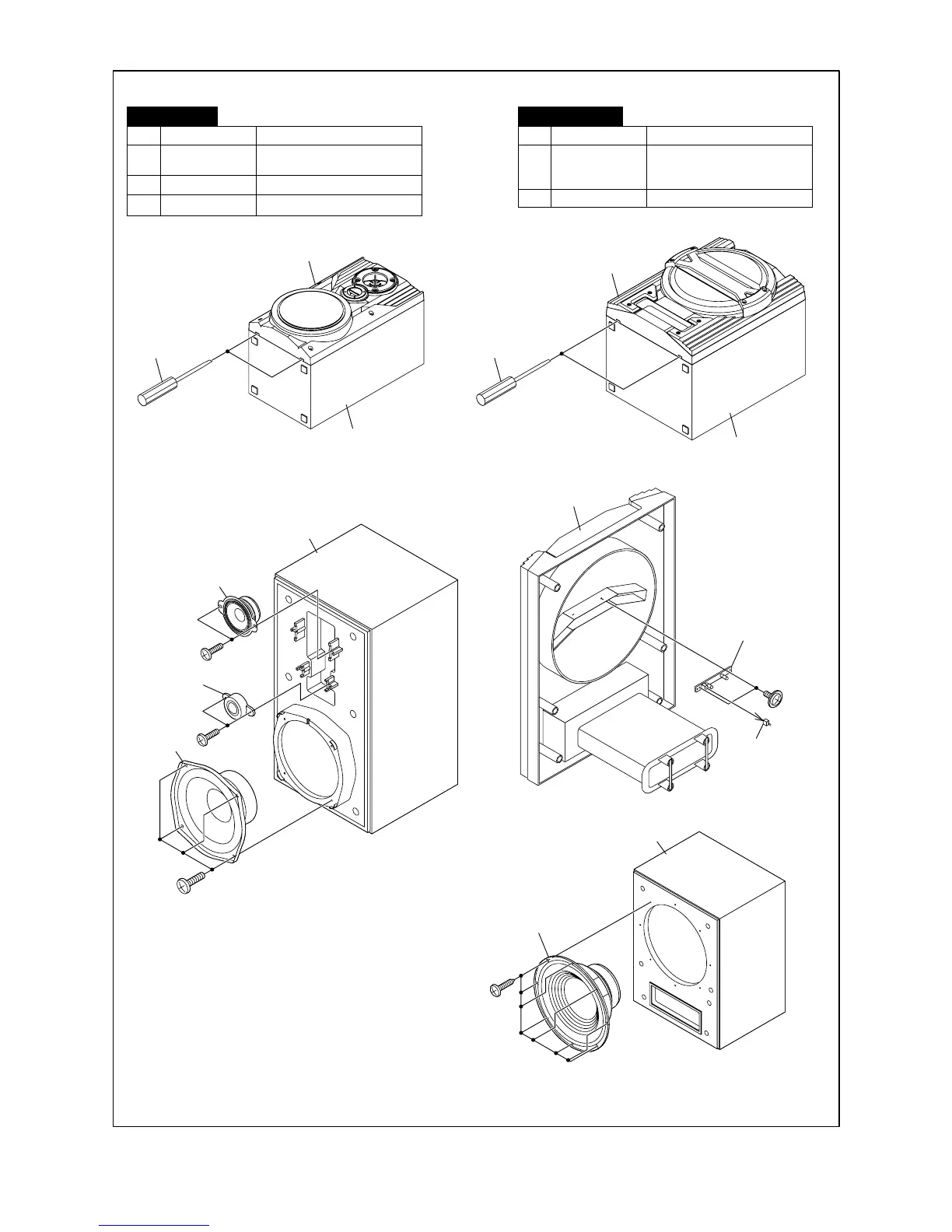

STEP
REMOVAL PROCEDURE
CP-S200
1 LED PWB (A1) x1
3. Screw (A3) x2
......................
2. Socket (A2) x1
....................
1. Front Panel .............
2 Woofer 1. Screw ...................... (B1) x8
STEP
REMOVAL PROCEDURE
CP-SW200
Screwdriver
Speaker Box
(A1)x1
Driver should
be pried away
from Speaker Box.
Speaker Box
Woofer
Tweeter
Super Tweeter
(A2)x4
M4x16mm
(C1)x2
M3x10mm
(B1)x2
M3x10mm
Screwdriver
Speaker Box
(A1)x1
Driver should
be pried away
from Speaker Box.
Front Panel
(A3)x2
M2.6x10mm
LED PWB
(A2)x1
Speaker Box
Woofer
(B1)x8
M4x16mm
