3.2. How to Remove the tray motor/main cam motor/5-
Changer Motor PWB (See Fig. 6)
1. Remove the screws (A1)x 2 pcs., to remove tray motor/main cam
motor/5-Changer Motor PWB.

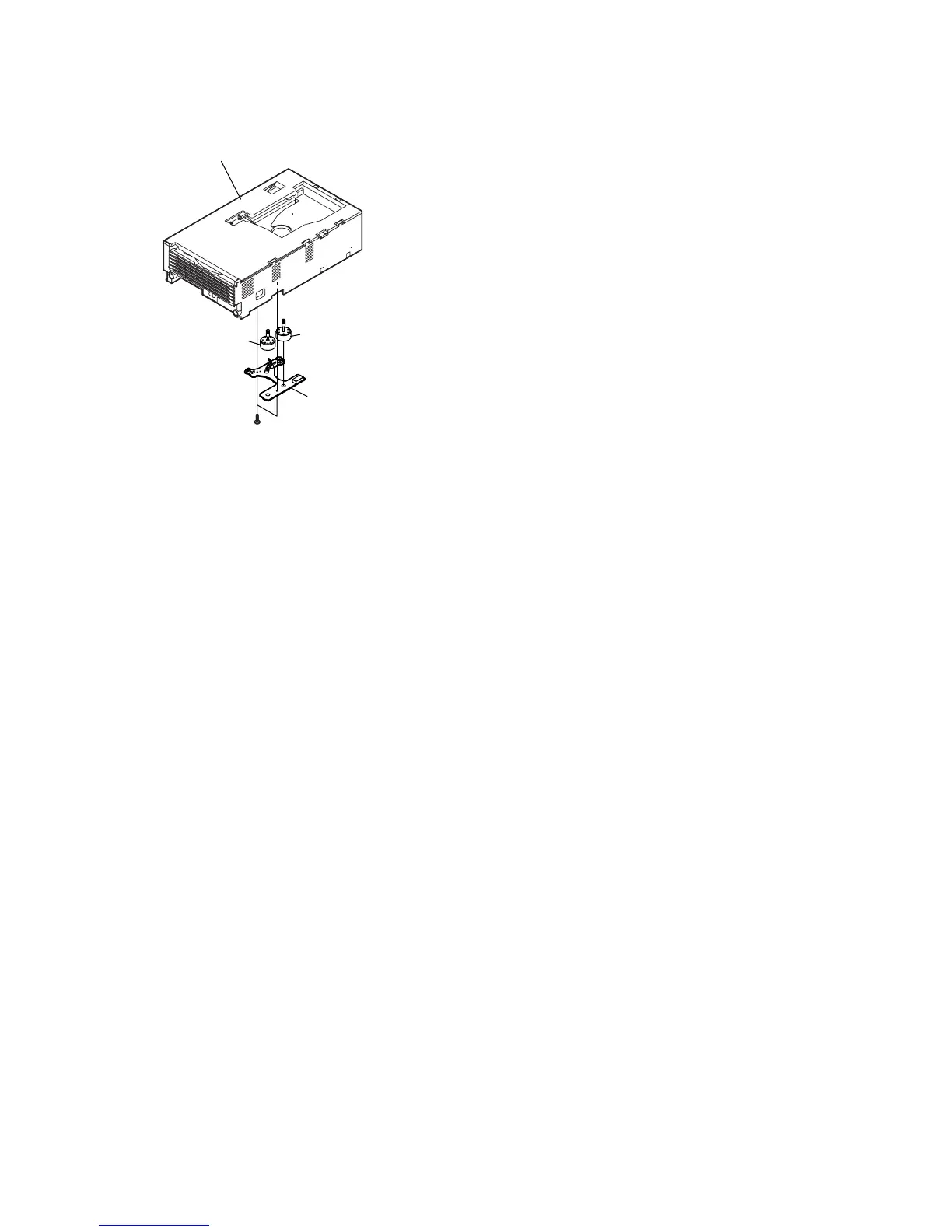

Figure 6
NOTE: There are 2 more screws tighten the motors at the bottom of
main chassis. Before performing procedure 1 above, disc stop
spring, top plate gear up down board and trays must be
removed, then only the 2 screws can be untighten.
5-Changer
Motor PWB
Tray Motor
Changer Mechanism Unit
Main Cam Motor
(A1)x2
φ2x10mm
