Sharp CL13M10/15 - Schematic Diagrams

Sharp CL13M10/15
34 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
15
1716 1918151413121110
13L-M100/150
CL13M10/15
14ML10
654321
A
B
C
D
E
F
G
H

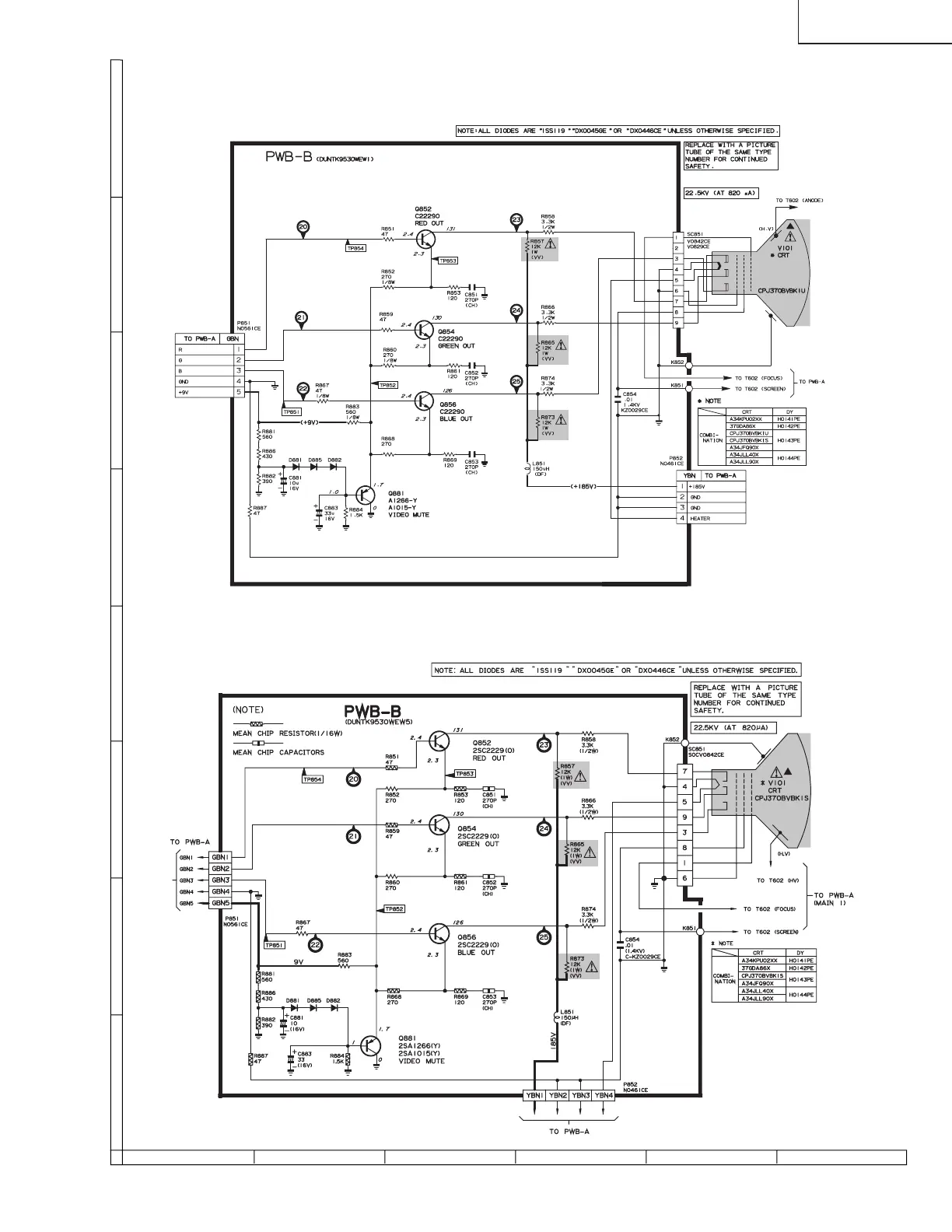

SCHEMATIC DIAGRAM: CRT Unit
