32
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
13L-M100/150
CL13M10/15
14ML10
PWB-B : DUNTK9530WEW5(14ML10)
CRT UNIT
TRANSISTORS
Q852 VS2SC2229O/1E J 2SC2229O AD
Q854 VS2SC2229O/1E J 2SC2229O AD
Q856 VS2SC2229O/1E J 2SC2229O AD
Q881 VS2SA1266-Y-1 J 2SA1266(Y) AA
or
VS2SA1015-Y-1
DIODES
D881 VHD1SS119//-1 J Diode AB
D882 VHD1SS119//-1 J Diode AB
D885 VHD1SS119//-1 J Diode AB
COIL
L851 VP-DF151K0000 J Peaking 150µH AB
CAPACITORS
[EL.··· Electrolytic]
C851 VCCCCY1HH271J J 270p 50V Ceramic AA
C852 VCCCCY1HH271J J 270p 50V Ceramic AA
C853 VCCCCY1HH271J J 270p 50V Ceramic AA
C854 RC-KZ0029CEZZ J 0.01 1.4kV Ceramic AC
C881 VCEA0A1CW106M J 10 16V EL. AB
C883 VCEA0A1CW336M J 33 16V EL. AB
RESISTORS
[M-Ox.··· Metal Oxide, M-Film ··· Metal Film]
R851 VRS-CY1JF470J J 47 1/16W M-Ox. AA
R852 VRD-RA2BE271J J 270 1/8W Carbon AA
R853 VRS-CY1JF121J J 120 1/16W M-Ox. AA
å R857 VRS-VV3AB123J J 12k 1W M-Ox. AA
R858 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R859 VRS-CY1JF470J J 47 1/16W M-Ox. AA
R860 VRD-RA2BE271J J 270 1/8W Carbon AA
R861 VRS-CY1JF121J J 120 1/16W M-Ox. AA
å R865 VRS-VV3AB123J J 12k 1W M-Ox. AA
R866 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R867 VRD-RA2BE470J J 47 1/8W Carbon AA
R868 VRS-CY1JF271J J 270 1/16W M-Ox. AA
R869 VRS-CY1JF121J J 120 1/16W M-Ox. AA
å R873 VRS-VV3AB123J J 12k 1W M-Ox. AA
R874 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R881 VRS-CY1JF561J J 560 1/16W M-Ox. AA
R882 VRS-CY1JF391J J 390 1/16W M-Ox. AA
R883 VRD-RA2BE561J J 560 1/8W Carbon AA
R884 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R886 VRS-CY1JF431J J 430 1/16W M-Ox. AA
R887 VRS-CY1JF470J J 47 1/16W M-Ox. AA
MISCELLANEOUS PARTS
P851 QPLGN0561CEZZ J Plug, 5-pin(GBN) AB
P852 QPLGN0461CEZZ J Plug, 4-pin(YBN) AB
SC851 QSOCV0842CEZZ J CRT Socket AH
å ACC701 QACCD3064CESA J AC Cord AM
or (13L-M100, CL13M10, 14ML10)
QACCD3060CESA
å ACC701 QACCD3060CESB J AC Cord (13L-M150, CL13M15) AR
QCNW-2105PEZZ R Connecting Cord AF
QCNW-2106PEZZ R Connecting Cord AE
QCNW-2107PEZZ R Connecting Cord AE
QANTR0022PEZZ R Rod Antenna AP
(CL13M10/15)
QANTR0018PEZZ R Rod Antenna (14ML10) AQ
SP1 VSP0080PBK58A J Speaker, 8 ohm AL
MISCELLANEOUS PARTS
SUPPLIED ACCESSORIES
RRMCG1324CESA J Infrared R/C Unit AT
(13L-M100, CL13M10)
RRMCG1324CESB J Infrared R/C Unit AT
(13L-M150, CL13M15)
RRMCG1339CESA Infrared R/C Unit (14ML10) AT
TGAN-0018PEZZ R Guarantee Card (13L-M100/150) AD
TiNS-6571PEZZ R Operation Manual (13L-M100/150) AD
TiNS-6572PEZZ R Operation Manual (CL13M10/15) AD
TiNS-6573PEZZ R Operation Manual (14ML10)
PACKING PARTS
(NOT REPLACEMENT ITEM)
SPAKC6502PEZZ – Packing Case (13L-M100) —
SPAKC6503PEZZ – Packing Case (13L-M150) —
SPAKC6504PEZZ – Packing Case (CL13M10) —
SPAKC6505PEZZ – Packing Case (CL13M15) —
SPAKC0107GJZZ – Packing Case (14ML10) —
SPAKP0031PEZZ – Wrapping Paper —
(13L-M100/150, CL13M10/15)
SPAKP0110PEZZ – Wrapping Paper —
(13L-M100/150, CL13M10/15)
SPAKP0104PEZZ – Wrapping Paper (14ML10) —
SPAKX2630PEZZ – Buffer Material —
(13L-M100/150, CL13M10/15)
SPAKX0105GEZZ – Buffer Material (14ML10) —
SSAKA0001PEZZ – Polyethylene Bag —
(13L-M100/150, CL13M10/15)
SSAKA0101GEZZ – Polyethylene Bag (14ML10) —
13L-M100/150, CL13M10/15
1 CCABA2395WEV8 R Front Cabinet Ass'y (13L-M100) AZ
1 CCABA2395WEW0 R Front Cabinet Ass'y (13L-M150) AZ
1 CCABA2409WEV6 R Front Cabinet Ass'y (CL13M10) BA
1 CCABA2409WEV8 R Front Cabinet Ass'y (CL13M15) BA
1-1 Not Available – Front Cabinet —
1-2 GCOVA0078PEKA R R/C Cover AD
1-3 JBTN-0306PESA R Button (13L-M100, CL13M10) AD
1-3 JBTN-0306PESB R Button (13L-M150, CL13M15) AD
2 GCABB2309PEKA R Rear Cabinet (13L-M100) AW
2 GCABB2309PEKB R Rear Cabinet (13L-M150) AW
2 GCABB2325PEKA R Rear Cabinet (CL13M10) AW
2 GCABB2325PEKB R Rear Cabinet (CL13M15) AW
14ML10
1 CCABA0107WEH0 X Front Cabinet Ass'y
1-1 Not Available – Front Cabinet —
1-2 GCOVA0105GJSA X R/C Cover
1-3 JBTN-0105GJKA X Button
2 GCABB0106GJKA X Rear Cabinet
1
1-1
1-3
1-2
2

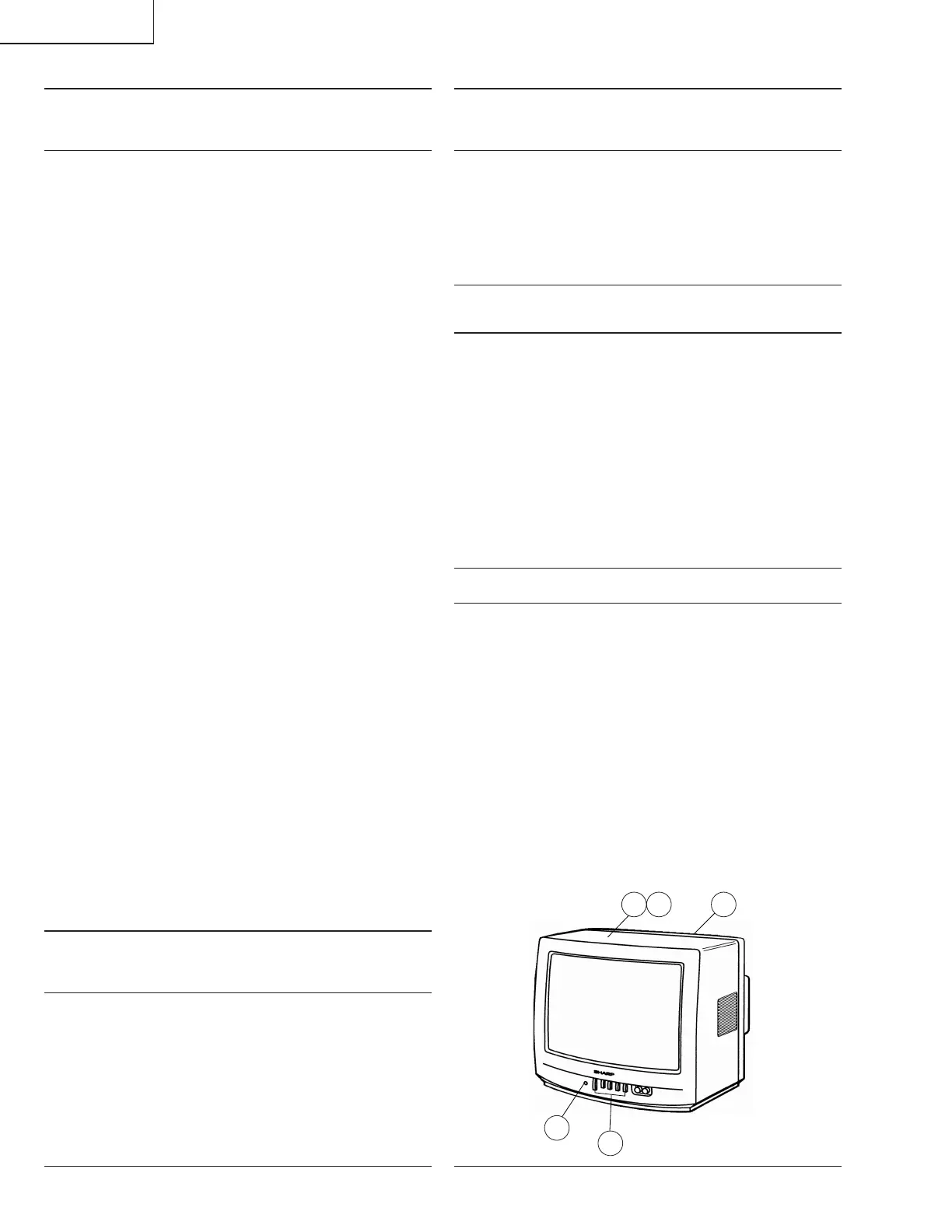

CABINET PARTS
