Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
13L-M100/150
CL13M10/15
14ML10
Ref. No. Part No. ★ Description Code
Ref. No. Part No. ★ Description Code
PARTS LIST
PARTS REPLACEMENT
Replacement parts which have these special safety characteristics
identified in this manual; electrical components having such features
are identified by å and shaded areas in the Replacement Parts Lists
and Schematic Diagrams. The use of a substitute replacement part
which dose no have the same safety characteristic as the factory
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
in USA: Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor, Please call Toll-
Free; 1-800-BE-SHARP
★ MARK : SPARE PARTS-DELIVERY SECTION
' MARK : X- RAY RELATED PARTS
LISTE DES PIECES
CHANGE DES PIECES
Les pi`eces de rechange qui pr élelesentent ces caract éleristiques
sp éleciales de s élecurit éle, sont identifi élees dans ce manuel : les
pi`eces élelectriques qui pr élesentent ces particularit éles, sont rep
éler élee par la marque å et sont hachur élees dans les listes de
pi`eces et dans les diagrammes sch élematiques.
La substitution d'une pi`ece de rechange par une autre qui ne pr
éLesente pas les m éoemes caract éLeristiques de s élecurit éle que
la pi`ece recommand élee parl'usine et dans ce manuel de service,
peut provoquer une éLelectrocution, un incendie ou toutautre sinistre.
"COMMENT COMMANDER LES PIECES DE RECHANGE"
Pour que votre commande soit rapidement et correctement remplie,
veuillez fournir les renseignements suivants.
1. NUMERO DU MODELE 2. NO. DE REF
3. NO. DE PIECE 4. DESCRIPTION
in CANADA: Contact SHARP Electronics of Conada Limited
Phone (416) 890-2100
★MARQUE: SECTION LIVRAISON DES PIECES DE RECHANGE
' MARQUE : PIECES RELATIVE AUX RAYONS X

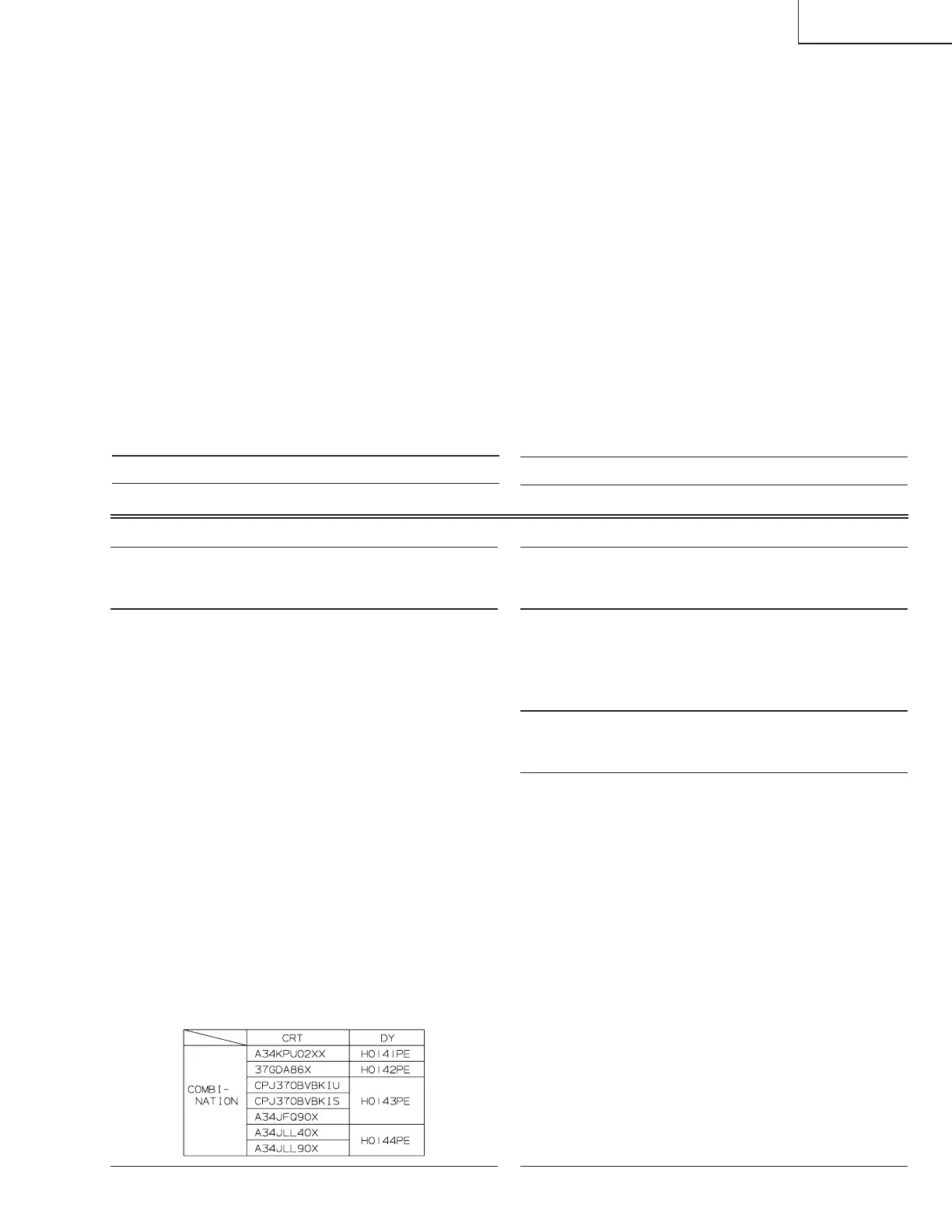

PICTURE TUBE
çå V101 VB370BVBK1S-S R CRT(DY601: H0143PE) BZ
or
VB370BVBK1U-S CRT(DY601: H0143PE)
or
VB34JFQ90X/*S CRT(DY601: H0143PE)
or
VB34KPU02X/*S CRT(DY601: H0141PE)
or
VB34JLL40X/*S CRT(DY601: H0144PE)
or
VB34JLL90X/*S CRT(DY601: H0144PE)
or
VB37GDA86X/1E CRT(DY601: H0142PE)
çå DY601 RCiLH0141PEZZ R DY(CRT: A34KPU02XX) BA
or
RCiLH0142PEZZ DY(CRT: 37GDA86X)
or
RCiLH0143PEZZ DY(CRT: CPJ370BVBK1U
or CPJ370BVBK1S
or A34JFQ90X)
or
RCiLH0144PEZZ DY(CRT: A34JLL40X
or A34JLL90X)
å L703 RCiLG0386PEZZ R Degaussing Coil AK
PMAGF3041CEZZ J Magnet Ass'y AG
-Purity and Static
Convergence
PSPAG0004PEZZ R Wedge (Gum),Yoke AC
QEARC1423PEZZ R Groundsing Strap AG
PWB-A
DUNTK9529WEW1 – MAIN Unit (13L-M100/150) —
PWB-A
DUNTK9529WEW3 – MAIN Unit (CL13M10/15) —
PWB-A
DUNTK9529WEW5 – MAIN Unit (14ML10) —
PWB-B
DUNTK9530WEW1 – CRT Unit —
(13L-M100/150, CL13M10/15)
PWB-B
DUNTK9530WEW5 – CRT Unit (14ML10) —
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
TUNER
NOTE : THE PARTS HERE SHOWN ARE SUPPLIED AS AN
ASSEMBLY BUT NOT INDEPENDENTLY.
å TU51 VTUVTST5UF78S M Tuner AX
INTEGRATED CIRCUITS
IC101 VHiKA78S05P-1 M KA78S05P AD
or
VHiTA7805S/-1
çå IC201 RH-iX3253CEZZ J TA1268AN AV
IC351 VHiTDA7233/-1 J TDA7233 AF
å IC501 VHiTA8403K/-1 J TA8403K AL
çå IC701 VHiSTR301301E J STR30130 AP
å IC751 VHiKA7809Pi-1 R KA7809PI AE
or
VHiTA7809S/-1
å IC761 VHiKA7812Pi-1 R KA7812PI AE
or
VHiTA7812S/-1
IC2001 RH-iX3256CEZZ J TMPA8701CMF142 AX
IC2040 VHiPST994C/-1 J PST994C AD
IC2101 VHiM24C01B/-1 J M24C01-BN6 AF
TRANSISTORS
You can substitute "VS2SC2462-C-1" for "VS2PD601AR/-1".
Q201 VS2SC2735//1E J 2SC2735 AC
PWB-A : DUNTK9529WEW1(13L-M100/150)
PWB-A : DUNTK9529WEW3(CL13M10/15)
MAIN UNIT
To Next Page
