LYPB PR
System Connections
Your TV must be capable of handling progressive scanning and have component video input capability.
1. Connect the DVD player to the component video input sockets of the TV.
(The VIDEO OUT or S-VIDEO OUT sockets connection is not encourage.)
2. You also need to connect the left and right audio cables to the AUDIO OUT
sockets of DVD player and the Audio input sockets of the TV.
3. Set the DVD player to the PROGRESSIVE position. (See page 21)
Connecting to a TV with Progressive-scan Capability
*Please consult your local audio/video dealer.

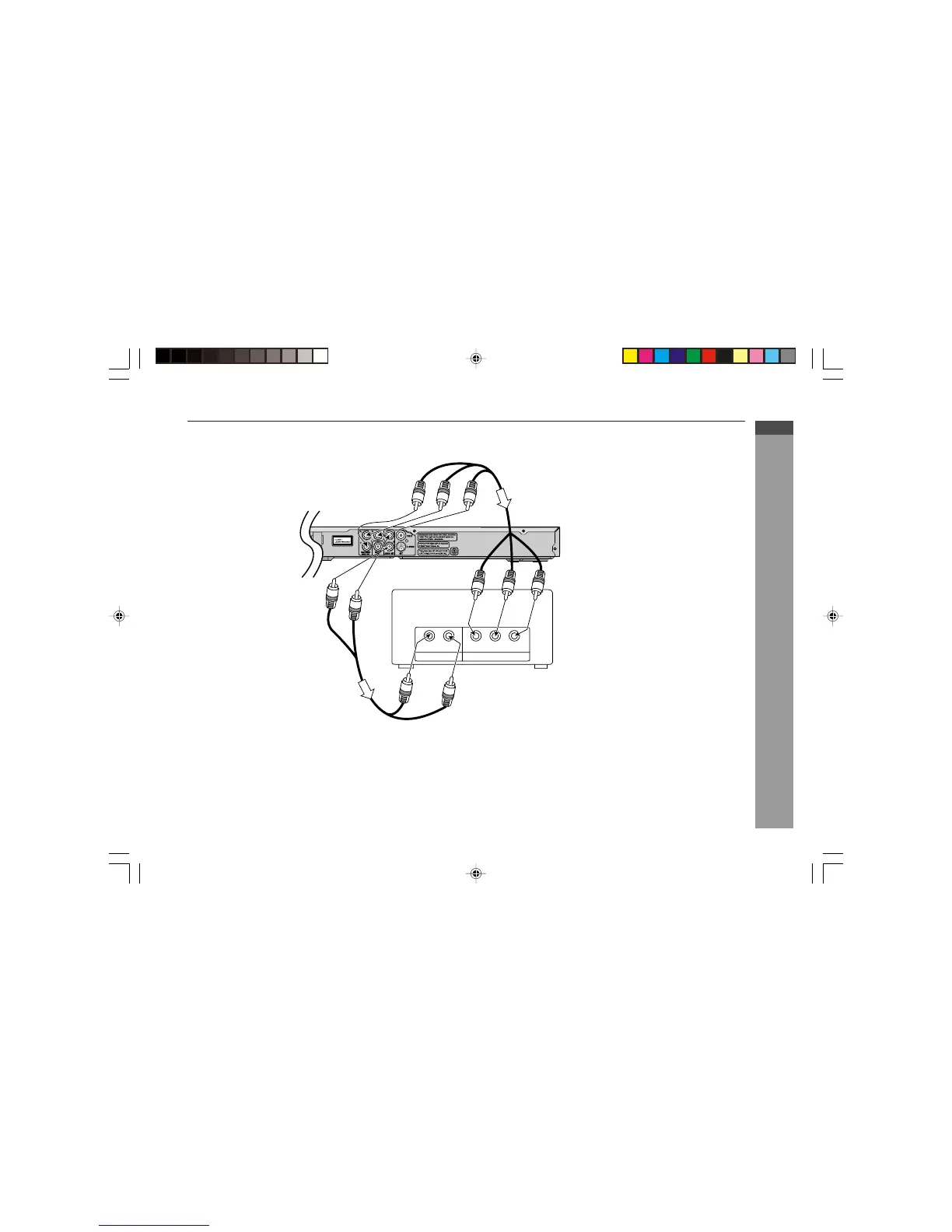

DVD player
Green
To COMPONENT VIDEO
OUT sockets
Blue
Red
(Red) R
(White) L
(Red) R
(White) L
Green
Blue
Red
*Component video cable (not supplied)
*Audio cable (supplied)
To COMPONENT VIDEO
INPUT sockets
To audio input
sockets
TV with progressive-scan
capability
