4) Use nippers to cot off the drawer cable split pin of the top cabinet,
and attach the top cabinet.
5) Fix ground wire 4 of the ER-04DW on the standard drawer with
screw 5 .
Screw 5 used in this case is an accessory of the ER-04DW.
CHAPTER 8. DRAWER FIXING KIT:
DKIT–8670BHZZ
(Only for ER-A330)
* For the ER-A310, standard provision.

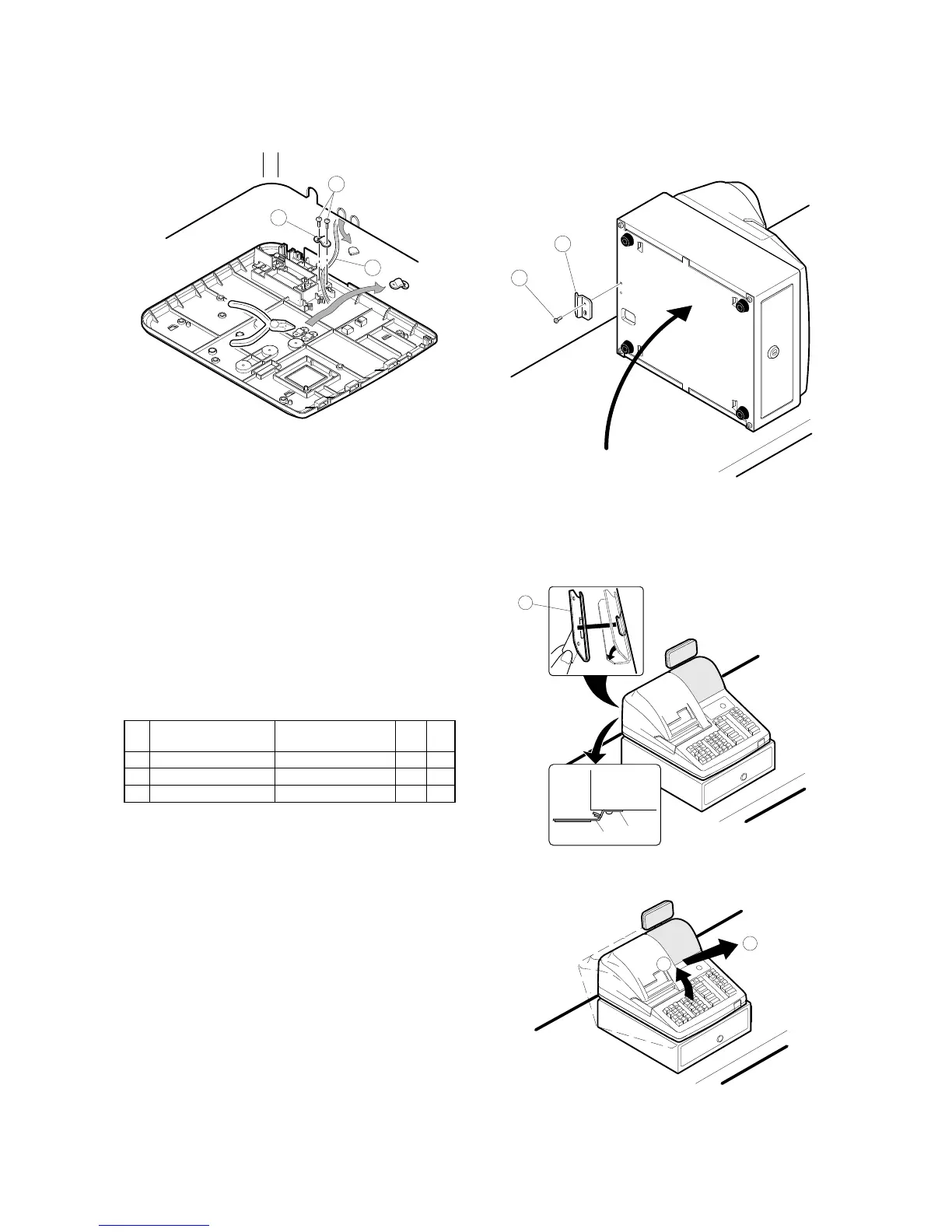

The drawer fixing kit is used for securing the cash drawer when
installing separately from the ECR main unit.
By using two of brackets, the drawer box can be protected from
drifting especially when it is filled with coins.
1. Parts list KIT CODE: DKIT–8670BHZZ
No. Parts code Description
Price
rank
Q’ty
1 LANGK7612BHZZ Fixing angle bracket-A AF 1
2 LANGK7613BHZZ Fixing angle bracket-B AN 1
3 XHPSD30P08000 Screw (M3 × 8) AA 1
2. Installation procedure
1) Fix the fixing angle bracket-A 1 to the back of the drawer with the
fixing screw 2 .
2) Remove the dust from the part to attach the fixing angle bracket-B
3 to.
3) Peel off the adhesive tape on the fixing angle bracket-B 3 .
4) Hook the fixing angle bracket-A 1 of the drawer into the above-
mentioned fixing angle bracket-B 3 and attach the fixing angle
bracket-B 3 to the platform.
* To move the register, lift up the front of the drawer and pull it
frontward.
