Sharp FO-4450 - Page 140

FO-4450U/FO-CS1
12
[10] Drive/Transfer unit
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION

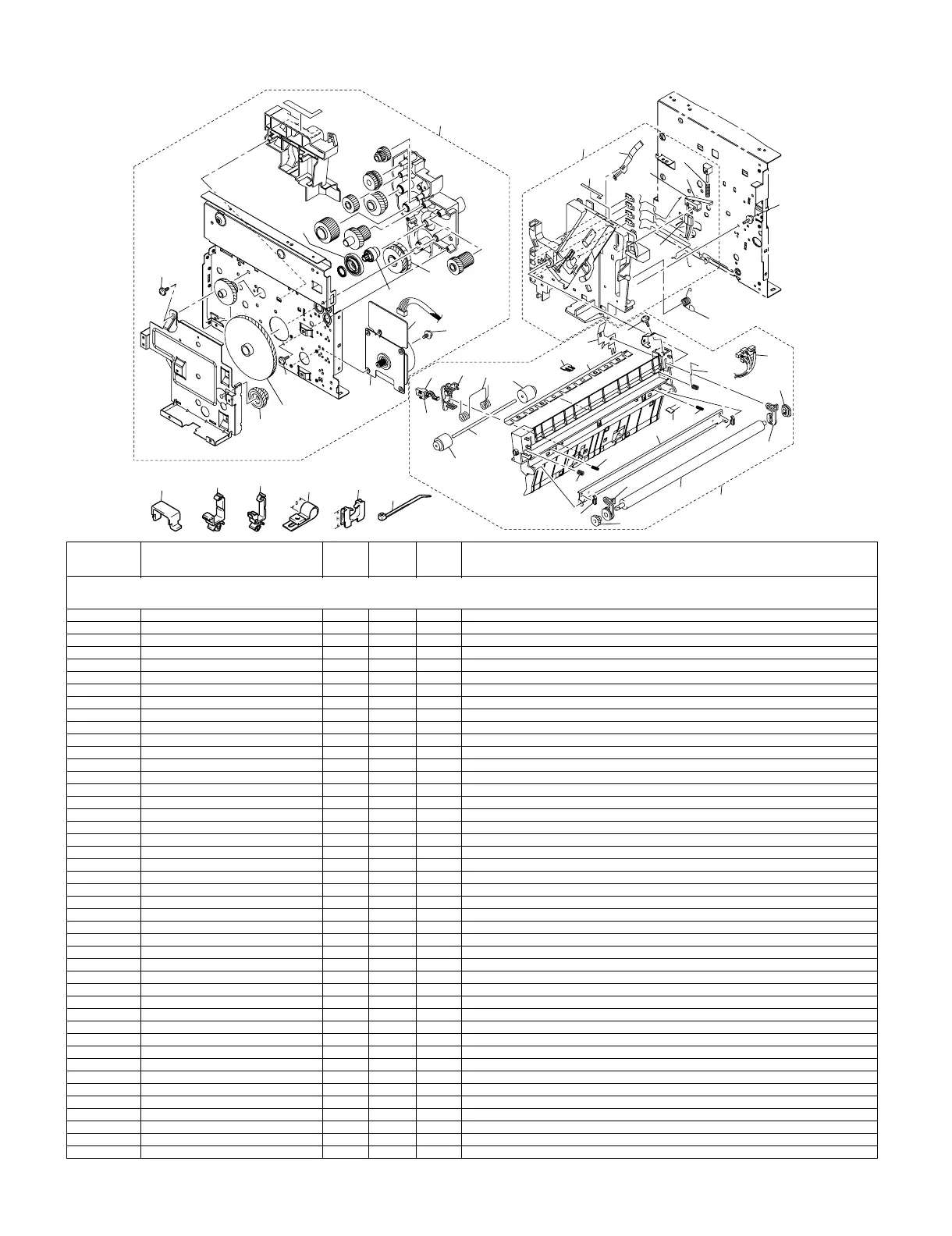

[10] Drive/Transfer unit
1 0KW4127201302 AC C Torsion spring
2 0KW4109630501 AN C Interlock switch [S2]
3 0KW4127048301 BC E I/C guide assy
4 0KW4127030601 BV E Drive gear assy
5 0KW9314210012 BP B Main motor [M1]
6 0KW4127630201 AN C Paper take up sensor switch [PS1]
7 0KW4127300601 AC C Roll
8 0KW4127410302 BF C Transfer roller
9 0KW4127031201 BM E Transfer unit
10 0KW4127682101 AP C Wire harness assy
11 0KW1053481202 AP C Cord clamp
12 0KW9384100051 AC C Wiring saddle
13 0KW9384110091 AC C Wiring saddle
14 0KW9384160011 AC C P-clip 10D
15 0KW9384201021 AD C Edge cover 8.5H
16 0KW4127675201 AC C Cable tie
17 0KW4127251001 AF C Gear
18 0KW4127257601 AS C Gear
19 0KW4127257501 AW C Gear
20 0KW4127251201 AS C Gear
21 0KW4127257101 AG C Gear
22 0KW4127231001 AF C Pressure spring
23 0KW4127201201 AN C Earth ground
24 0KW4127202203 AC D Label
25 0KW4127207301 AF C Contact
26 0KW4127413102 AD C Earth ground
27 0KW4127411301 AG C Neutralizing needle
28 0KW4127413701 AH C Regulating plate
29 0KW4127413601 AC C Holder
30 0KW4127301801 AC C Torsion spring
31 0KW4127303901 AF C Shaft
32 0KW4127410701 AC C Pressure spring
33 0KW4127413302 AC C Spacer
34 0KW4127411101 AD C Gear
35 0KW4127410401 AC C Bushing
36 0KW4127413501 AC C Pressure spring
37 0KW4127413201 AG C Guide plate
38 0KW9454407602 AG C Resistor
39 0KW4127410501 AC C Bushing
40 0KW4127410601 AD C Conductive member
41 0KW4127681904 AV C Wire harness ass'y
42 0KW4127410801 AC C Pressure spring
B1 0KW9735030613 AB C Tapping screw(3x6)
B2 0KW9739030813 AB C Tapping screw(3x8)
