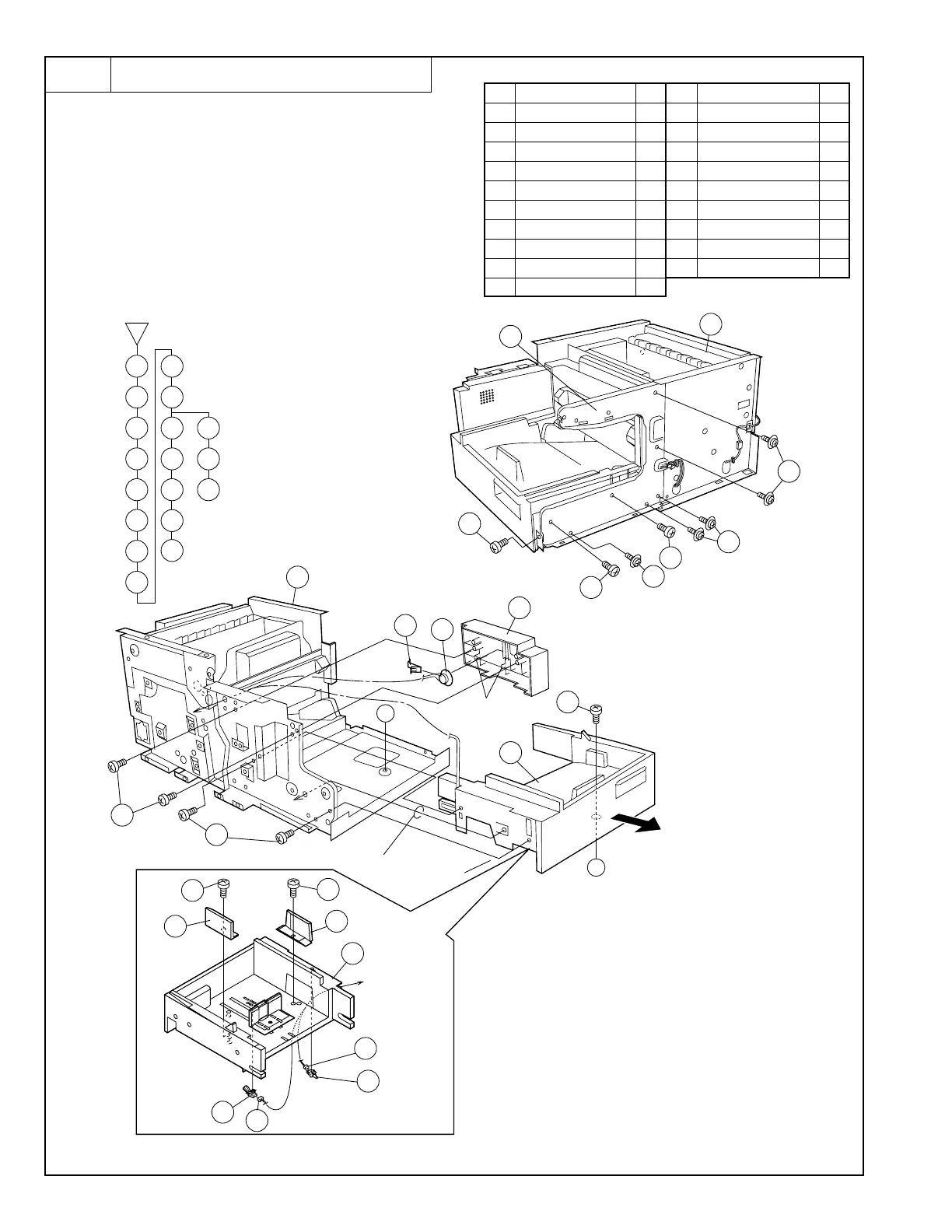

Fig. 6
Front left frame, Paper feed tray
Parts list (Fig. 6)
1
2
3
4
5
6
7
8
9
14
15
10
11
12
13
17
18
19
1
1
3
2
3
4
5
2
2
7
11
8
9
12
a
a
6
10
Hook
Insert the Boss to center of hole.
19
16
15
17
18
18
17
14
13
16
11 Screw (3×6) 1
12 Paper feed tray unit 1
13 Screw (3×10) 1
14 Tray width guide, front 1
15 Screw (3×10) 1
16 Tray width guide, rear 1
17 Connector 2
18 Sensor 2
19 Paper feed tray 1
1 Main unit 1
2 Screw (3×6) 5
3 Screw (3×10) 2
4 Screw (3×6) 1
5 Front left frame 1
6 Screw (3×10) 2
7 Speaker holder plate spring 1
8 Speaker ass’y1
9 Inner front cabinet 1
10 Screw (3×10) 2
No. Part name Qty No. Part name Qty
