L
PLEASE REFER TO THE OPERATION MANUAL
GENERAL
Power source:
Output power:
(nput
impedance:
Loaded impedance:
Dimensions:
Weight:
SPECIFICATIONS
AC 240
V,
50 Hz
DC 9
V
(UM/SUM-1
or R20
x
6)
PMPO; 20W (low
+
low)
(AC operation)
MPO;
8W
(4W +
4W)
(AC operation)
RMS;
3.8W (1.9W + 1.9W)
(DC operation, 10% distortion)
External mic; 600 ohms
Headphones; 8-25 ohms
External speakers; 4-8 ohms
Width; 494 mm
(19-l/2”)
Height; 180 mm
(7-l/8”)
Depth; 130 mm
(5-l/8”)
2.8 kg (6.2
Ibs.)
without
RADIO
Frequency range:
TAPE RECORDER
Tape:
Frequency response
:
Signal/noise ratio:
Wow and flutter:
SPEAKER
Speakers:
Impedance:
Maximum power
handling capacity:
I
FM; 87.6
-
108 MHz
AM; 526.5
-
1,606.5
kHz
Compact cassette tape
100 Hz
-
10,000 Hz
36 dB
0.2% (WRMS)
10 cm
(4”)
woofer
x
2
Horn type tweeter
x
2
4 ohms
5
W
(maximum)
batteries
Specifications for this model are subject to change without
prior notice.

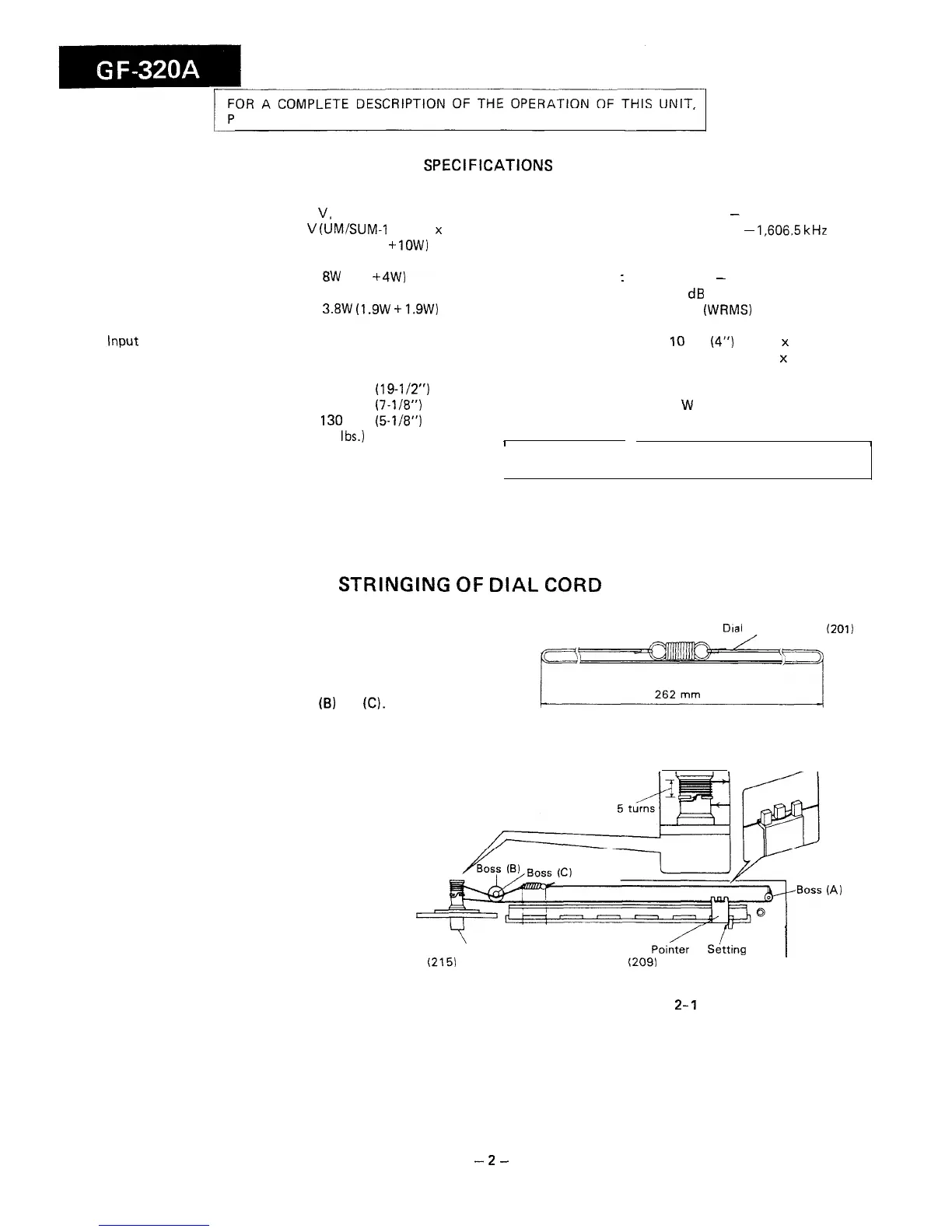

STRINGING
OF
DIAL
CORD
Dial
Cord Assembly
(201)
1. Wind the dial cord over the tuning control and attach the
tuning control to the front cabinet.
2. Set the dial cord over the boss (A).
3. Set the dial cord over the bosses (B) and
(C).
(A)
Tuning control shaft (Knob)
(215)
Dial
Poind
&kg
Point
/
(209)
Figure
2-
1
-2-
