Sharp GF-320A - BLOCK DIAGRAM; System Overview

Sharp GF-320A
20 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
SWIOI-A-F
FUNCTION SELECTOR SWITCH
SWIOZ-A-J
RECORD/PLAYBACK SWITCH

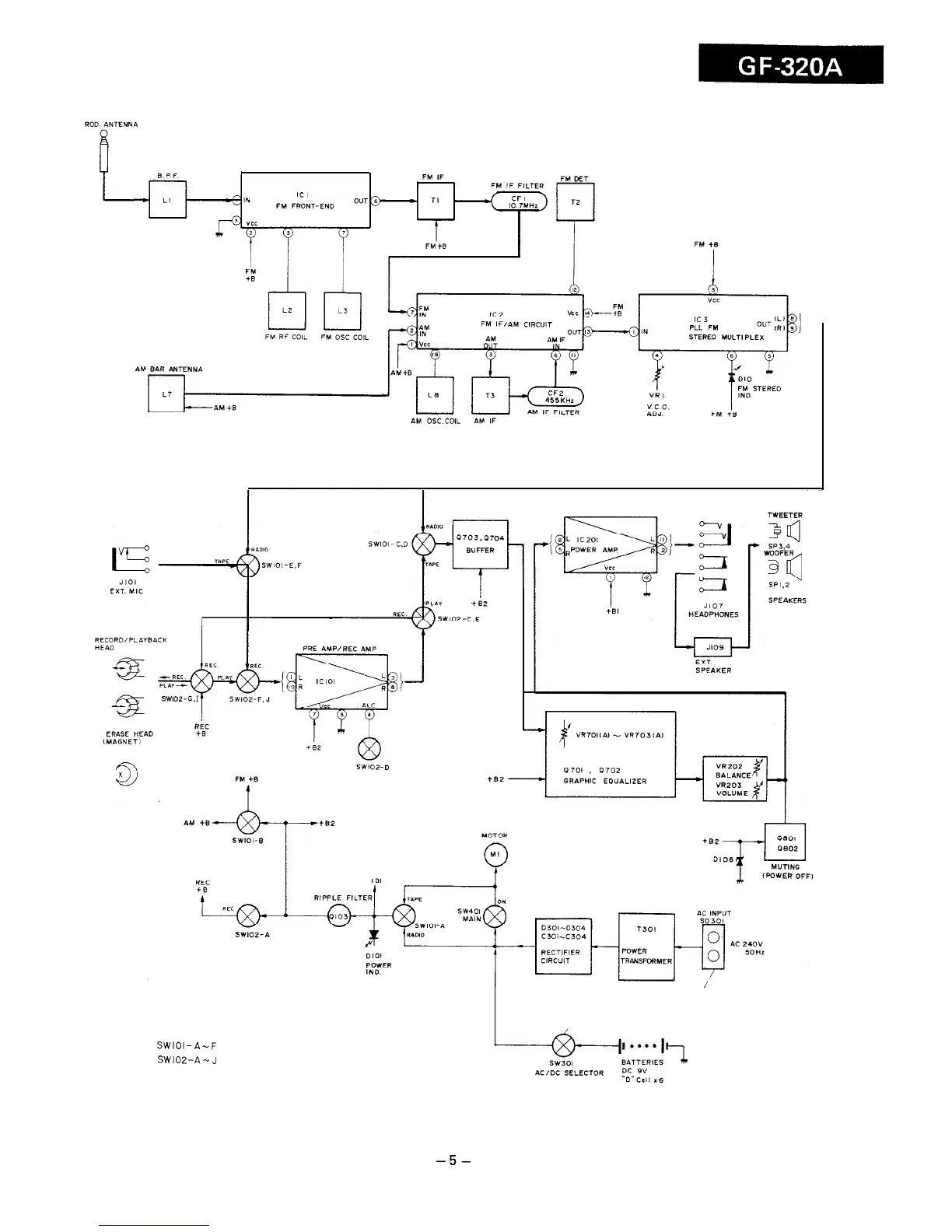

Figure 5 BLOCK DIAGRAM
