GX-CH170X/CH170Z

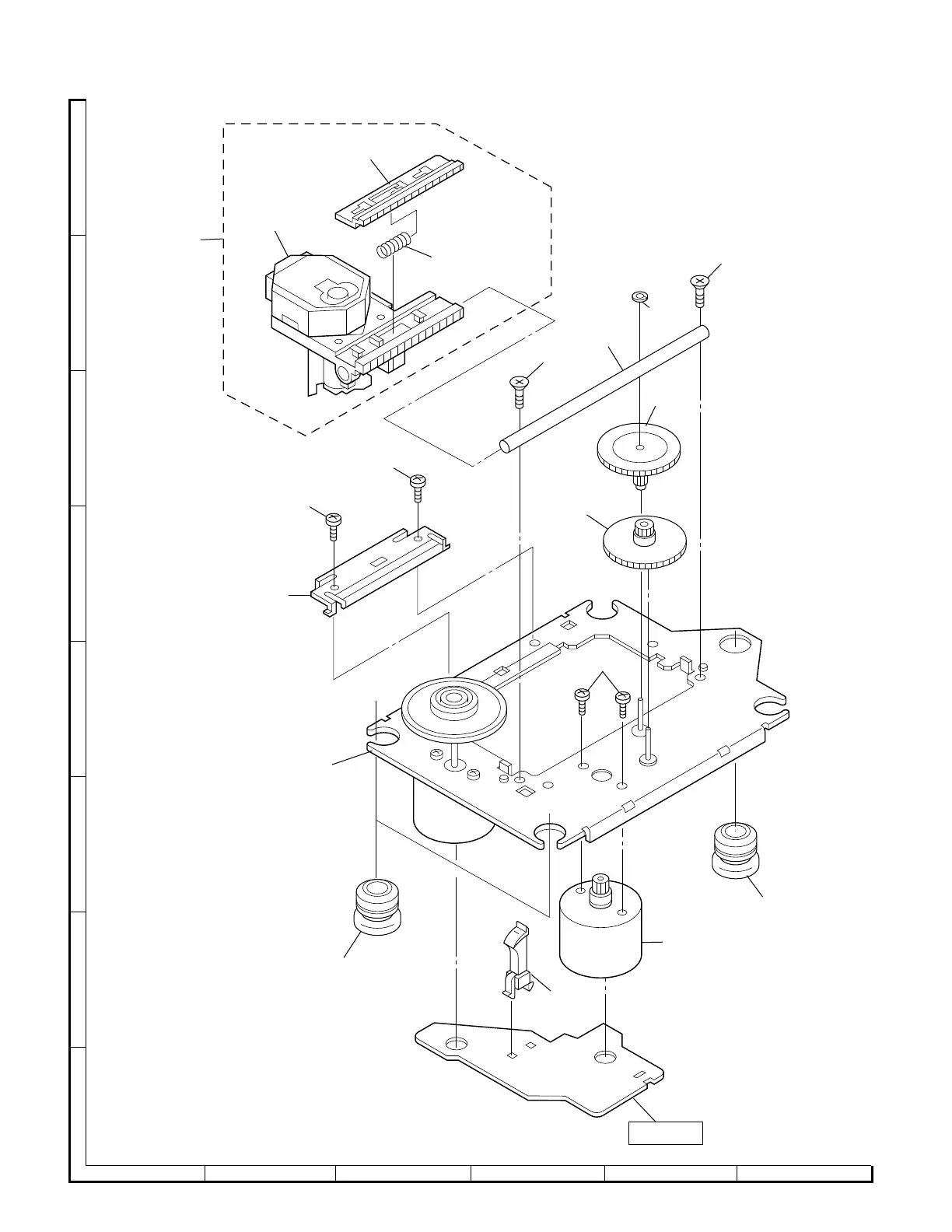

Figure 7 CD MECHANISM EXPLODED VIEW
A
B
C
D
E
F
G
H
1
2 3 4 5 6
– 7 –
306-1
701
304
701
302
301
702
702
303
M701
703
305x2
SW4
M702
305
PWB-E
306-2
306-3
306
704
