[4] Names Of Parts

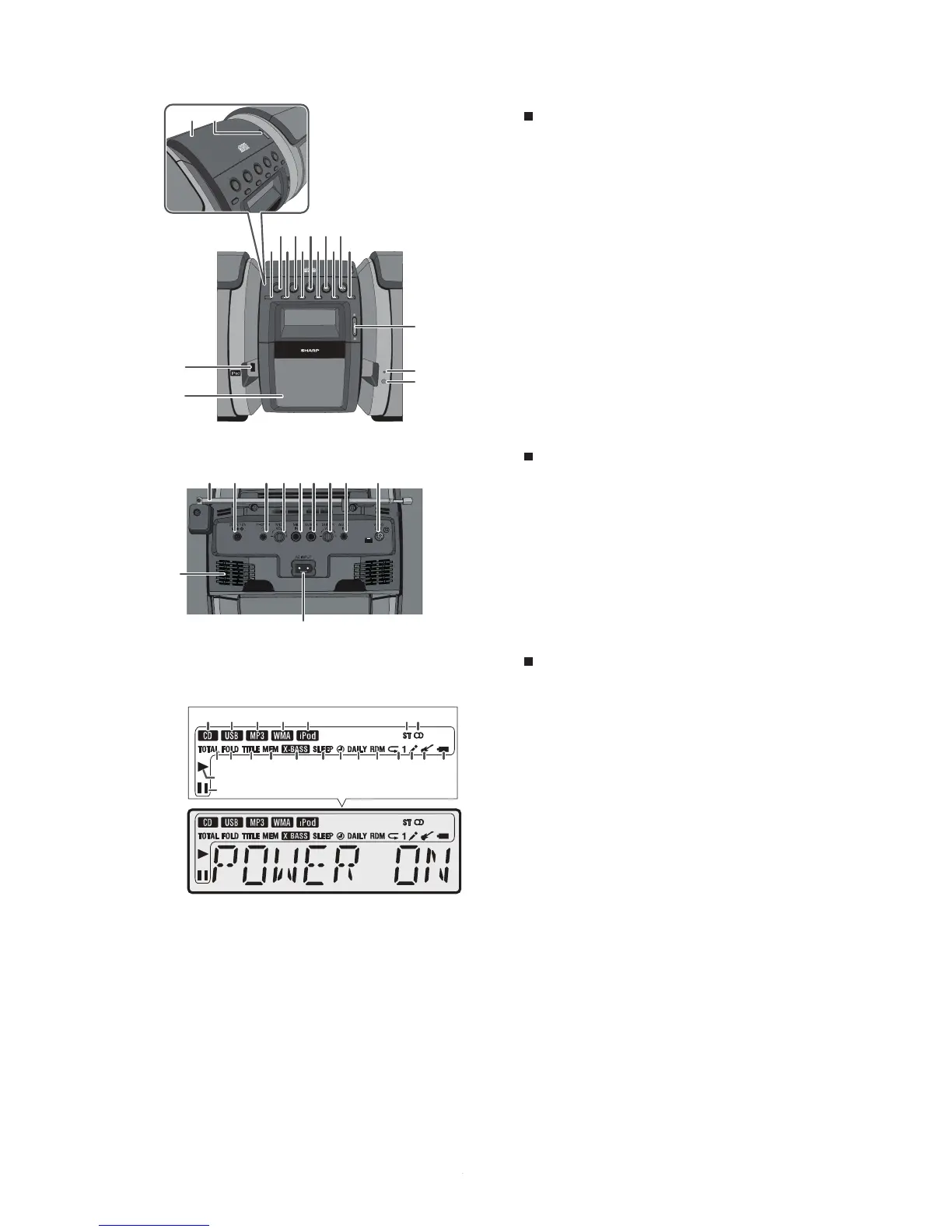

1. Equaliser/X-Bass Button
2. Power On/Stand-by Button
3. Demo/Dimmer/Stop Button
4. Tuner/Audio In Button
5. Tuner Preset Down, CD/USB Track Down,
iPod/iPhone Skip Down
6. USB Play/Pause Button
7. Tuner Preset Up, CD/USB Track Up,
iPod/iPhone Skip Up
8. CD Play/Pause Button
9. Volume Down Button
10. iPod Play/Pause Button
11. Volume Up Button
12. Docking station door open knob
13. Timer indicator
14. Remote sensor
15. Docking station
16. USB/iPad Terminal
17. CD compartment
18. CD compartment open knob
Front Panel
1. FM antenna
2. DC 12 V input jack
3. Headphone jack
4. Microphone volume knob
5. Microphone input jack
6. Guitar input jack
7. Guitar volume knob
8. Audio input jack
9. Video output jack
10. AC input jack
11. Cable holder
Rear panel
1. CD Indicator
2. USB Indicator
3. MP3 Indicator
4. WMA Indicator
5. iPod Indicator
6. FM Stereo Mode Indicator
7. Stereo Station Indicator
8. Total Indicator
9. Folder Indicator
10. Title Indicator
11. MEM (Memory) Indicator
12. X-bass Indicator
13. Sleep Indicator
14. Once Timer Indicator
15. Daily Timer Indicator
16. RDM (Random) Indicator
17. Repeat Indicator
18. Microphone Indicator
19. Guitar Indicator
20. Battery Level Indicator
21. Play Indicator
22. Pause Indicator
Display
X-BASS/EQ
DEMO/DIMMER
VOLUME
iPod
CD
USB
TUNER/AUDIO-IN
ON/STAND-BY
PORTABLE MUSIC BOOMBOX GX-M10
PRESET
R
E
M
I
T
T
OME
R
E
R
O
S
N
E
S
11 3 57911
2468 10
13
12
14
16
15
17
18
1 2 3 4 5 6 7
201918171615141312111098
21
22
1 2 3 4 5 6 7 8 9
10
11
