Sharp GX-M10 Service Manual

GX-M10
3 – 1
CD-ES700/CD-ES77CD-ES700/CD-ES77Service ManualCD-ES700/CD-ES77MarketE

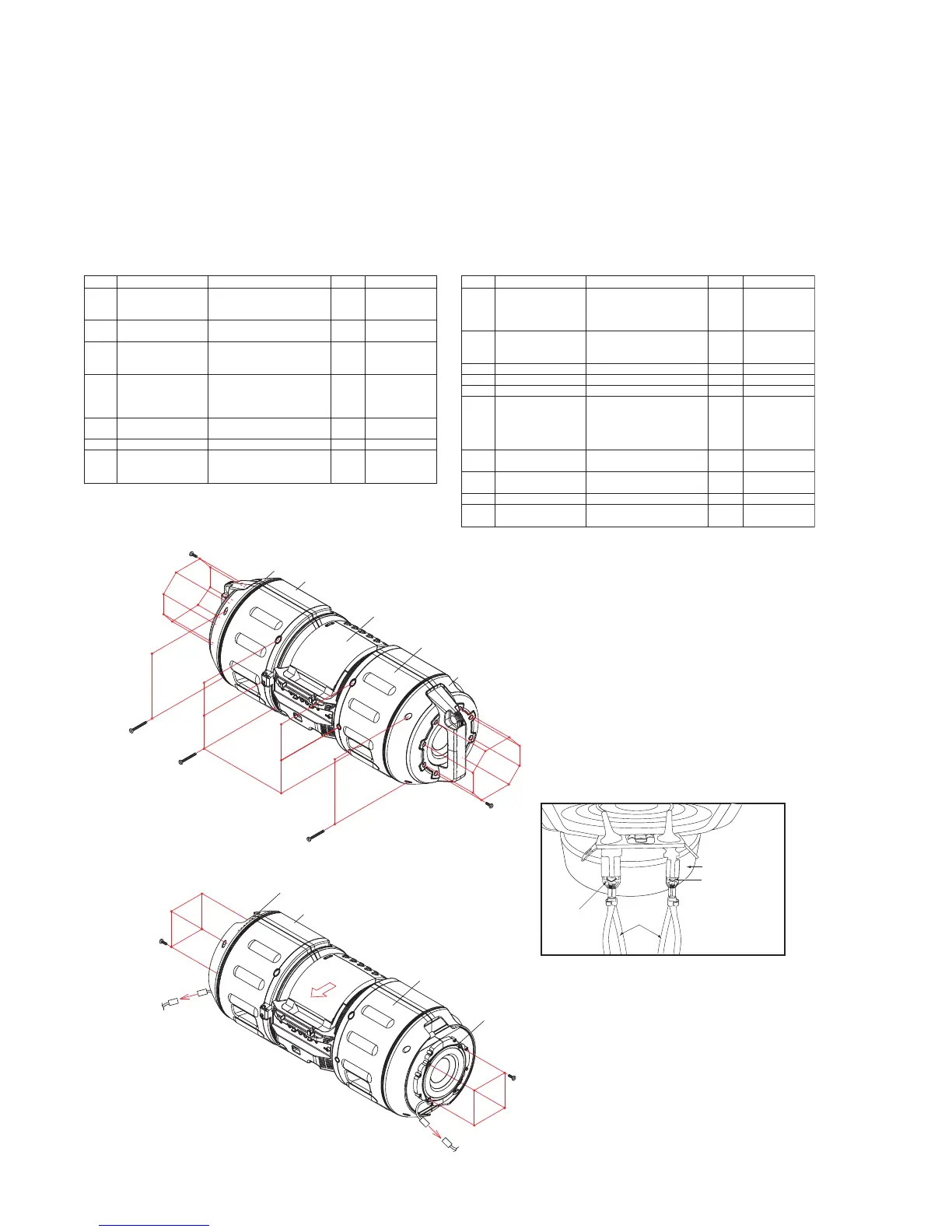

CHAPTER 3. MECHANISM DESCRIPTION
[1] Disassembly
Caution On Disassembly
Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were before disassembling.
4. Take sufficient care on static electricity of integrated circuits and other circuits when servicing.
(A1) x 8
M4 x 14mm
(B1) x 4
M3.5 x 10mm
(B1) x 4
M3.5 x 10mm
(A2) x 2
M3 x 30mm
(C1) x 6
M3 x 30mm
(A2) x 2
M3 x 30mm
(A1) x 8
M4 x 14mm
Figure 2
Figure 1
Front Cabinet Ass’y
(A3) x 1
From Side Cabinet Ass’y
(A3) x 1
From Side Cabinet Ass’y
Side Cabinet Ass’y (Left)
Side Cabinet Ass’y (Right)
Subwoofer (Right)
Subwoofer (Left)
Back Cabinet Ass’y
Back Cabinet Ass’y
Top Cabinet Ass’y
Front Cabinet Ass’y
CAUTION:
TO REMOVE SPEAKER UNIT, PRESS THESE LOCKING TABS
TO RELEASE SPEAKER WIRES.
SPEAKER UNIT
LOCKING
TA B
LOCKING TAB
SPEAKER
WIRE
STEP REMOVAL PROCEDURE FIGURE STEP REMOVAL PROCEDURE FIGURE
1 Side Cabinet Ass'y (A1)x16 1 8 Speaker (H1)x2 3
(Left/Right) (A2)x4 1 (Left/Right) (H2)x8 3
(A3)x2 2 (H3)x8 5
2Subwoofer (B1)x8 2 (H4)x4 5
(Left/Right) (B2)x4 9 iPod PWB (J1)x1 6
3 Back Cabinet Ass'y (C1)x6 1 (J2)x1 6
(C2)x9 3,5,11,12 (J3)x2 7
(C3)x2 11 10 Top Cabinet Ass'y (K1)x2 8
4Display PWB (D1)x1 3 11 CD Mechanis m Unit (L1)x4 9
(D2)x6 3 12 Door Switch PWB (M1)x1 9
(D3)x2 4 13 Main PWB (N1)x1 8
(D4)x1 4 (N2)x2 8
5 Key PWB (E1)x1 4 (N3)x1 10
(E2)x3 (N4)x7 10
6 USB PWB (F1)x1 3 (N5)x4 11
7Transit PWB (G1)x1 5 14 SMPS PWB (P1)x4 12
(G2)x3 (P2)x1
(G3)x1 15 Subwoofer Flash(Q1)x413
PWB (R-CH / L-CH )
16 AC Inlet PWB (R1)x2 14
17
Battery Terminal 1
(S1)x2 14
and 2 PWB
(S2)x8
1. Speaker Cup .....................
2. Screw.................................
3. Screw.................................
4. Terminal ............................
1. iPod Door...........................
2. iPod Holder Ass'y ..............
3. Screw.................................
1. Screw.................................
1. Screw.................................
1. Screw.................................
1. Screw.................................
2. Mic Knob............................
3. Bracket ..............................
4. Screw.................................
5. Screw.................................
1. Screw.................................
2. Socket ...............................
1. Screw.................................
1. Screw.................................
1. Battery Cover.....................
2. Screw.................................
1. Screw.................................
2. Screw.................................
3. Socket ...............................
1. Screw.................................
2. Terminal ............................
1. Screw.................................
2. Socket ...............................
3. Flat Cable ..........................
1. PWB Holder Ass'y .............
2. Screw.................................
3. Screw.................................
4. Flat Cable ..........................
1. Function Button .................
2. Screw.................................
1. Screw.................................
1. iPod Cover.........................
2. Screw.................................
3. Socket ...............................
