– 7 –
HT-CN300

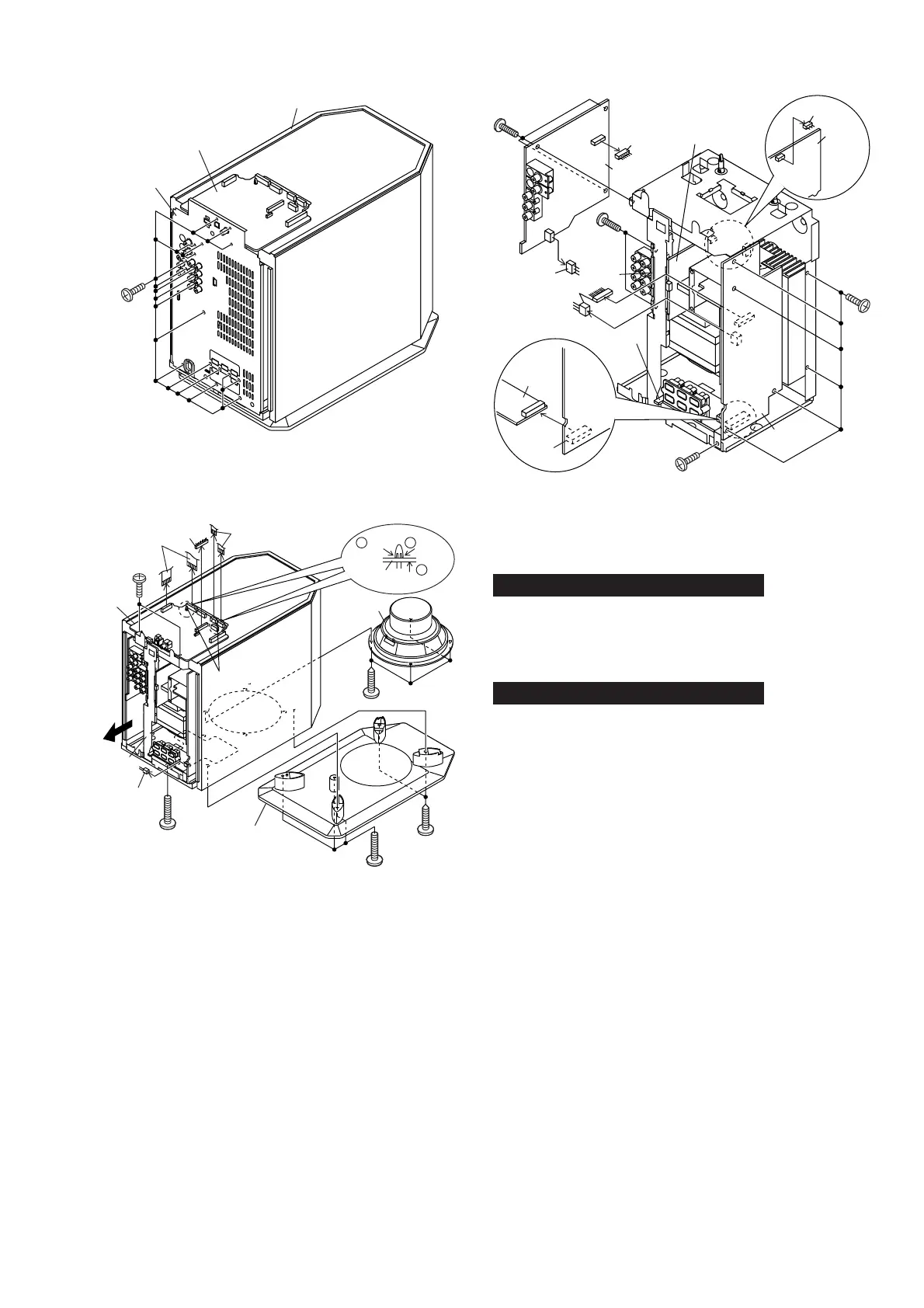

Figure 7-2
Figure 7-3
Figure 7-1
DSP PWB
Rear Panel
Subwoofer Box
(D1)x19
ø3x8mm
DSP PWB
DSP PWB
Push
Pull
(E3)x2
PWB
Unit
(E3)x2
(E4)x2
(E2)x1
(E1)x2
ø3x8mm
1 Push1
2
(F2)x2
ø4x16mm
(L1)x4
ø4x12mm
Subwoofer Stand
Subwoofer
(F1)x3
ø4x20mm
(F1)x1
ø4x20mm
(F3)x1
(G1)x3
ø3x8mm
(G2)x1
(G2)x1
(J2)x2
(H1)x2
ø3x8mm
(K1)x1
ø3x8mm
(J1)x6
ø3x8mm
(J2)x1
Tuner
PWB
Tuner PWB
(J2)x1
AMP.
PWB
AMP.
PWB
Speaker
PWB
Audio
PWB
Video
PWB
Speaker
PWB
CP-CN300F/CP-CN300C/CP-CN300R
These speakers CP-CN300F/CP-CN300C/CPCN300R is
available in assembles only and may not be disassembled.
Remote control sensor
This Remote control sensoe is available in assembles only
and may not be disassembled.
