Sharp HT-SB60 Service Manual

HT-SB60
1 – 3

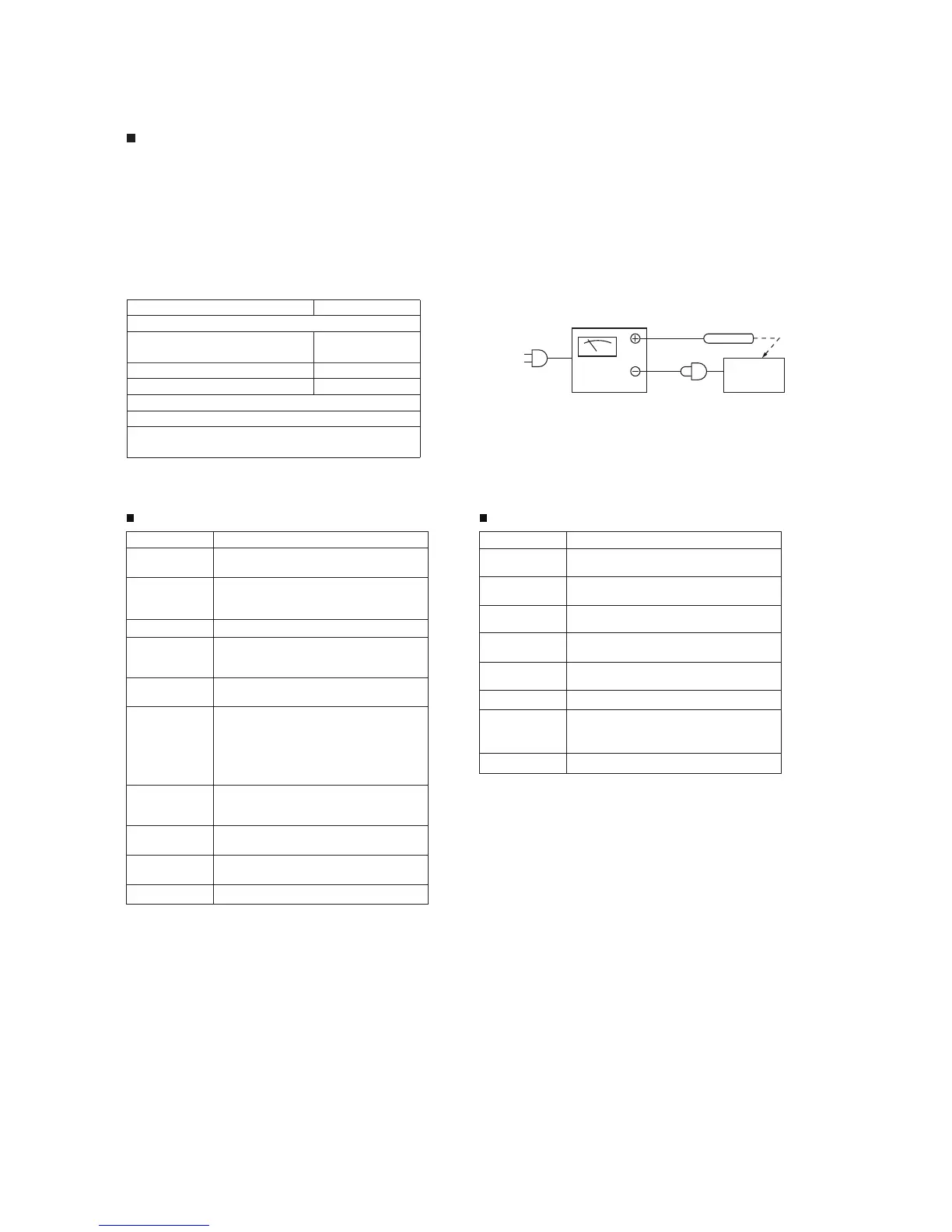

CHAPTER 1. GENERAL DESCRIPTION
[3] Specifications
WARNING
This unit contains no user serviceable parts. Never remove covers unless qualified to do so.
This unit contains dangerous voltages, always remove mains plug from the socket before any service
operation and when not in use for a long period.
Sound Bar Subwoofer
[2] Important Service Notes (for U.K. only)
[1] Safety Precaution For Service Manual
Before returning the unit to the customer after completion of a repair or adjustment it is necessary for the following withstand voltage test to be
applied to ensure the unit is safe for the customer to use.
Setting of Withstanding Voltage Tester and set.
Set name set value
Withstanding Voltage Tester
Te st voltage 4,240 VPEAK
3,000 VRMS
Set time 6 secs
Set current (Cutoff current) 4 mA
Unit
Judgment
OK: The “GOOD” lamp lights.
NG: The “NG” lamp lights and the buzzer sounds.
PROBE
AC
OUT
UNIT
SHORT-CIRCUIT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO SHELL OF AUDIO LINE IN
WITHSTANDING
VOLTAGE TESTER
Power source AC 220 - 240 V ~ 50/60 Hz
Power
consumption
Power on: 38 W
Power standby: 0.4 W (*)
Dimension
Output
terminal
HDMI™ (audio/video support up to
1080p) x 1
Input
terminal
Power source AC 220 - 240 V ~ 50/60 Hz
Power
consumption
33 W
Output power RMS: 150 W (10% T.H.D.)
RMS: 120 W (1% T.H.D.)
Type
Subwoofer system
16 cm (6 - 5/16") woofer
Maximum
input power
300 W
150 W
Width: 1385 mm (54 - 1/2")
Height: 73 mm (2 - 7/8")
Depth: 68 mm (2 - 11/16")
Weight
3.6 kg (7.92 lbs.)
Output power
analogue input (AUDIO IN): x 1
500 mV / 47 kohms
Optical digital input (OPTICAL):
Square type x 1
HDMI input: (audio/video support up to
1080p) x 2
Type
2 Way speaker system
5.7 cm (2 -1/4") woofer
2.5 cm (1") Soft Dome
160 W
Maximum
input power
Rated input
power
80 W
Impedance
4 ohms
(*) This power consumption value is obtained when the
sound bar is in low power con
sumption mode. (Demo
indicator turns off).
Dimensions Width: 144 mm (5 - 11/16")
Height: 430 mm (16 - 15/16")
Depth: 306 mm (12 - 1/16")
Weight 6.1 kg (13.42 lbs.)
RMS: Total 160 watts
RMS: 160 W (80 W + 80 W) (10% T.H.D.)
RMS: 120 W (60 W + 60 W) (1% T.H.D.)
Rated input
power
3 ohms
Impedance
1 – 1

Sharp HT-SB60 Specifications

General

Audio decoders	Dolby Digital, DTS
RMS rated power	310 W
Audio output channels	2.1 channels
Soundbar speaker RMS power	160 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	No
Product color	Black
Apple docking compatibility	Not supported
HDMI ports quantity	3
USB 2.0 ports quantity	0
Connectivity technology	Wired & Wireless
Digital audio optical in	1
