Sharp HT-SB60 Service Manual

HT-SB60
8 – 9
[5] Wiring Side Of PWB

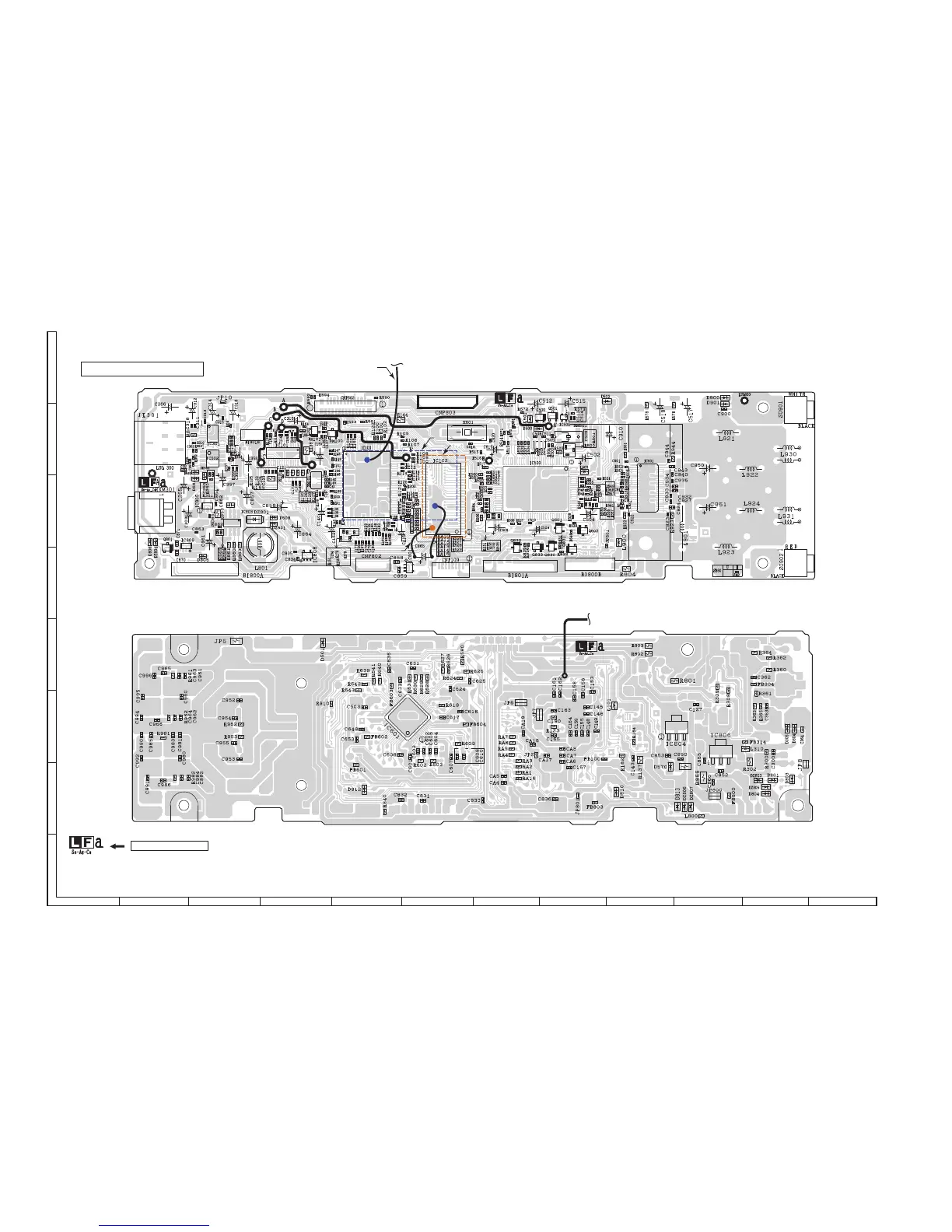

Figure 8-8: WIRING SIDE OF MAIN / AMPLIFIER PWB
24
12345
12345 678 910
1
5
67432
1
432
13579 11 13
246
8
10 12 14
21
1212
MAIN/ AMPLIFIER PWB-A1
Lead-free solder indication
Lead-free solder is used in the MAIN/AMPLIFIER PWB.
Refer to "Precautions for handling lead-free solder" for instructions
and precautions.
Top View
Bottom View
CS1
CS2
WIRE G
WIRE G
WIRE E
BK
BK
BK
WIRE F
TO CS1
TO
BOTTOM PWB
IMPORTANT NOTE
AFTER SERVICING MAIN PWB, PLEASE ENSURE THE COPPER
SHEETS (CS1 & CS2) MUST REARRANGED TO WHERE THEY
WERE BEFORE DESOLDERING.
7
8 9101112
A
B
C
D
E
F
G
H
1
2
3
456

Sharp HT-SB60 Specifications

General

Audio decoders	Dolby Digital, DTS
RMS rated power	310 W
Audio output channels	2.1 channels
Soundbar speaker RMS power	160 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	No
Product color	Black
Apple docking compatibility	Not supported
HDMI ports quantity	3
USB 2.0 ports quantity	0
Connectivity technology	Wired & Wireless
Digital audio optical in	1
