Sharp HT-SB60 Service Manual

HT-SB60
8 – 10

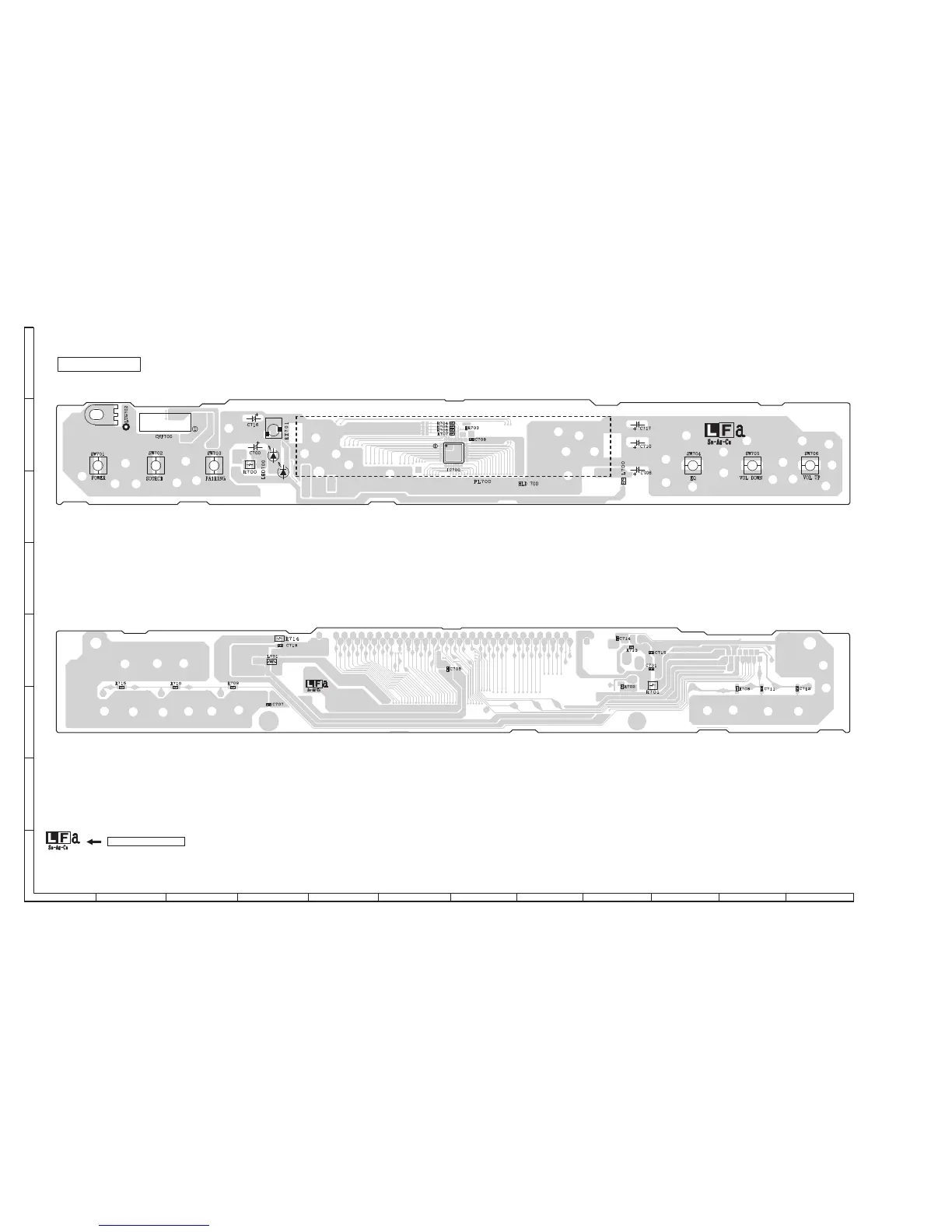

Figure 8-9: WIRING SIDE OF DISPLAY PWB
Top View
Bottom View
1
DISPLAY PWB-A2
Lead-free solder indication
Lead-free solder is used in the DISPLAY PWB.
Refer to "Precautions for handling lead-free solder" for instructions
and precautions.
7
8 9101112
A
B
C
D
E
F
G
H
1
2
3
456

Sharp HT-SB60 Specifications

General

Audio decoders	Dolby Digital, DTS
RMS rated power	310 W
Audio output channels	2.1 channels
Soundbar speaker RMS power	160 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	No
Product color	Black
Apple docking compatibility	Not supported
HDMI ports quantity	3
USB 2.0 ports quantity	0
Connectivity technology	Wired & Wireless
Digital audio optical in	1
