Sharp LC-19DV200E Service Manual

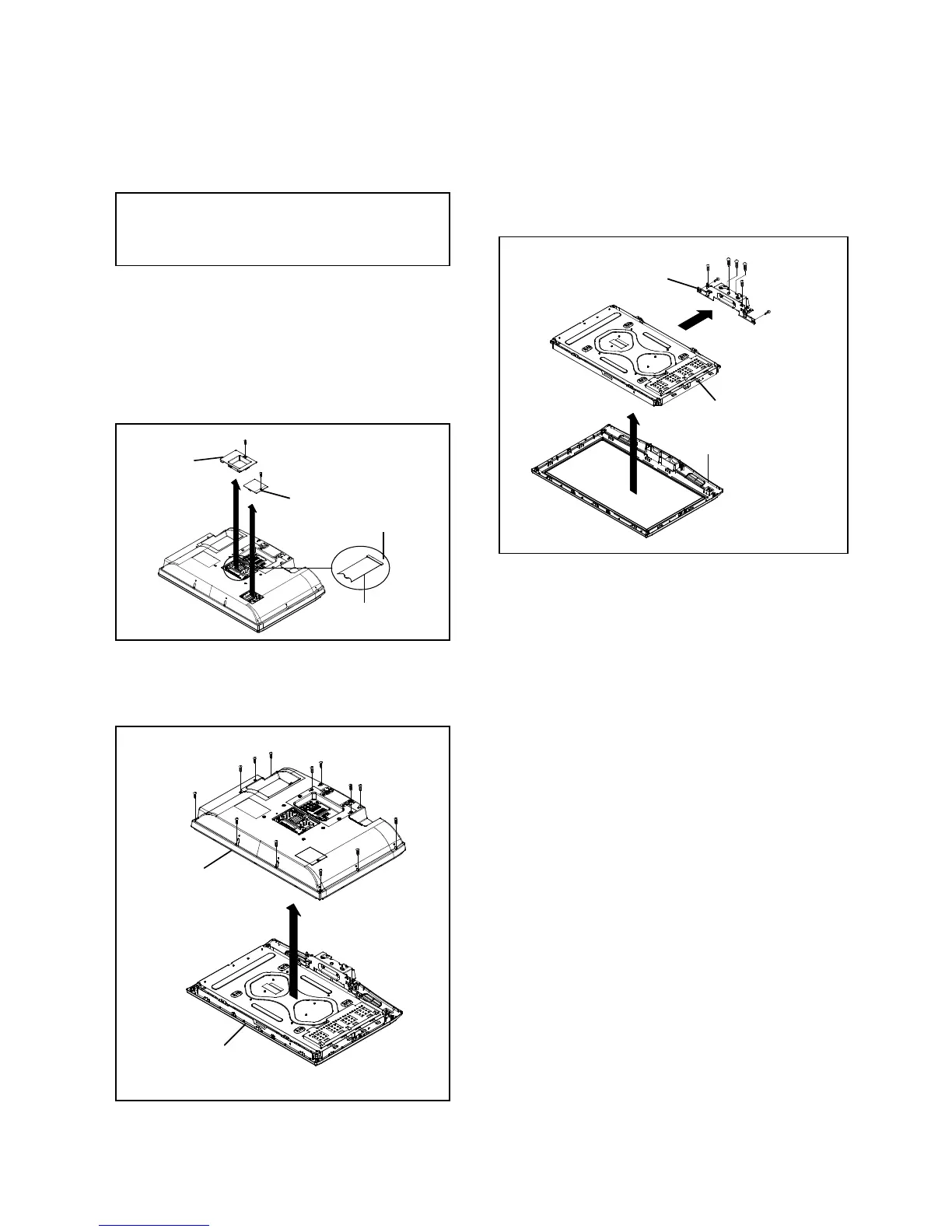

1. REMOVAL OF MECHANICAL PARTS
AND P.C. BOARD
S
1.
Remove the 2 screws (1).
2.
Remove the 5 screws (2).
3. Remove the Angle-Hinge in the direction of arrow (A).
CAUTION
4. Remove the LCD Block in the direction of arrow (B).
Be careful not to remove the LVDS cable forcibly, because
the LVDS cable may be damaged.
1-1: COVER INVERTER/COVER LVDS
(
Refer to Fi
g
. 1-1
)
1.
Remove the screw (1).
2.
Remove the Cover Inverter in the direction of arrow (A)
.
3.
Disconnect the followin
g
connector:
(
CP3803
)
.
4.
Remove the screw (2).
5.
Remove the Cover LVDS in the direction of arrow (B)
.
6.
Release the lock of connector disconnect the followin
g
connector: (CP2804).
DISASSEMBLY INSTRUCTIONS
1-3: LCD BLOCK (Refer to Fig. 1-3)
(1)
(2)
Fig. 1-3
(A)
(B)
Front Cabi Ass'y
(B)
Connector
Cover Invertor
Cover LVDS
LCD Block
(A)
(1)
(1)
(2)
(2)
(2)
(2)
(2)
Angle-Hinge
B1-1
1.
Remove the 13 screws (1).
2. Remove the Back Cabi Ass'y in the direction of arrow .
1-2: BACK CABI ASS'Y
(
Refer to Fi
g
. 1-2
)
Fig. 1-1
LVDS CABLE
Back Cabi Ass'y
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1) (1)
(1)
(1)
Front Cabi Ass'y
Fig. 1-2
B1-1
