LC-19LE430E/UK, LC-22LE430E/UK, LC-26LE430E/UK, LC-32LE430E/UK
14

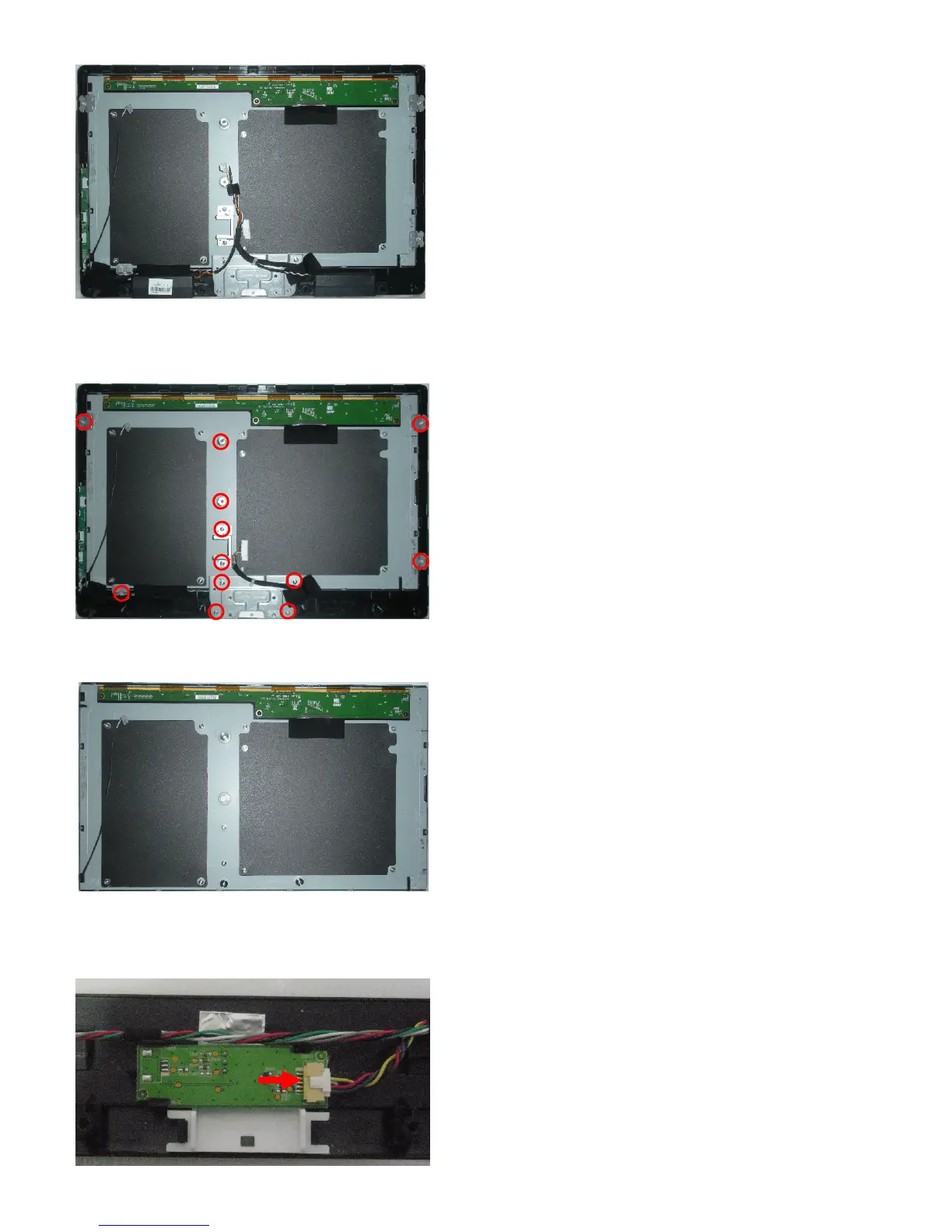

3. Release the speaker cable from its clamp, pull up and remove the speaker as Fig.10.
Fig.10
Step 4. Remove the Bracket and Bezel.
1. Remove the 9 screws. Detach the Bracket and panel as Fig.11.
Fig.11
2. Remove the panel from the bezel as Fig.12.
Fig.12
Step 5. Remove the IR and Key board.
1.Disconnect 1 cable. Detach the IR board as Fig.13.
Fig.13
