LC-19LE430E/UK, LC-22LE430E/UK, LC-26LE430E/UK, LC-32LE430E/UK
23

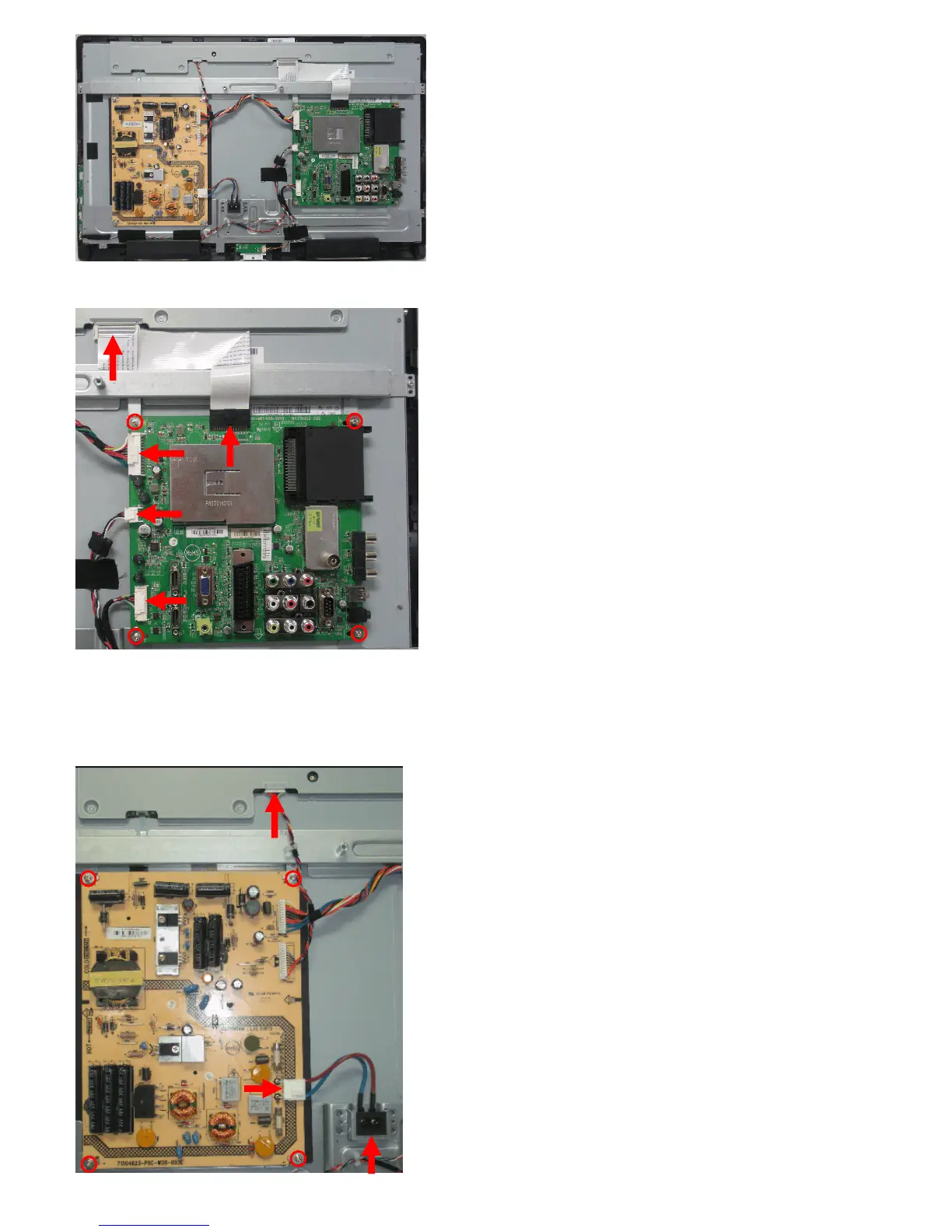

Fig.6
1. Disconnect 4 cables and remove the 4 screws. Detach the Main board as Fig.7.
Fig.7
2. Disconnect 2 cables and remove the 4 screws. Detach the Power board as Fig.8.
Note: Push out the AC port from the Bracket, then disconnect the AC cable with the power board.
Caution: Do not pull back cover with AC Inlet rough when you dismantle it from cabinet, as this way cause it to be damaged and the wire to
loose from it.
Fig.8
Main board
Power board
