LC-22DC30M
4 – 2

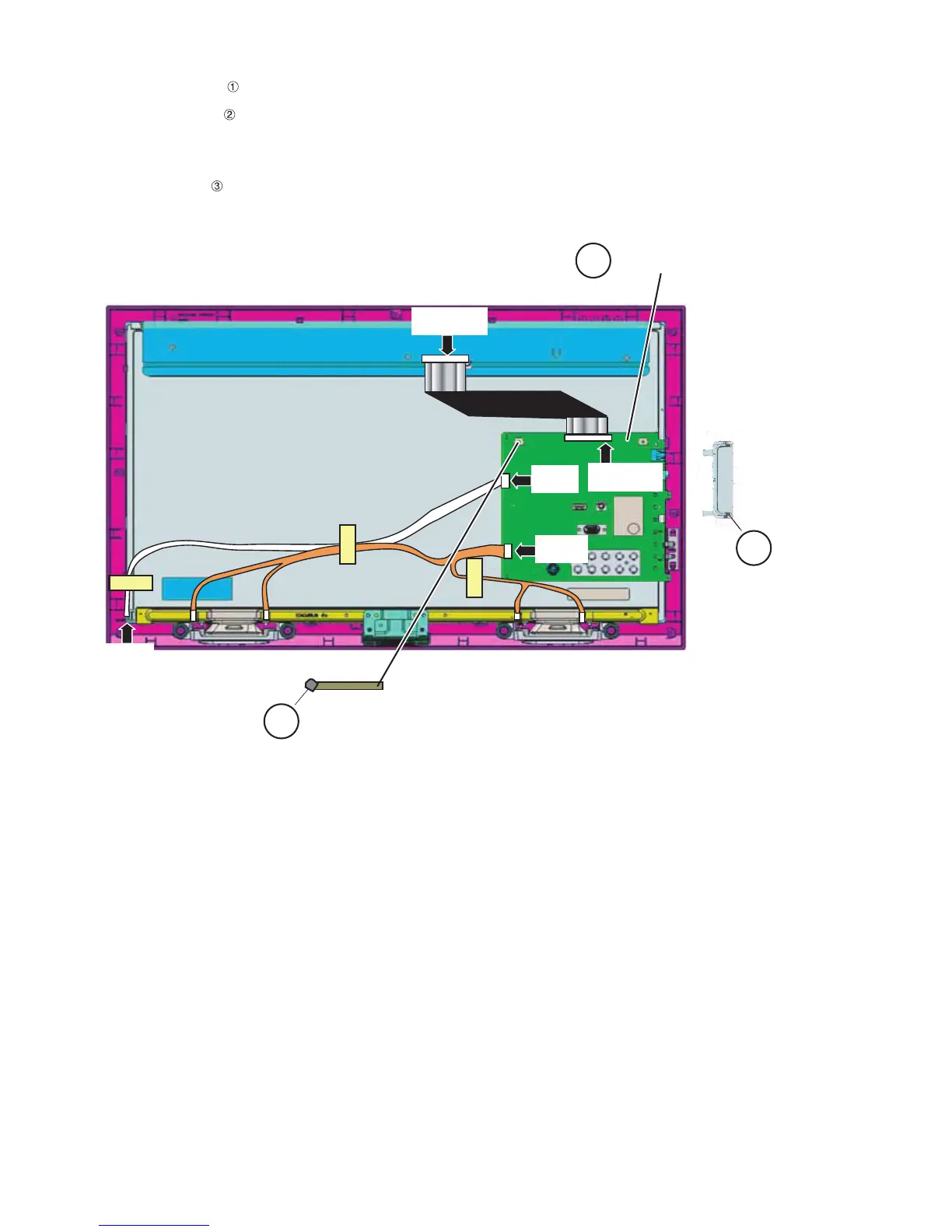

2. Removing of the Side Cover and MAIN Unit
1.
Remove the Side Cover
.
2.
Remove the EMC T
ape
.
3.
Disconnect the connectors (SB, SP
, L
VDS) from the Main Unit.
4.
Disconnect the connectors (SB,
L
VDS) from the LCD Panel Module.
5.
Detach the Main Unit
.
MAIN
Unit
1
Side
Cover
2
EMC
T
ape
[SB]
[L
VDS]
[L
VDS]
[SP]
[SB]
3
10
12
Table of Contents
Default Chapter
1
Table of Contents
1
Service Manual
1
Before Returning the Receiver
2
Safety Notice
2
Safety Precaution Important Service Safety Pre- Caution
2
Employing Lead-Free Solder
3
Lead-Free Wire Solder for Servicing
3
Soldering
3
Using Lead-Free Wire Solder
3
Outline
4
Major Service Parts
4
Pwb Unit
4
Other Unit
4
Chapter 1. Specifications Specifications
5
Part Names
6
TV (Front)
6
TV (Rear)
6
Chapter 2. Operation Manual
6
Operation Manual
6
Remote Control Unit
7
Attaching the Stand
8
Three Screen Position Settings
8
Chapter 3. Dimensions Dimensions
9
Removing of Major Parts
10
Removing of the Rear Cabinet Ass’y
10
Rear Cabinet Ass'y
10
Chapter 4. Removing of Major Parts
10
Removing of the Side Cover and MAIN Unit
11
Removing of the Bottom Bracket and Speaker L/R
12
Removing of the LCD Panel Module and Support Angle
13
Adjustment Procedure
14
Entering and Cancel the Adjustment Process Mode
14
Software Upgrading
14
Key Operation
14
Edid Data Input
15
Hdmi Edid
15
Analog Pc Edid
15
Signal Adjustment
16
Signal Check
16
Adjustment Mode
16
Component 15K 50Hz Signal Adjustment
16
Chapter 5 . Adjustment
16
Adjustment Procedure
16
White Balance Adjustment
17
Factory Setting
18
Description
19
How It Works
19
USB Clone (Smart Loader)
19
Public Mode Setting Procedure
20
How to Start Public Mode
20
How to Exit Public Mode
20
Public Mode Setting Values
20
Public Mode Menu
21
On Setting Items
21
Power on Fixed
21
Maximum Volume
21
Volume Fixed
22
Volume Fixed Level
22
R/C Button
22
Panel Button
22
On Screen Display
23
Blue Screen
23
Input Mode Start
23
Input Mode Fixed
23
Rc Path through
24
No Power
25
Chapter 6. Troubleshooting Table Troubleshooting Table
25
No Video Onscreen
26
No Audio Heard
29
Chapter 7. Overall Wiring/Block Diagram
33
System Block Diagram
34
MAIN Unit
35
Chapter 8. Printed Wiring Board Assemblies
35
Description of Schematic Diagram
37
Voltage Measurement Condition
37
Indication of Resistor & Capacitor
37
Chapter 9. Schematic Diagram
37
MAIN Unit
38
Parts Guide
49
Cabinet and Mechanical Parts
58
Supplied Accessories
60
Packing Parts
61
