CHAPTER 2. OPERATION MANUAL
[1] OPERATION MANUAL

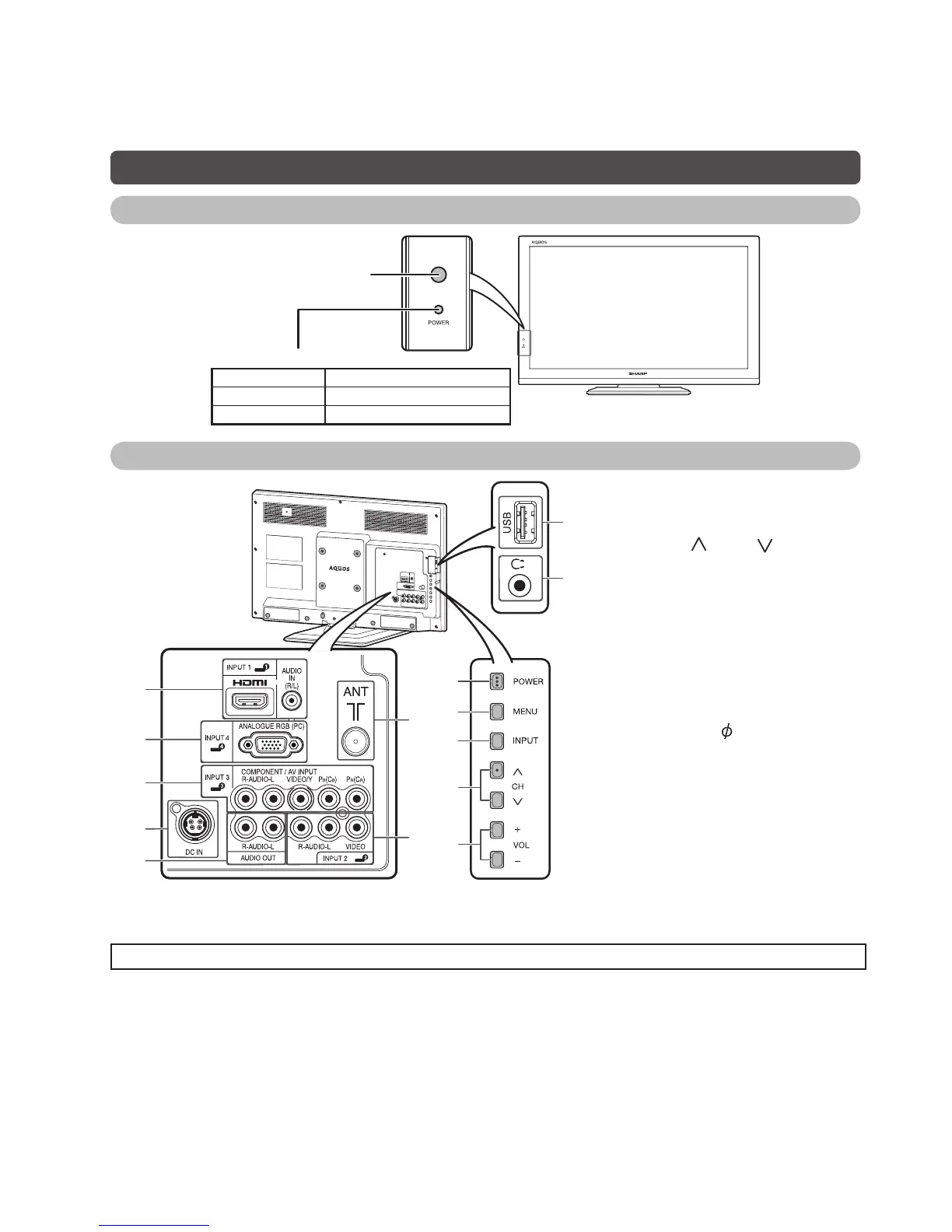

Part names
TV (Front)
POWER indicator
Light off Power off
Lighted (Red) The TV is in standby mode.
Lighted (Green) The TV is on.
Remote control sensor
TV (Rear)
1
2
3
4
5
6
7
8
11
12
10
9
14
13
1 POWER (On/Off) button
2 MENU button
3INPUTbutton
4 Channel up ( )/down ( ) buttons
5 Volume up (
+
)/down (
-
) buttons
6 INPUT 1 (HDMI) terminal*
7 INPUT 4 terminal*
8 INPUT 3 terminals
9 DC IN terminal
10 AUDIO OUT terminals
11 Antenna input terminal
12 INPUT 2 terminals
13 USB terminal
14 Headphone jack ( 3.5 mm)
The speakers do not output volume
when headphones are plugged in.
* The INPUT 1 and INPUT 4 terminals can both use the same audio input terminal. However, the proper item must be
selected in the "PC audio select" menu.
The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
•
•
To Next Page
