Sharp LC-22DV200E Service Manual

1-8: REMOCON PCB and OPERATION PCB
(Refer to Fig. 1-8)
1. Remove the screw (1).
2. Remove the Remocon PCB in the direction of arrow (A).
3. Push 9 supports (2).
4. Remove the Panel Side Ass'y in the direction of arrow (B).
5. Remove the 2 screws (3).
6. Remove the Operation PCB in the direction of arrow (C).
DISASSEMBLY INSTRUCTIONS
(A)
(3)
(B)
(C)
Back Cabinet Ass'y
(1)
(3)
Remocon PCB
Operation PCB
(2)
B1-3
(2)

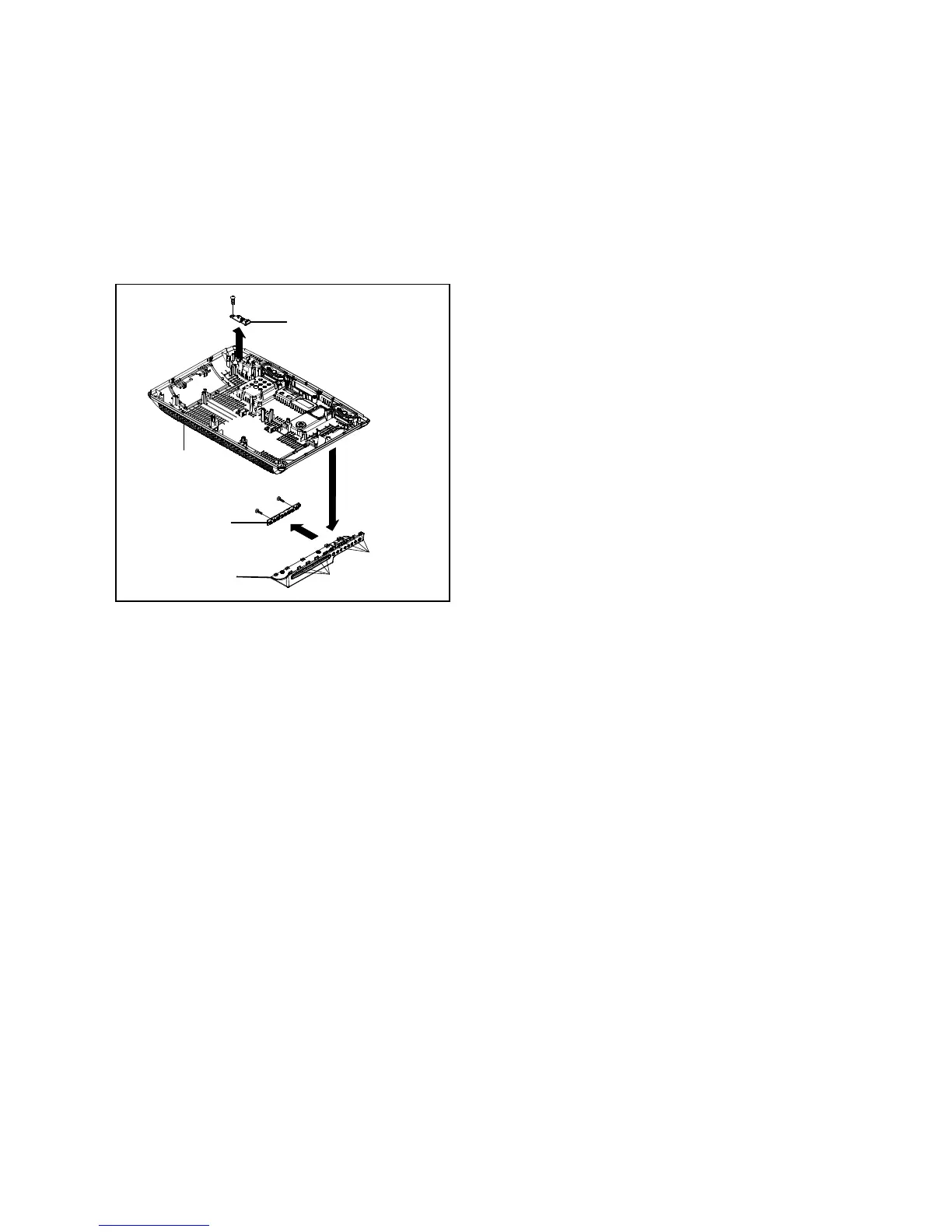

Fig. 1-8
Panel Side Ass'y
(2)
B1-3
