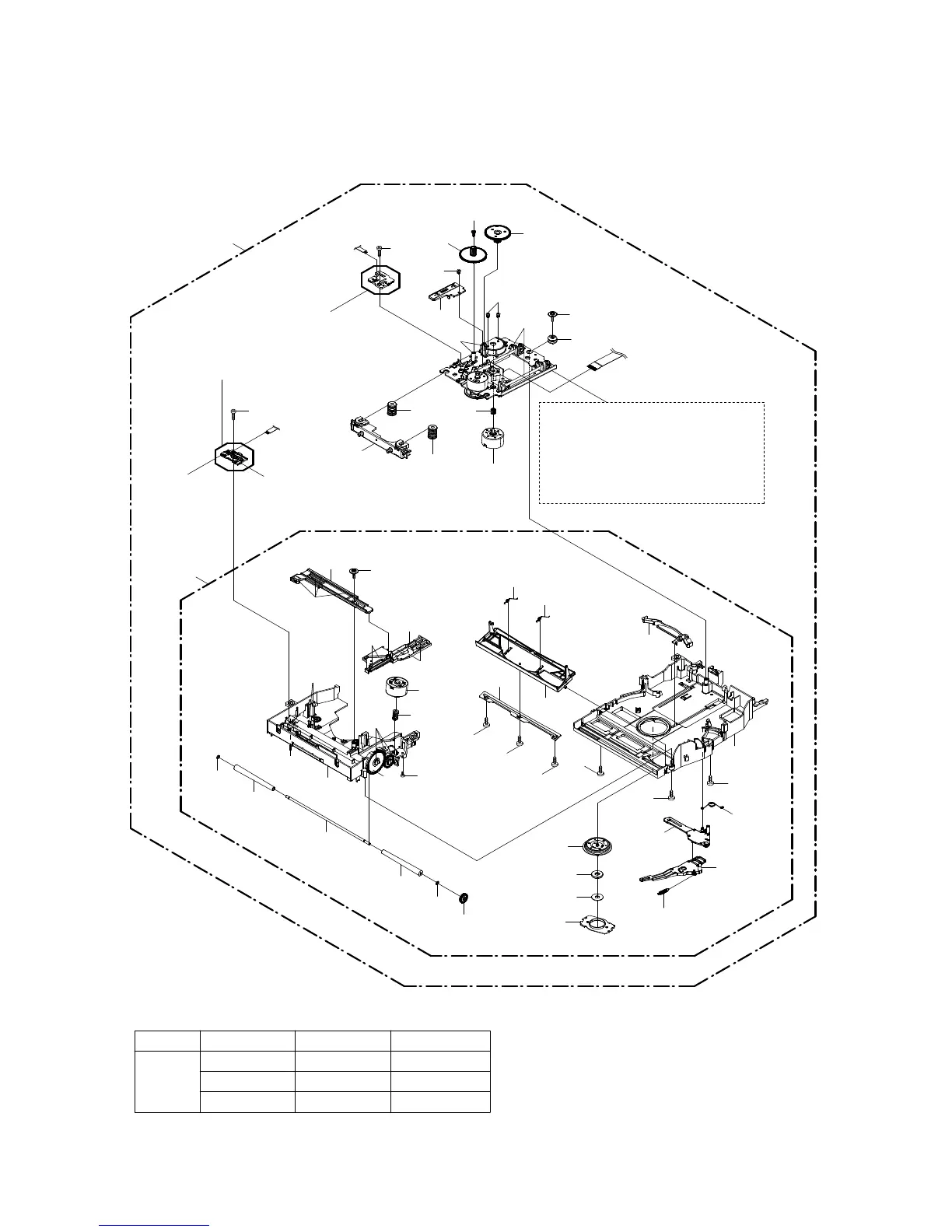

DVD DECK EXPLODED VIEW
J2-1
Applying positions AA, AB and AC for
the grease are displayed for this section.
Check if the correct grease is applied
for each position.
NOTE:
619
610
617
627
616
615
709
709
709
612
614
626
611
613
706
706
706
609
704
M2602
605
607
607
602
AB
AB
604
701
603
601
703
702
CD2303
PCB630
606
705
CD2301
M2603
620
708
622
621
629
624
618
AA
AA
624
623
608
600
CD2302
707
PCB610
(LOADING MOTOR PCB ASS'Y)
SW001
SW002
Do not replace the parts. Because,
minute adjustments are needed if
this condition is disassembled
further more.
If the repair is needed, replace the
DVD MECHA ASS'Y.
AC
AC
AC
AA
AA
CLASS
MARK
GREASE
G-313Y
AA
PART NO.
Y315141000
PART NAME
G-555G
AB
Y315061000
625
625
CFD-5007Z
AC
Y31D041000
628
704
623
