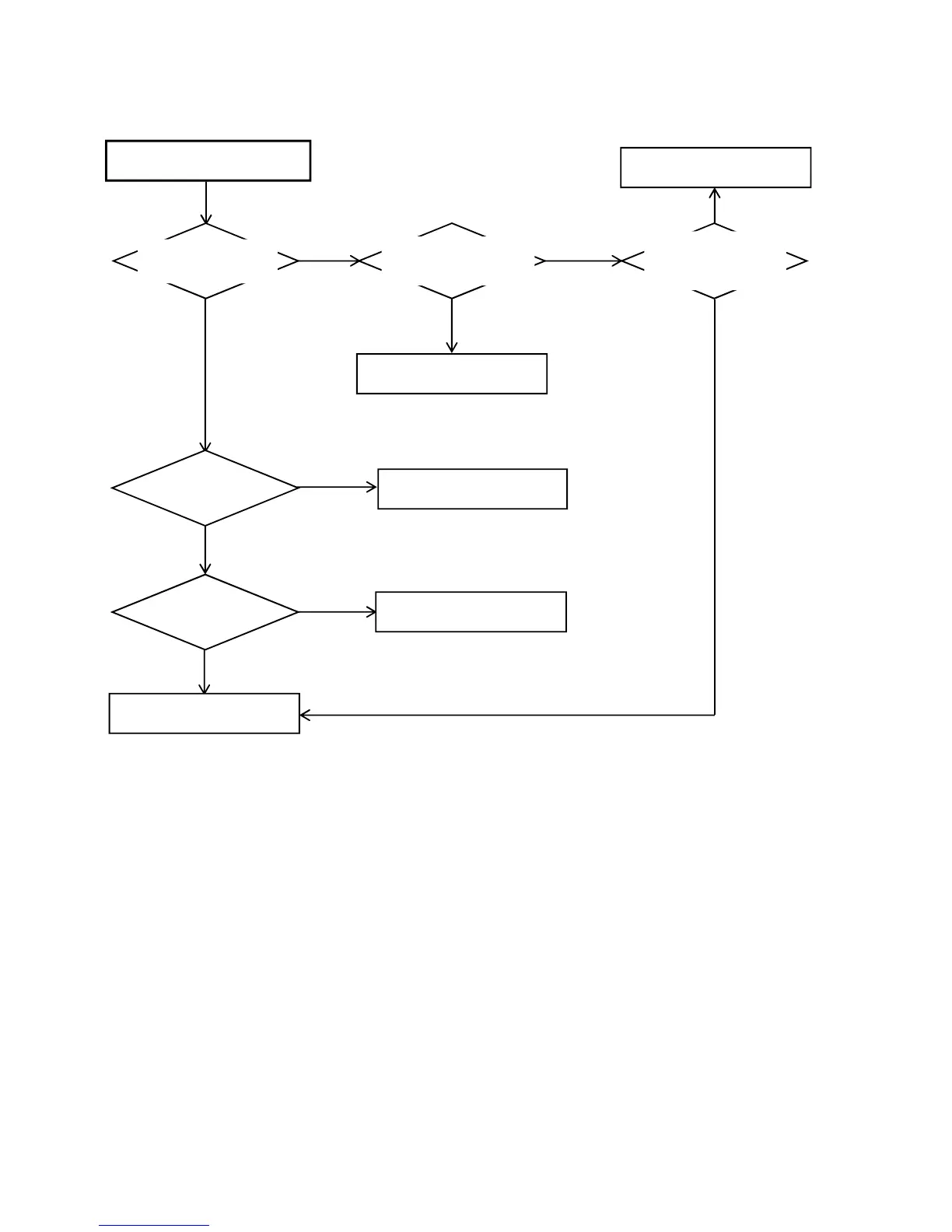

TROUBLESHOOTING GUIDE
Does this display
"INCORRECT DISC"?
Does CD2001 connect
with CP2301 correctly
?
Yes
No
No
Yes
DOES NOT
PLAY CD
Does this display
reading mark?
No
Yes
Connect CD2001.
Change DVD DECK.
Is the voltage betw
een
JG2301and JG2329
less than 0.3V?
Yes
No
Change IC4001.
E-8
Does disc rotate?
No
Change IC4001.
Yes
Change DVD DECK.
E-8
33
35
Table of Contents
Table of Contents
1
Impotant Warning
2
Servicing Notices on Checking
3
How to Order Parts
3
Important
3
When Replacing DVD Deck
4
Preparation of Servicing
4
Disc Removal Method at no Power Supply
5
ABOUT LEAD FREE SOLDER (Pbf)
6
Hotel Mode Function
7
General Specifications
8
Disassembly Instructions
14
Service Mode List
24
Servicing Fixtures and Tools
25
Re-Write for DVD Firmware
25
Parts Location Guide (Wiring Connection
26
Troubleshooting Guide
27
DVD Block Diagram
36
Printed Circuit Boards
46
Sound Amp
65
Schematic Diagrams
65
Waveforms
65
Mechanical Exploded Views
69
DVD Deck Exploded Views
70
