Sharp LC-22DV200E Service Manual

WAVEFORMS
SOUND AMP HDMI/JACK MPEG/MICOM/DSP
2ms 10us 5ns
500mV 0.2V G 200mV
20 26 50
2ms 10us 20ns
500mV 0.2V 200mV
21 27 51
HDMI/JACK SYSCON/POWER
1us 500us 5ns
0.2V 0.5V 200mV
22
SPDIF
28 54
10us 200ms 200ns
0.2V 1V 200mV
23 29 55
VIDEO/AUDIO NI/OUT
10us 200ms 10us
0.2V 1V 200mV
24 30 56
COMMON_I/F
50us 1ms 10us
0.2V 0.5V 200mV
25 31 57

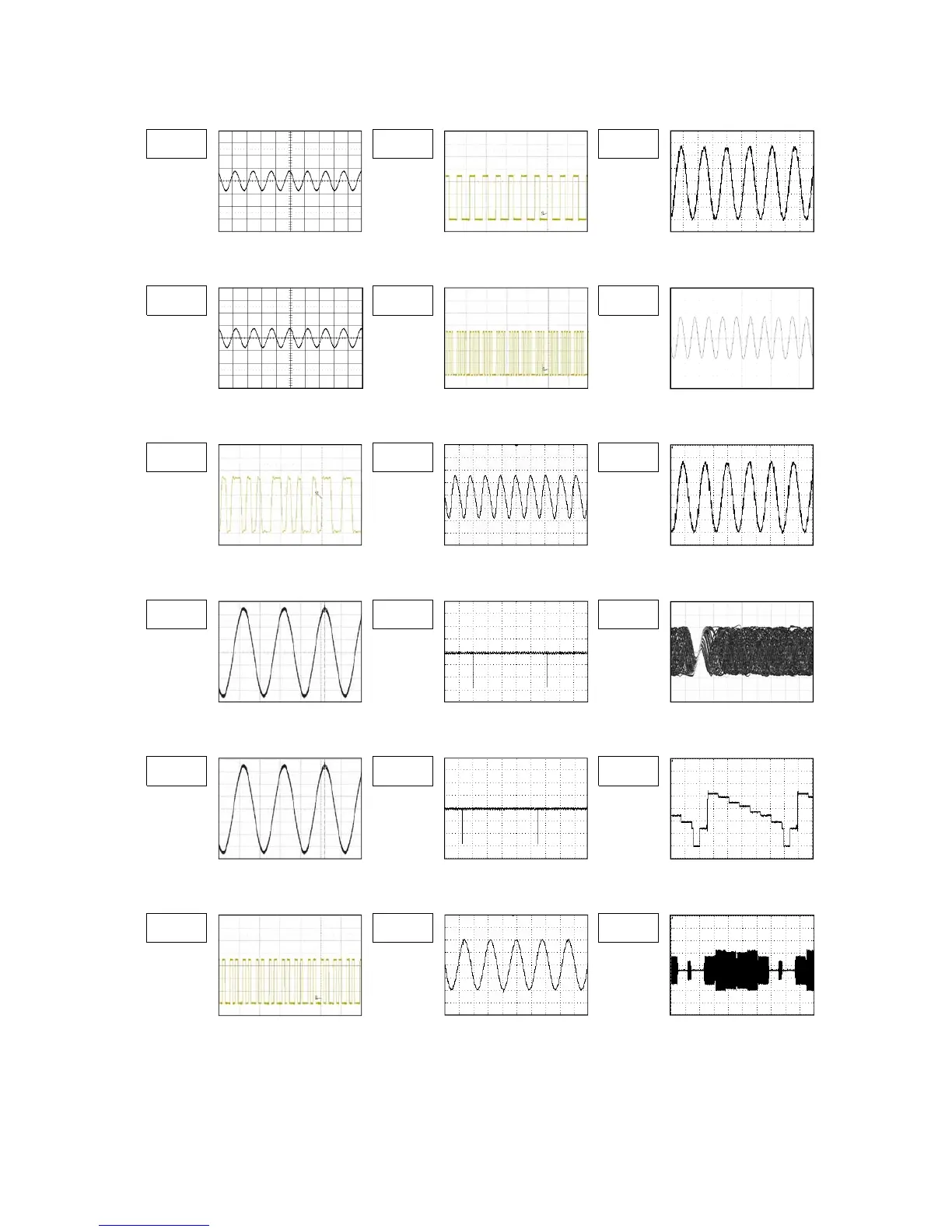

The following waveforms were measured at the point
of the corresponding balloon number in the
schematic diagram.
NOTE:
I-2
