Sharp LC-22LE240E User Manual

10
LC-22LE240
Operation Manual (Continued)
English - 9 -

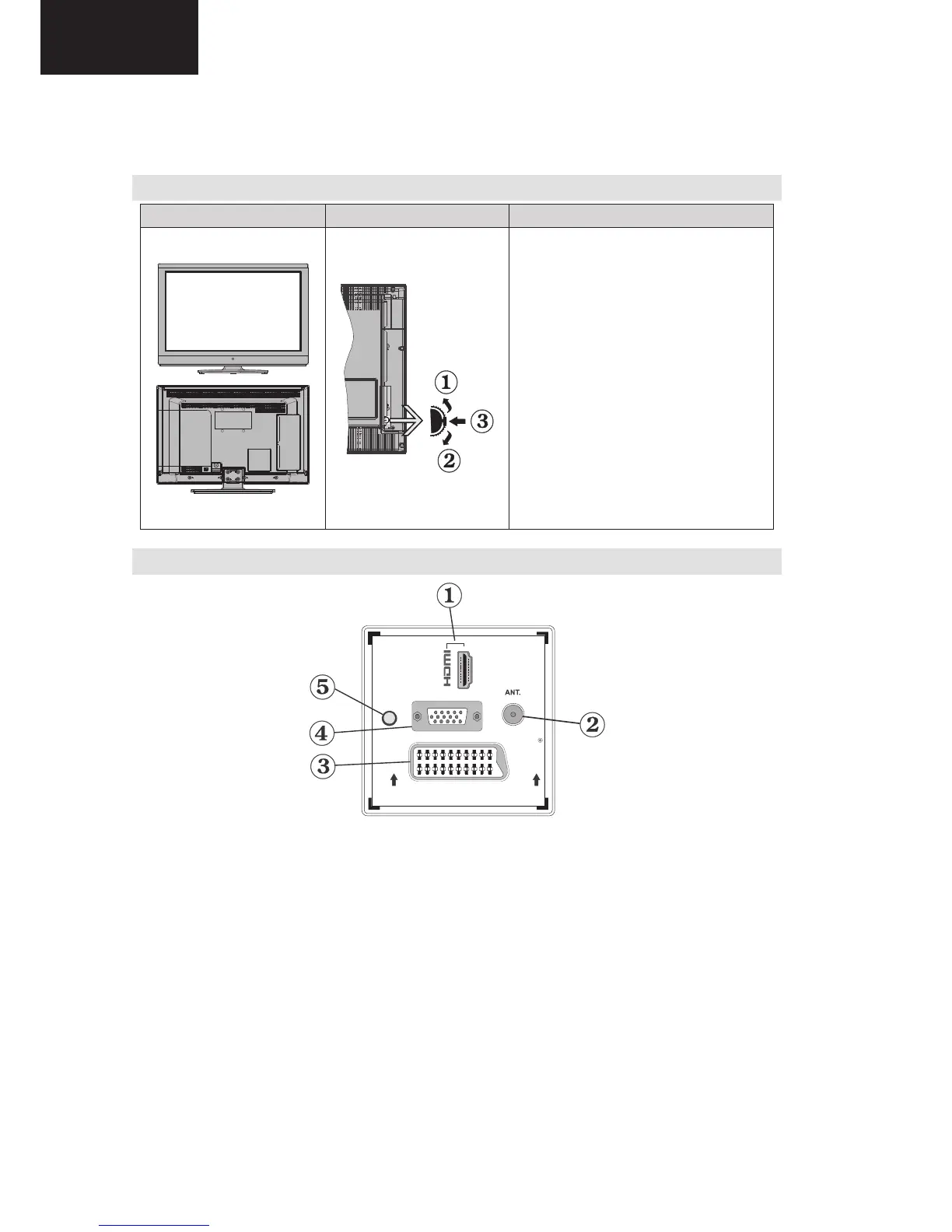

LCD TV and Operating Buttons
FRONT and REAR VIEW Control buttons VIEW Control Buttons
Up direction1.
Down direction2.
Programme/Volume / AV / 3.
Standby-On selection switch
Note:You can move the switch, upward
or downward to change the volume. If
you want to change channels, press the
middle of the switch once (Position 3)
and then move upward or downward. If
you press the middle of the switch once
more, source OSD will be displayed. To
select desired source, move the switch
upward or downward and release. If you
press the middle of the switch and hold
about a few seconds, the TV will switch to
standby mode. Main menu OSD cannot be
displayed via control buttons.
Viewing the Connections - Back Connectors
SPDIF
SCART
VGA
Coax.OUT
1
HDMI 1: HDMI Input4.
HDMI Inputs are for connecting a device that has an HDMI socket. Your LCD TV is capable of
displaying High De nition pictures from devices such as a High De nition Satellite Receiver or DVD
Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets
can accept either 720p or 1080i signals. No sound connection is needed for an HDMI to HDMI
connection.
RF Input5. connects to an aerial antenna system or a cable.
Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device
to the television with an appropriate antenna cable, as shown in the illustration in the following pages.
SCART 6. input or output for external devices. Connect the SCART cable between SCART socket on TV and
SCART socket on your external device (such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.
Note: S-VHS signal is supported via the scart socket (optional).
PC Input7. is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.
SPDIF Coaxial Out8. outputs digital audio signals of the currently watched source.
Use an
SPDIF coaxial cable
to trasfer audio signals to a device that has SPDIF input
A01_MB62_[GB]_1910UK_IDTV_TC_PVR_BRONZE19_22942LED_ROCKER_10075676_5020xxxx.indd 9 25.11.2011 14:50:01

Sharp LC-22LE240E Specifications

General

Screen shape	Flat
Response time	8 ms
Display diagonal	22 \
Display brightness	250 cd/m²
LED backlighting type	Edge-LED
Supported video modes	1080p
Contrast ratio (dynamic)	-
Display diagonal (metric)	55 cm
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Annual energy consumption	32 kWh
Product color	Black
Panel mounting interface	75 x 75 mm
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-T
RMS rated power	5 W
Number of speakers	2
HDMI version	1.3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Video formats supported	DIVX, H.264, MPEG2, MPEG4
Remote control type	RC1910
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth (with stand)	135 mm
Height (with stand)	379 mm
Weight (with stand)	5000 g
Depth (without stand)	36 mm
Width (without stand)	535 mm
Height (without stand)	347 mm
Weight (without stand)	- g
