Sharp LC-22LE240E User Manual

49
LC-22LE240
 High performance trench technology for extremely low rDS(on)
 SuperSOTTM-6 package: small footprint (72% smaller than standard SO-8);
low profile (1 mm thick)
 Termination is Lead-free and RoHS Compliant

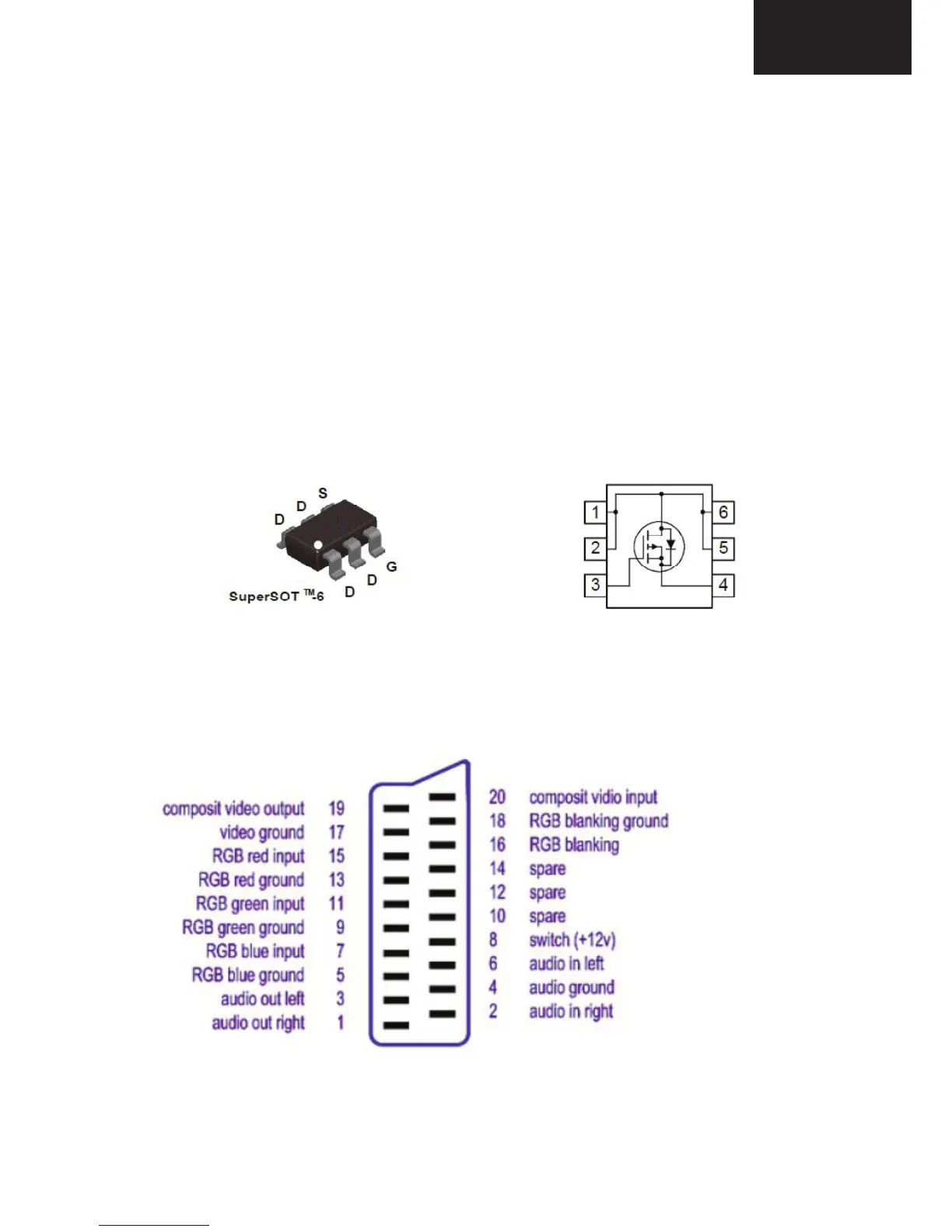

16.3. Pinning
17. FDC604P
17.1. General Description
This P-Channel 1.8V specified MOSFET uses Fairchild’s low voltage PowerTrench
process. It has been optimized for battery power management applications.
17.2. Features
 –5.5 A, –20 V. RDS(ON) = 33 mΩ @ VGS = –4.5 V
 RDS(ON) = 43 mΩ @ VGS = –2.5 V
 RDS(ON) = 60 mΩ @ VGS = –1.8 V
 Fast switching speed.
 High performance trench technology for extremely low RDS(ON)(S)
17.3. Pinning
18. CONNECTORS
18.1. SCART (SC1)
18.2. HDMI (CN707,CN708)

Sharp LC-22LE240E Specifications

General

Screen shape	Flat
Response time	8 ms
Display diagonal	22 \
Display brightness	250 cd/m²
LED backlighting type	Edge-LED
Supported video modes	1080p
Contrast ratio (dynamic)	-
Display diagonal (metric)	55 cm
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Annual energy consumption	32 kWh
Product color	Black
Panel mounting interface	75 x 75 mm
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-T
RMS rated power	5 W
Number of speakers	2
HDMI version	1.3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Video formats supported	DIVX, H.264, MPEG2, MPEG4
Remote control type	RC1910
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth (with stand)	135 mm
Height (with stand)	379 mm
Weight (with stand)	5000 g
Depth (without stand)	36 mm
Width (without stand)	535 mm
Height (without stand)	347 mm
Weight (without stand)	- g
