39
LC-22LE240
9. SCALER AND LVDS SOCKETS

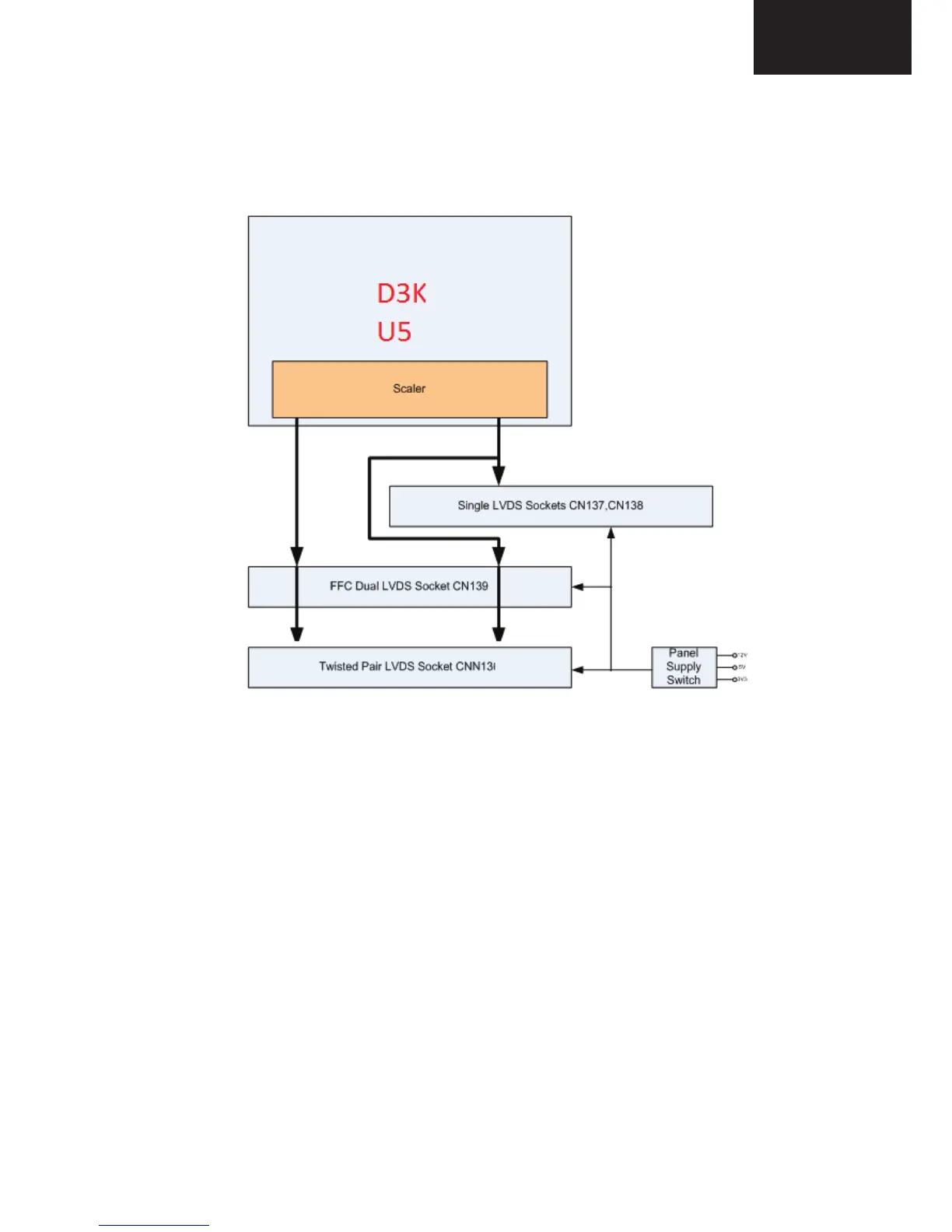

9.1. LVDS sockets Block Diagram
9.2. Panel Supply Switch Circuit
This switch is used to open and close panel supply of TCON. It is controlled by port of
main ucontroller. Also with this circit panel sequency could be adjusted correctly. 3 panel
supplys are connected to this circuit. All of them are optional according to panels.
