Sharp LC-26AF3 M/H/X - Page 14

14
LC-26AF3 M/H/X
LC-32AF3 M/H/X
LC-37AF3 M/H/X

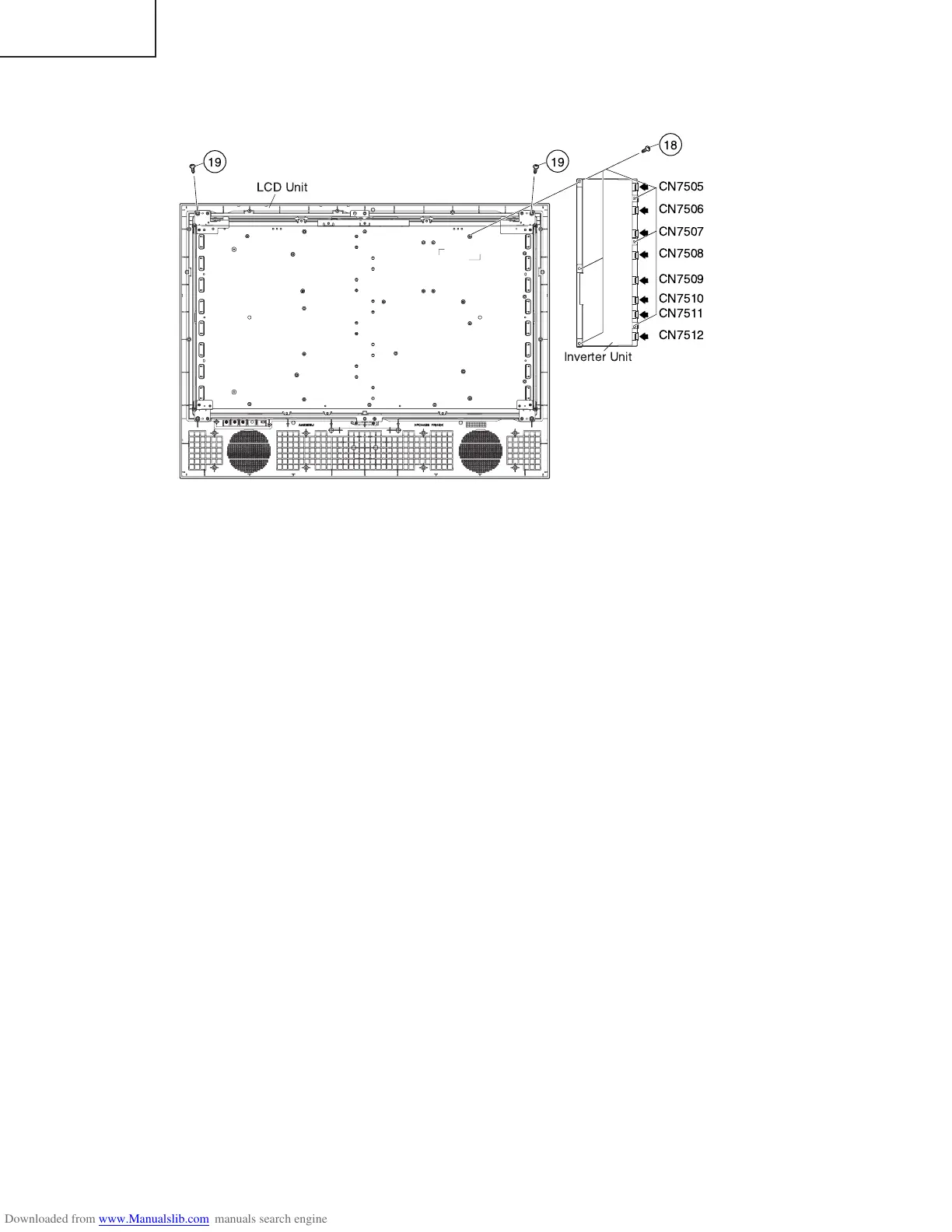

18.Loosen the 6 inverter unit ass’y fixing screws i, and unplug the connecting cables from the 8 lamp wire connectors
to remove the inverter unit and inverter shield.
19.Remove the 2 lock screws o and detach the LCD Unit.








 
 



