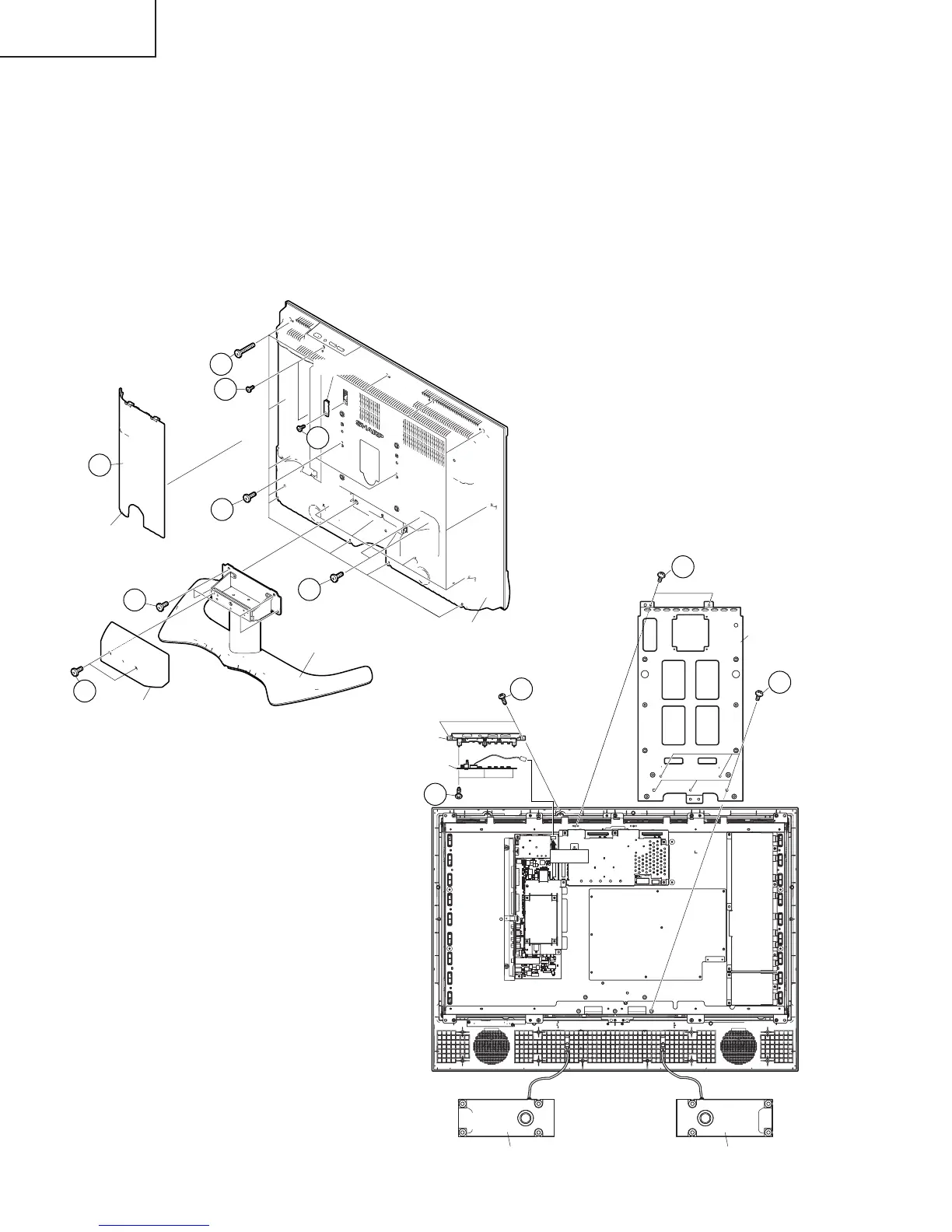

REMOVING OF MAJOR PARTS (LC-32/37AF3M/H/X)
1. Remove the Terminal Cover1.
2. Remove the 1 lock screw 2 and detach the ID Cover.
3. Remove the 2 lock screws 3 and detach the Hinge Cover.
4. Remove the 4 lock screws 4 and detach the stand.
5. Remove the 21 lock screws 5 and detach the Rear Cabinet.
6. Remove the 7 lock screws 6and detach the Center Angle.
7. Loosen the 2 top cover ass’y fixing screws 7, and unplug the connecting cable from the KM (P1200) connector
of the AV unit to remove the top cover ass’y.
8. Remove the 3 lock screws 8 from Top Cover, and detach the KEY Unit.
9. Remove the 2 intermediate connector junctions of the speaker boxes to detach the right and left speaker boxes.
P1200
KEY Unit
Top Cover Ass’y
Speaker Box-R Speaker Box-L
Center Angle
7
7
8
9
Rear Cabinet
ID Cover
Terminal Cover
Stand
Hinge Cover
3
2
6
6
4
5
1
2
