Sharp LC-26AF3 M/H/X User Manual

17
LC-26AF3 M/H/X
LC-32AF3 M/H/X
LC-37AF3 M/H/X

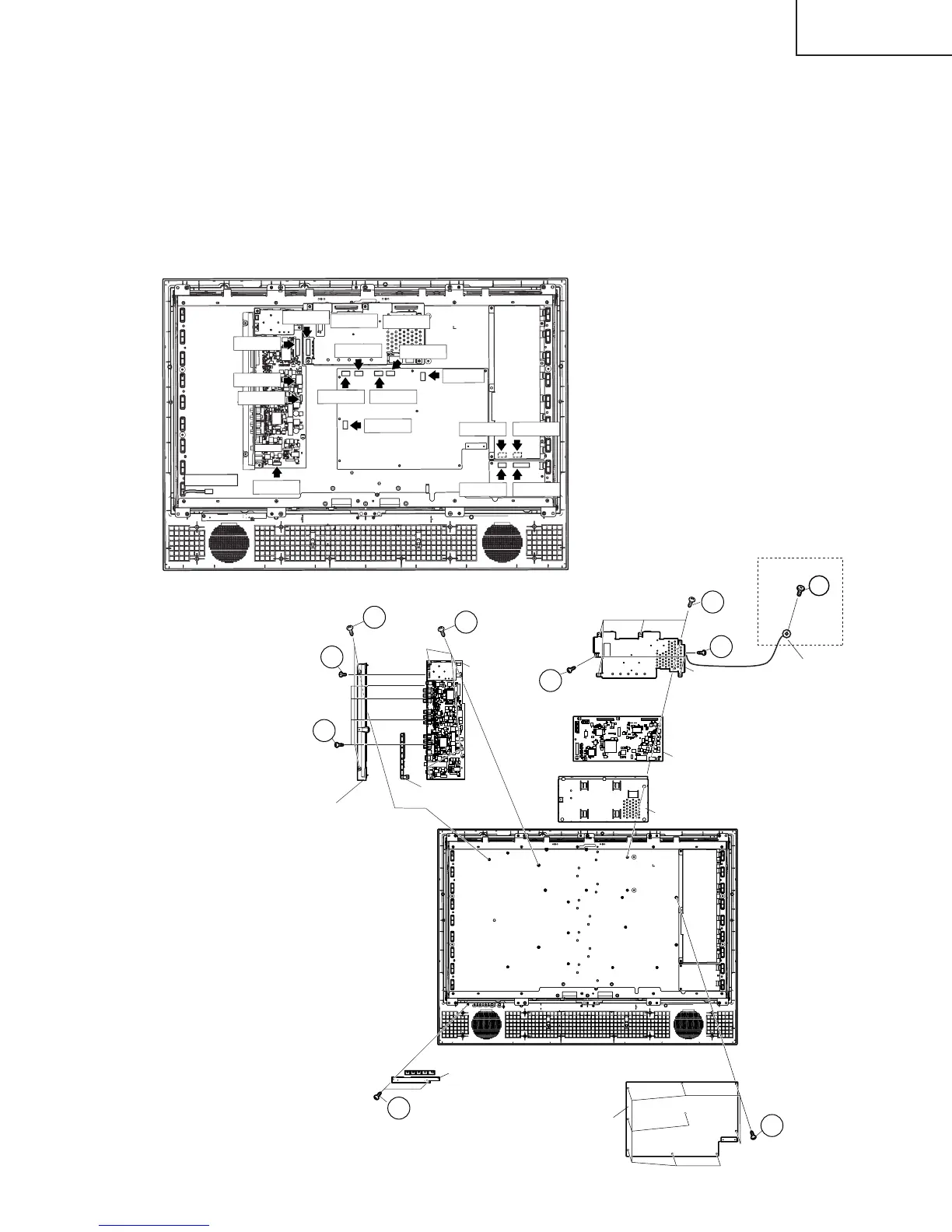

10.Unplug the FFC/FPC wires from SC4651, SC4652, and SC1202 - SC3701.
11. Unplug the connecting cables from these connectors: CN702, CN1701, CN1702, CN1703, CN1704, CN1705,
P5700, P1201, P3900 and INV-GND.
12.Remove the 9 lock screws 9 and detach the Power Unit.
13.LC-32AF3X:Remove the 6 lock screws 0 and detach the Main Unit and the Earth Wire.
Others: Remove the 5 lock screws 0 and conduct cloth (LC-37AF3X only). Detach the Main Unit.
14.Remove the 2 lock screws q and detach the Main Shield(Top) and Main Shield(Bottom) from Main Unit.
15.Remove the 2 lock screws w and detach the R/C, LED Unit.
16.Remove the 4 lock screws e and 2 lock screws r and detach the AV Unit.
17.Remove the 1 lock screw t and 4 lock screws y and detach the Chassis Frame and Tuneer Shiled from AV
Unit.
SC1202
P5700
P3900
CN1701
CN702
PN7523
PN7517
PN7622
PN7516
CN1703
CN1705
CN1704
SC3701
SC4651
CN1702
SC4652
P1201
INV-GND
Power Unit
R/C LED Unit
Main PWB
Main Shield(Bottom)
Main Shield(Top)
Chassis Frame
AV Unit
Tuner Shield
15
16
17
13
10
14
12
12
11
10
Earth Wire
(LC-32AF3X only)
