Sharp LC-26AF3 M/H/X - Page 18

18
LC-26AF3 M/H/X
LC-32AF3 M/H/X
LC-37AF3 M/H/X
CN7514
CN7513
CN7512
CN7510
CN7509
CN7507
CN7508
CN7506
CN7505
CN7514
CN7515
CN7513
CN7512
CN7511
CN7509
CN7507
CN7508
CN7506
CN7505
Inverter Unit (LC-32AF3H/M/X)
Inverter Unit (LC-37AF3H/M/X)
LCD Unit
18
18
19
19
19

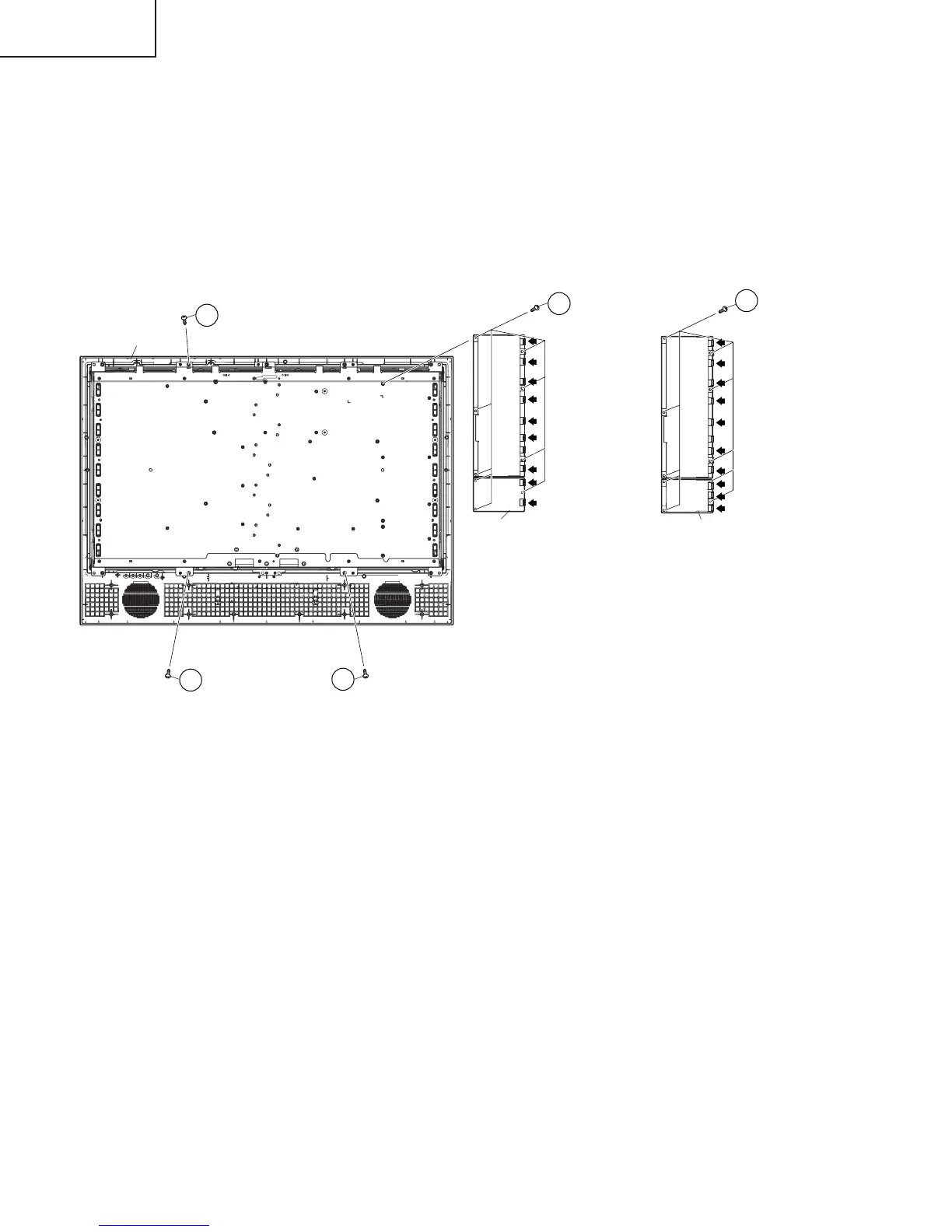

18.Loosen the 9 (LC-32AF3H/M/X) / 10 (LC-37AF3H/M/X) inverter unit ass’y fixing screws u, and unplug the
connecting cables from the 10 lamp wire connectors to remove the inverter unit and inverter shield.
19.Remove the 3 lock screws i and detach the LCD Unit.
