Sharp LC-26AF3 M/H/X User Manual

19
LC-26AF3 M/H/X
LC-32AF3 M/H/X
LC-37AF3 M/H/X
(LC-37AF3H/M/X)
(LC-32AF3H/M/X)
20.Remove the 4 LCD Panel unit lock screws o and 4 lock screws p, 4 lock screws a and detach the LCD Panel
unit. Detach the Difusion Sheets and Difusion Panel.(LC-32AF3H/M/X)
Remove the 4 LCD Panel unit lock screws o and 4 lock screws p, 13 lock screws a and detach the LCD
Panel unit. Detach the Difusion Sheets and Difusion Panel.(LC-37AF3H/M/X)
21.Remove the 6 Lamp Holder lock screws s and detach the Lamp Holders. Datach the Lamp Ass’y.

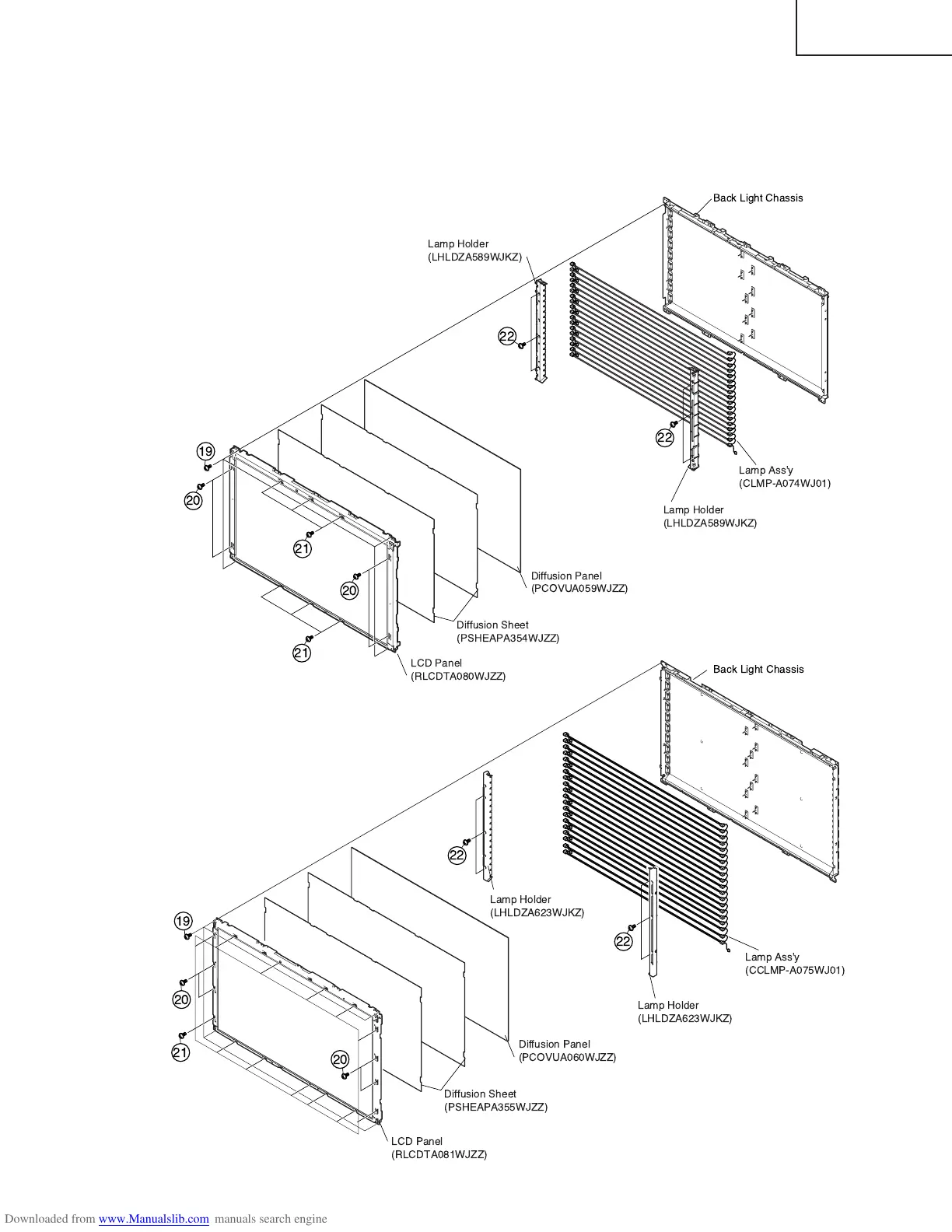

REMOVING OF LCD PANEL UNIT (LC-32/37AF3M/H/X)
Back Light Chassis
19
22
22
Diffusion Panel
(PCOVUA059WJZZ)
LCD Panel
(RLCDTA080WJZZ)
Lamp Holder
(LHLDZA589WJKZ)
Lamp Holder
(LHLDZA589WJKZ)
Lamp Ass'y
(CLMP-A074WJ01)
Diffusion Sheet
(PSHEAPA354WJZZ)
20
20
21
21


  
 

 ! "#$
"%&
 ! "#$
"%&
 ! '(
)*+,-
 .
."/%,,
 
012-
-3


-
